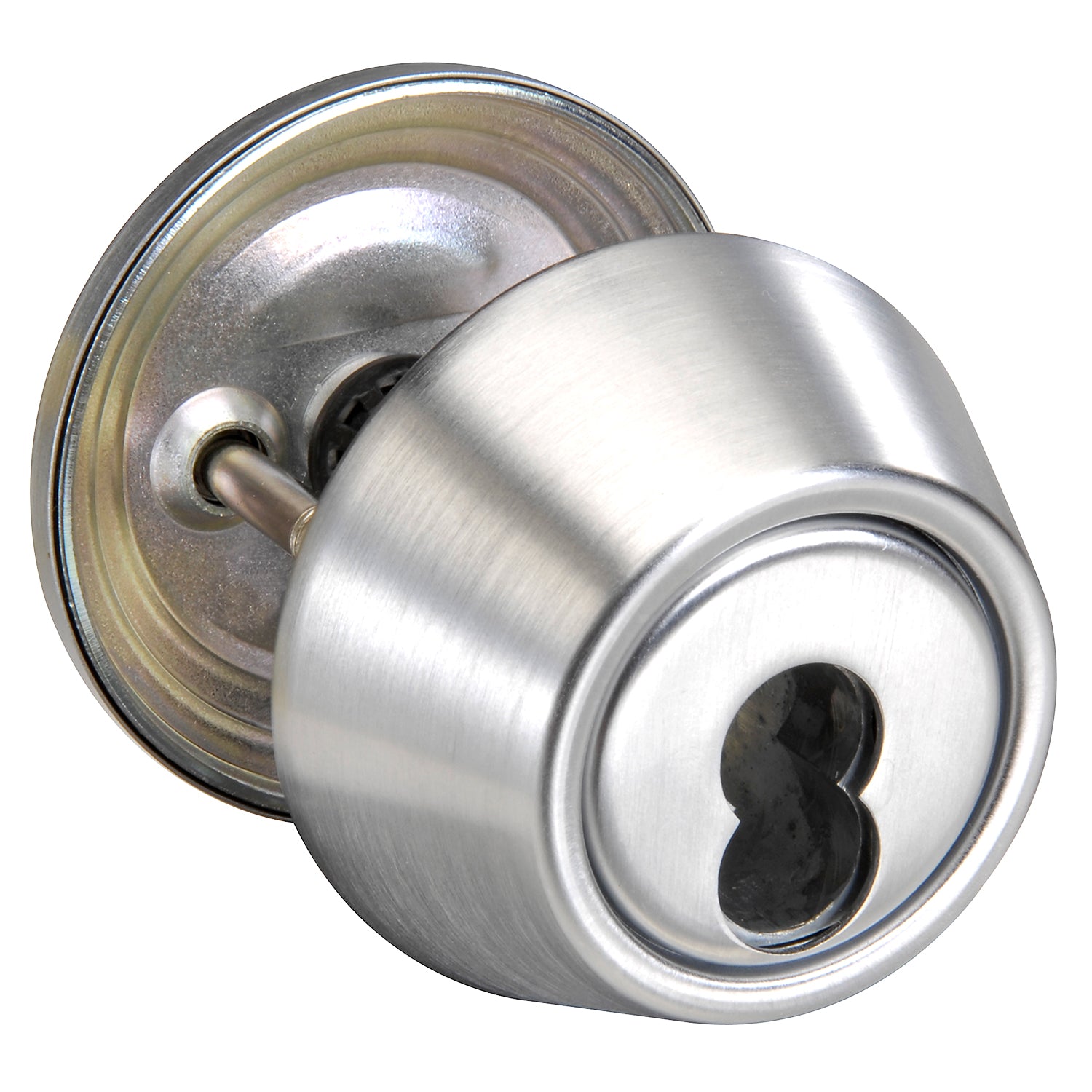

Yale D212 Single Cylinder Deadbolt, Grade 2, 2-3/4 Backset, 2-1/4 x 1 Face, Satin Chrome D212 626
Sale price
$81.22
Regular price $142.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
The Yale D212 is a single cylinder deadbolt for swinging doors. It has a 2-3/4 inch backset and a 2-1/4 by 1 inch face. It is a replacement for worn or damaged deadbolts in multifamily and commercial openings. Part D212 626 is the Grade 2, 2-3/4 Backset, 2-1/4 x 1 Face version in Satin Chrome.
- Grade 2
- 2-3/4 Backset
- 2-1/4 x 1 Face
- Finish 626 Satin Chrome
- Grade 2
- ANSI A156.5, Grade 2, UL Listed
- Part number D212 626
| PRODUCT SPECS | |
|---|---|
| SKU | D212 626 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Yale |
| Series | D200 Series |
| Certification | ANSI A156.5, Grade 2, UL Listed |
| Commercial/Residential | Commercial |
| Country of Origin | Mexico |
| Grade | Grade 2 |
| Product Warranty | 1 Year Warranty |
| UOM | 1 |
| UPC | 840067638811 |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Brass Bronze |
| Bore Hole Diameter (in) | 2-1/8" |
| Can Be Keyed | Yes |
| Cylinder Type | Conventional |
| Deadbolt Throw (in) | 1" |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 1-3/4" |
| Electronic | No |
| Function | Single Cylinder |
| Includes Cylinder(s)? | Yes |
| Interior/Exterior | Interior/Exterior |
| Keyway | E1R Para Keyway |
| Latch Bore Diameter (in) | 1" |
| Latch Description | Deadbolt |
| Latch Dimensions | 1" x 2-1/4" |
| Latch Number | D34 |
| Maximum Door Thickness (in) | 1-3/4" |
| Minimum Door Thickness (in) | 1-3/8" |
| Number of Keys | 2 |
| Number of Pins | 6 |
| Selling Quantity | 1 |
| Strike Description | Rectangle Strike |
| Strike Dimensions | 1-1/8" x 2-3/4" |
| Strike Number | D243 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 4.25 |
| Box Height (#) | 3.75 |
| Box Weight (#) | 2.4 |
| Box Width (#) | 2.75 |
Shipping and returns
Shipping. Free shipping on orders over $295. Orders under $295 ship for $19.95.
