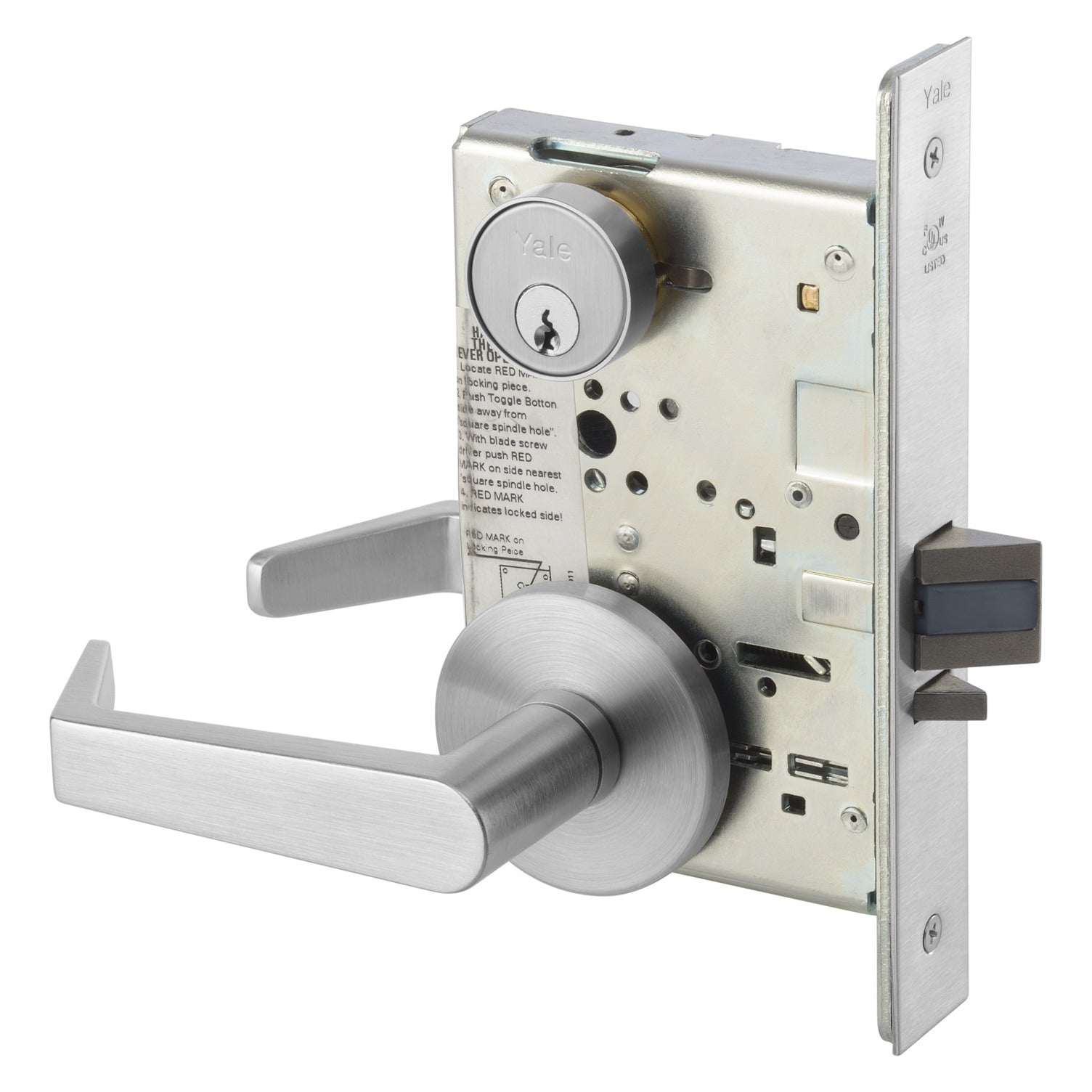

Yale AUR8805FL Grade 1 Storeroom Mortise Lock, Augusta Lever, CO Rose, Conventional Cylinder, Satin Chrome AUR8805FL 626
Sale price
$661.23
Regular price $1,156.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a Yale 8800 Series mortise lock with an Augusta lever and a conventional cylinder. It installs in a prepared mortise in the door edge and is built to ANSI/BHMA Grade 1 requirements. It suits commercial doors that need a heavy-duty mortise lock. Part AUR8805FL 626 is the Augusta Lever, CO Rose, Conventional Cylinder version in Satin Chrome.
- Augusta Lever
- CO Rose
- Conventional Cylinder
- Finish 626 Satin Chrome
- Grade 1
- Fire rated: Yes
- ANSI/BHMA Certified Grade 1, UL Listed
- Part number AUR8805FL 626
| PRODUCT SPECS | |
|---|---|
| SKU | AUR8805FL 626 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Yale |
| Series | 8800 Series |
| ADA | Yes |
| Certification | ANSI/BHMA Certified Grade 1, UL Listed |
| Commercial/Residential | Commercial |
| Fire Rated | Yes |
| Grade | Grade 1 |
| Product Warranty | 10 Year Warranty |
| UOM | 1 |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Armor Front Dimensions | 1-1/4" x 8" |
| Backset (in) | 2-3/4" |
| Base Material | Brass Bronze |
| Can Be Keyed | Yes |
| Cylinder Type | Conventional |
| Deadbolt Throw (in) | Not Applicable |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Electronic | No |
| Faceplate Dimensions | 1-1/8" x 8" |
| Function | Storeroom |
| Includes Cylinder(s)? | Yes |
| Interior/Exterior | Interior/Exterior |
| Keyway | E1R PARA Keyway |
| Latch Description | Dead Latch |
| Latch Throw (in) | 3/4" |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | Augusta |
| Maximum Door Thickness (in) | 1-3/4" |
| Minimum Door Thickness (in) | 1-3/4" |
| Pocket Dimensions | 6-5/8" X 4-1/2" |
| Projection (in) | 2-1/4" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Design | R |
| Rose/Escutcheon Dimensions (in) | 2-9/16" |
| Selling Quantity | 1 |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| Strike Number | 2815 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 6.75 |
| Box Height (#) | 9.875 |
| Box Weight (#) | 3.2 |
| Box Width (#) | 4.625 |
