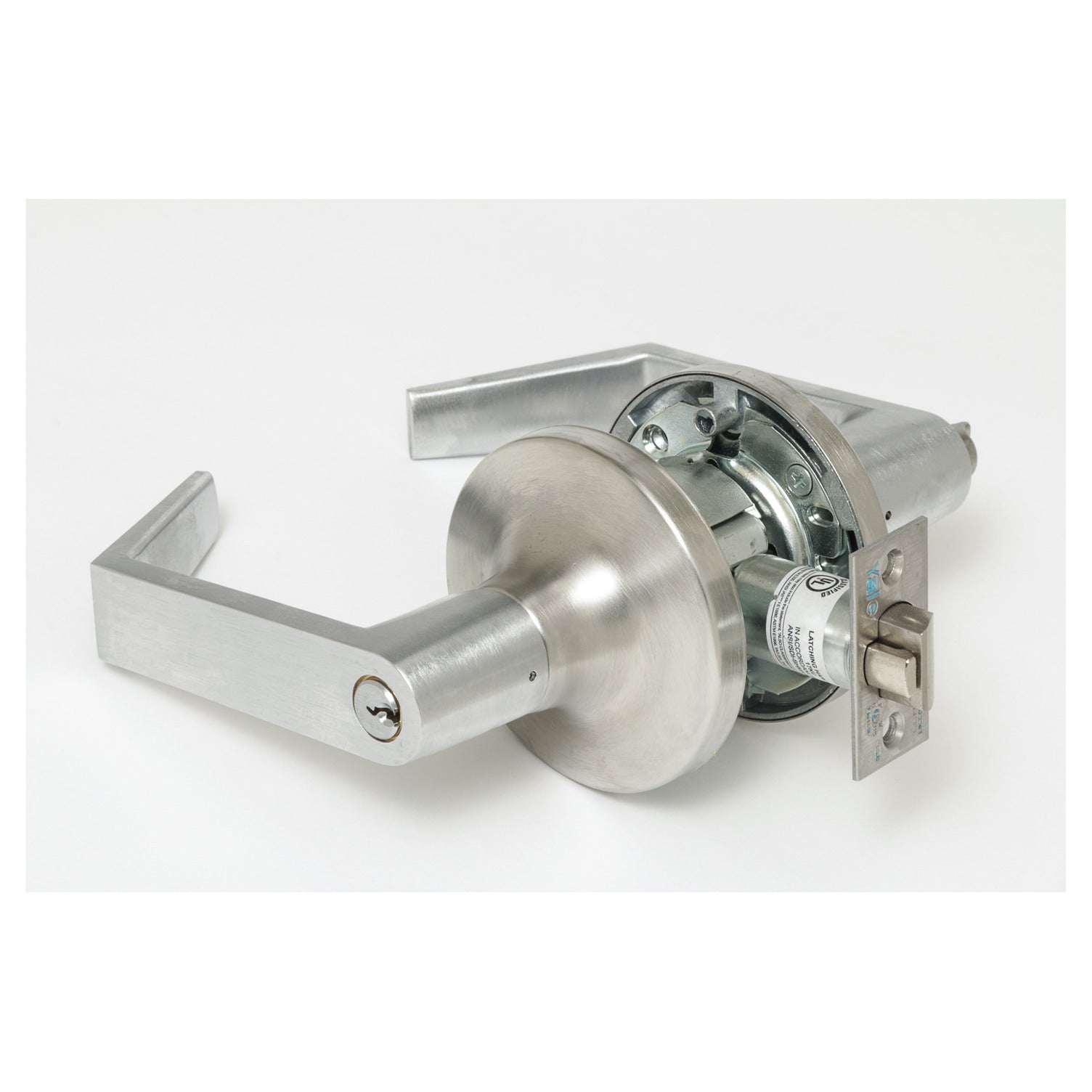

Yale AU5305LN Grade 2 Storeroom/Closet Cylindrical Lock, Augusta Lever, Conventional Cylinder, Satin Chrome AU5305LN 626
Sale price
$265.41
Regular price $464.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a Yale 5300LN Series cylindrical lock with an Augusta lever and a conventional cylinder. It mounts in a standard door bore and is made for commercial openings that need a Grade 2 lock. The lever design is non-handed, so one part fits doors of either hand. Part AU5305LN 626 is the Augusta Lever, Conventional Cylinder version in Satin Chrome.
- Augusta Lever
- Conventional Cylinder
- Finish 626 Satin Chrome
- Grade 2
- Fire rated: Yes
- ANSI A156.2, Series 4000, Grade 2, ANSI A117.1, UL Listed
- Part number AU5305LN 626
| PRODUCT SPECS | |
|---|---|
| SKU | AU5305LN 626 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Yale |
| Series | 5300LN Series |
| ADA | Yes |
| Certification | ANSI A156.2, Series 4000, Grade 2, ANSI A117.1, UL Listed |
| Commercial/Residential | Commercial |
| Fire Rated | Yes |
| Grade | Grade 2 |
| Product Warranty | 5 Year Warranty |
| UOM | 1 |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Brass Bronze |
| Bore Hole Diameter (in) | 2-1/8" |
| Can Be Keyed | Yes |
| Cylinder Type | Conventional |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/4" - 2" |
| Electronic | No |
| Function | Storeroom |
| Includes Cylinder(s)? | Yes |
| Keyway | E1R Keyway |
| Latch Bore Diameter (in) | 1" |
| Latch Description | Dead Latch |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 380BN |
| Latch Throw (in) | 1/2" |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | Augusta |
| Maximum Door Thickness (in) | 2" |
| Minimum Door Thickness (in) | 1-3/4" |
| Projection (in) | 3-1/2" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Design | Not Applicable |
| Rose/Escutcheon Dimensions (in) | 3-1/2" |
| Selling Quantity | 1 |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| Strike Number | 497 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 10 |
| Box Height (#) | 4 |
| Box Weight (#) | 5 |
| Box Width (#) | 7.5 |
