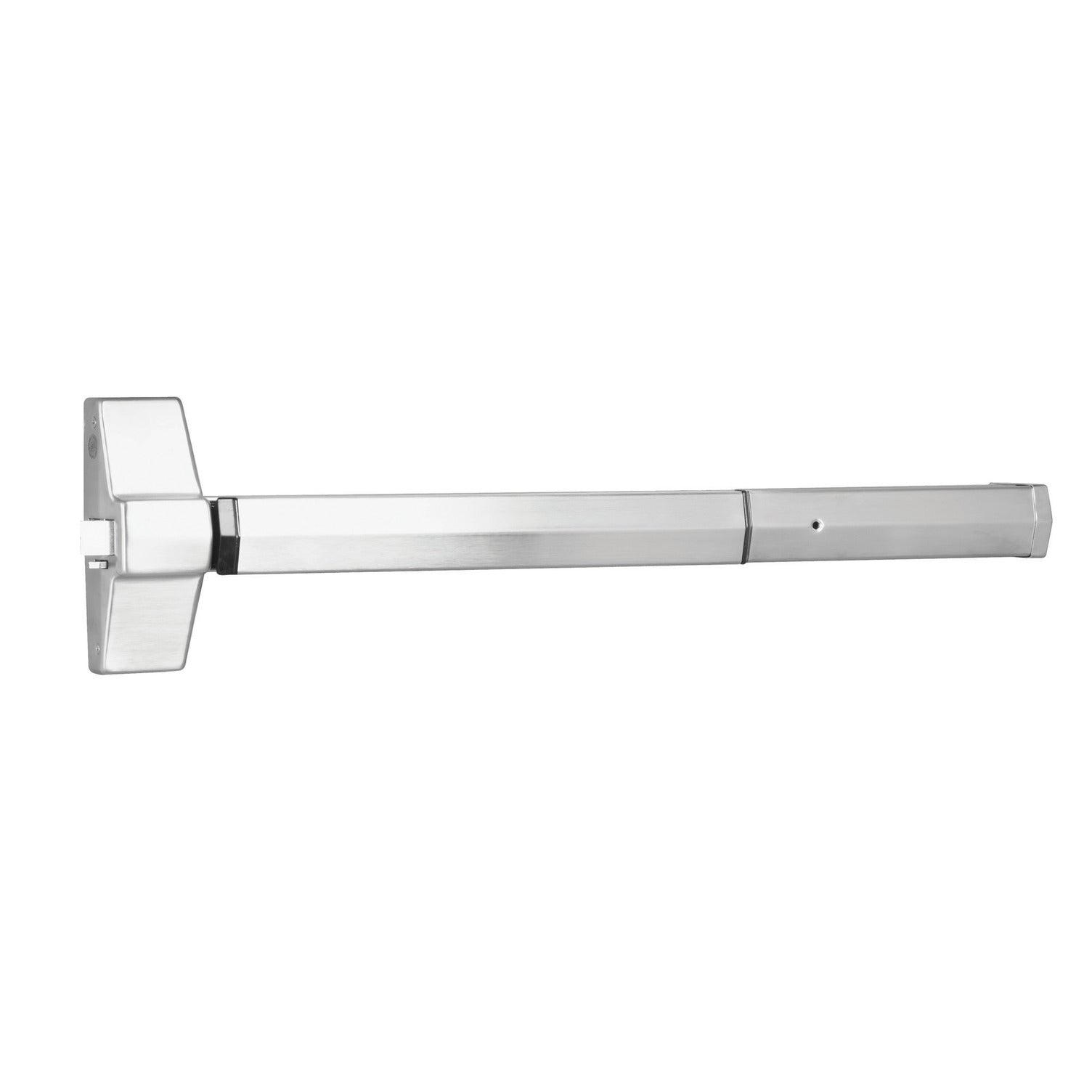

Yale 7100 Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36 Device, Less Trim, Hex Key Dogging, Satin Stainless Steel 7100 36 630
Sale price
$1,424.85
Regular price $2,491.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a surface-mounted rim exit device with a wide stile pushpad. It is built to ANSI A156.3 Grade 1 and is UL Listed. It mounts on the door face to give a secure, code-friendly way out of the opening. Part 7100 36 630 is the Wide Stile Pushpad, 36 Device, Less Trim, Hex Key Dogging version in Satin Stainless Steel.
- Wide Stile Pushpad
- 36 Device
- Less Trim
- Hex Key Dogging
- Finish 630 Satin Stainless Steel
- Grade 1
- ANSI A156.3, Grade 1, UL Listed
- Part number 7100 36 630
| PRODUCT SPECS | |
|---|---|
| SKU | 7100 36 630 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Yale |
| Series | 7000 Series |
| Certification | ANSI A156.3, Grade 1, UL Listed |
| Commercial/Residential | Commercial |
| Fire Rated | No |
| Grade | Grade 1 |
| Product Warranty | 5 Year Warranty |
| Type | Surface Exit Device |
| UOM | 1 |
| PRODUCT FINISH | |
|---|---|
| Finish | 630 |
| Finish Description | Stainless Steel |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Stainless Steel |
| Center Case Dimensions | 3-1/18" x 8-3/16" |
| Cylinder Type | Less Cylinder |
| Dogging Option | Yes |
| Dogging Type | Hex Key Dogging |
| Door Handing | Non-handed |
| Door Height (in) | Not Applicable |
| Door Material | Metal/Wood |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Door Width Maximum (#) | 36 |
| Door Width Minimum (#) | 30 |
| Electronic | No |
| End Cap Material | Metal |
| Function | Exit Only |
| Includes Cylinder(s)? | No |
| Keyway | Not Applicable |
| Latch Description | Dead Latch |
| Latch Throw (in) | 3/4" |
| Maximum Door Thickness (in) | 1-3/4" |
| Minimum Door Thickness (in) | 1-3/4" |
| Minimum Stile (in) | 4-1/2" |
| Projection (in) | 3-1/4" |
| Screw Pack | Machine Screws, Fasteners |
| Selling Quantity | 1 |
| Strike Description | Roller Strike |
| Strike Number | 757F |
| PRODUCT DIMENSIONS | |
|---|---|
| Product Width (in) | 36" |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 38 |
| Box Height (#) | 4 |
| Box Weight (#) | 14 |
| Box Width (#) | 9 |
