$408.43
SKU 2100-36 689
Skip to product information

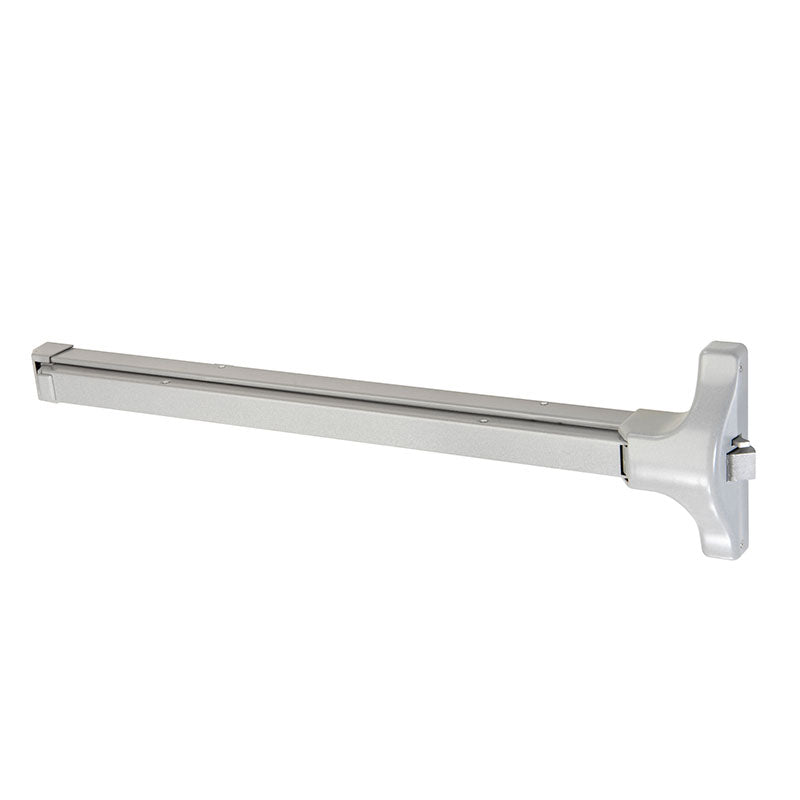

Yale 2100-36 Grade 1 Rim Exit Bar for Wide Stile Doors, Narrow Stile Pushpad, 36 Device, Exit Only, Aluminum Painted 2100-36 689
Sale price
$408.43
Regular price $683.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a rim exit device with a pushpad bar for doors with wide stiles. It mounts on the surface of the door and lets people leave through the opening with one push. It is rated ANSI A156.3 Grade 1. Part 2100-36 689 is the Narrow Stile Pushpad, 36 Device, Exit Only, Hex Key Dogging, Aluminum Painted version in Aluminum Painted.
- Narrow Stile Pushpad
- 36 Device
- Exit Only
- Hex Key Dogging
- Aluminum Painted
- Finish 689 Aluminum Painted
- Grade 1
- ANSI A156.3, Grade 1, UL Listed
- Part number 2100-36 689
| PRODUCT SPECS | |
|---|---|
| SKU | 2100-36 689 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Yale |
| Series | 2100 Series |
| Certification | ANSI A156.3, Grade 1, UL Listed |
| Commercial/Residential | Commercial |
| Fire Rated | No |
| Grade | Grade 1 |
| Product Warranty | 3 Year Warranty |
| Type | Surface Exit Device |
| UOM | 1 |
| PRODUCT FINISH | |
|---|---|
| Finish | 689 |
| Finish Description | Sprayed Aluminum |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Varies |
| Center Case Dimensions | 1-1/2" x 8" |
| Cylinder Type | Keyless |
| Dogging Option | Yes |
| Dogging Type | Hex Key Dogging |
| Door Handing | Non-handed |
| Door Height (in) | Not Applicable |
| Door Material | Metal/Wood |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Door Width Maximum (#) | 36 |
| Electronic | No |
| End Cap Material | Metal |
| Function | Exit Only |
| Includes Cylinder(s)? | No |
| Keyway | Not Applicable |
| Latch Description | Dead Latch |
| Latch Throw (in) | 3/4" |
| Maximum Door Thickness (in) | 1-3/4" |
| Minimum Door Thickness (in) | 1-3/4" |
| Minimum Stile (in) | 4-1/2" |
| Projection (in) | 2-1/2" |
| Screw Pack | Wood/Machine Screws |
| Selling Quantity | 1 |
| Strike Description | Roller Strike |
| Strike Number | 757 |
| PRODUCT DIMENSIONS | |
|---|---|
| Product Width (in) | 36" |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 37 |
| Box Height (#) | 3 |
| Box Weight (#) | 10.5 |
| Box Width (#) | 8.5 |
