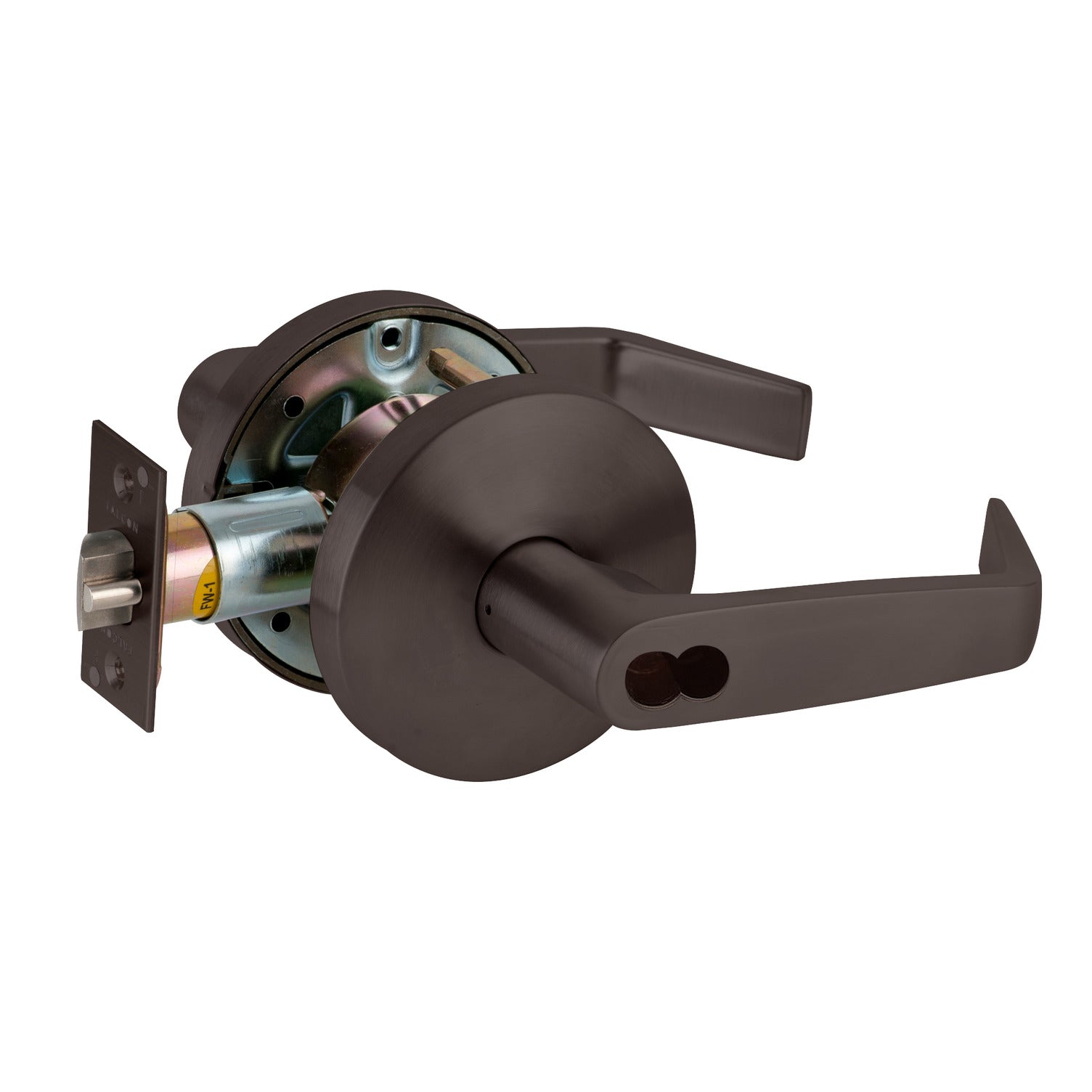

Falcon W581BD Grade 2 Storeroom Cylindrical Lock, SFIC Prep Less Core, Dane Lever, Standard Rose, Oil-Rubbed Bronze W581BD D 613
Sale price
$94.76
Regular price $197.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a Grade 2 storeroom cylindrical lock from the Falcon W Series. It is prepped for small format interchangeable cores (SFIC) and ships less the core. It suits storeroom and utility doors where the lock must be keyed for entry. Falcon is an Allegion brand. Part W581BD D 613 is the SFIC Prep Less Core, Dane Lever, Standard Rose version in Oil-Rubbed Bronze.
- SFIC Prep Less Core
- Dane Lever
- Standard Rose
- Finish 613 Oil-Rubbed Bronze
- Grade 2
- Fire rated: Yes
- Part number W581BD D 613
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Falcon |
| ADA | Yes |
| Commercial/Residential | Light Duty Commercial |
| Fire Rated | Yes |
| Grade | Grade 2 |
| Product Warranty | 10 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 613 |
| Finish Description | Oil Rubbed Bronze |
| TECHNICAL SPECS | |
|---|---|
| SKU | W581BD D 613 |
| Series | W Series |
| Main Category | Locksets |
| Sub-Category 1 | Cylindrical |
| Backset (#) | 2.75 |
| Base Material | Bronze |
| Bore Hole Diameter (#) | 2.125 |
| Can Be Keyed | Yes |
| Cylinder Type | SFIC Housing |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 1-3/4" |
| Electronic | No |
| Function | Storeroom |
| Keyway | Less Core |
| Latch Throw (#) | 0.5 |
| Latch Bore Diameter (#) | 1 |
| Latch Description | Dead Latch |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 30-197 |
| Maximum Door Thickness (#) | 1.75 |
| Minimum Door Thickness (#) | 1.375 |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| PRODUCT DIMENSIONS | |
|---|---|
| Projection (#) | 3.125 |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 7.25 |
| Box Height (#) | 6.75 |
| Box Weight (#) | 2.3 |
| Box Width (#) | 3.75 |
