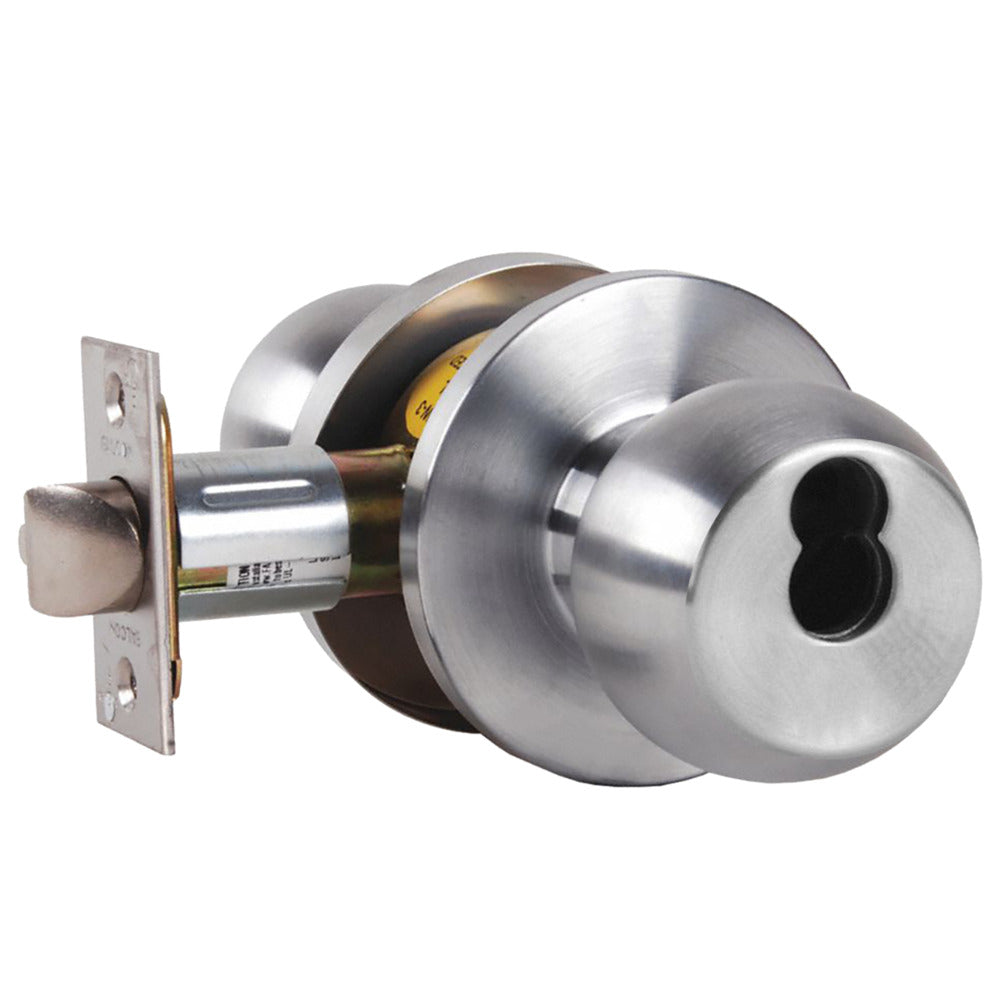

Falcon W511BD Grade 2 Entry/Office Cylindrical Lock, SFIC Prep Less Core, Hana Knob, Standard Rose, Satin Chrome W511BD HAN 626
Sale price
$49.54
Regular price $103.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
The Falcon W511BD is a Grade 2 entry/office cylindrical lock from the W Series. It is prepped for an SFIC core and ships less the core, so you supply the core you need. It fits standard cylindrical door preps on commercial and multifamily doors. Falcon is an Allegion brand. Part W511BD HAN 626 is the SFIC Prep Less Core, Hana Knob, Standard Rose version in Satin Chrome.
- SFIC Prep Less Core
- Hana Knob
- Standard Rose
- Finish 626 Satin Chrome
- Grade 2
- Fire rated: Yes
- Part number W511BD HAN 626
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Falcon |
| ADA | No |
| Commercial/Residential | Light Duty Commercial |
| Fire Rated | Yes |
| Grade | Grade 2 |
| Product Warranty | 10 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| SKU | W511BD HAN 626 |
| Series | W Series |
| Main Category | Locksets |
| Sub-Category 1 | Cylindrical |
| Backset (#) | 2.75 |
| Base Material | Brass Bronze |
| Bore Hole Diameter (#) | 2.125 |
| Can Be Keyed | Yes |
| Cylinder Type | SFIC Housing |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 1-3/4" |
| Electronic | No |
| Function | Entrance Office |
| Keyway | Less Core |
| Latch Throw (#) | 0.5 |
| Latch Bore Diameter (#) | 1 |
| Latch Description | Dead Latch |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 30-197 |
| Maximum Door Thickness (#) | 1.75 |
| Minimum Door Thickness (#) | 1.375 |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| PRODUCT DIMENSIONS | |
|---|---|
| Projection (#) | 2.563 |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 7.25 |
| Box Height (#) | 6.75 |
| Box Weight (#) | 2.3 |
| Box Width (#) | 3.75 |
