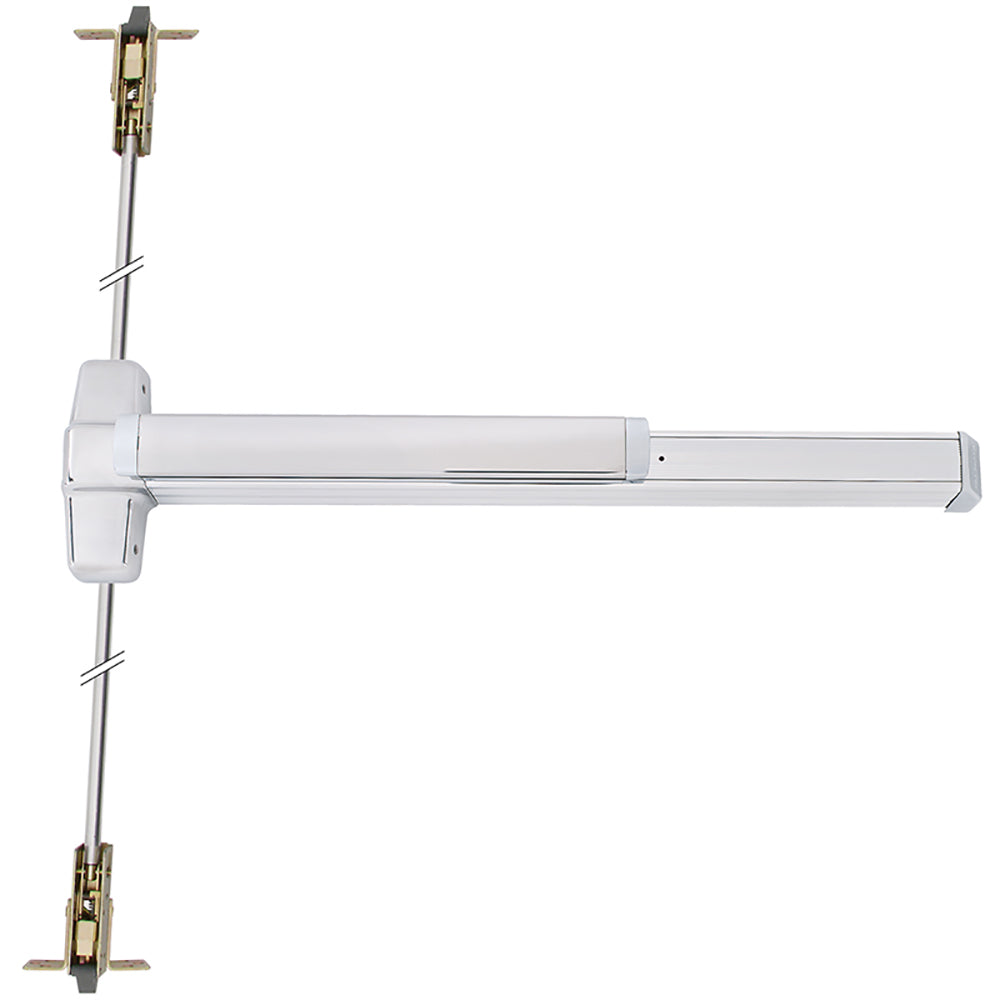

Von Duprin 9947EO Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36 Device, 80 to 100 Door Height, Satin Chrome 9947EO 3 26D
Sale price
$2,295.48
Regular price $3,478.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
The Von Duprin 9947EO is a concealed vertical rod exit device with a wide stile pushpad. It mounts on a door and lets people leave by pushing the bar, with the rods hidden inside the door. It is an exit only device without a trim. Von Duprin is an Allegion brand. Part 9947EO 3 26D is the Wide Stile Pushpad, 36 Device, 80 to 100 Door Height, Exit Only, Hex Key Dogging, Field Reversible version in Satin Chrome.
- Wide Stile Pushpad
- 36 Device
- 80 to 100 Door Height
- Exit Only
- Hex Key Dogging
- Field Reversible
- Finish 26D Satin Chrome
- Grade 1
- ANSI A156.3-2014, Grade 1
- Part number 9947EO 3 26D
| PRODUCT SPECS | |
|---|---|
| SKU | 9947EO 3 26D |
| Parent Manufacturer | Allegion |
| Manufacturer | Von Duprin |
| Series | 99 Series |
| Certification | ANSI A156.3-2014, Grade 1 |
| Commercial/Residential | Commercial |
| Country of Origin | United States |
| Fire Rated | No |
| Grade | Grade 1 |
| Product Warranty | 3 Year Warranty |
| Type | Concealed Vertical Rod Exit Device |
| UOM | 1 |
| PRODUCT FINISH | |
|---|---|
| Finish | US26D |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Brass Bronze |
| Center Case Dimensions | 8" x 2-3/4" x 2-3/8" |
| Cylinder Type | Keyless |
| Dogging Option | Yes |
| Dogging Type | Hex Key Dogging |
| Door Handing | Non-handed |
| Door Height (in) | 84" |
| Door Material | Metal/Wood |
| Door Range (Thickness) | 1-3/4" - 2-1/8" |
| Door Width Maximum (#) | 36 |
| Door Width Minimum (#) | 28 |
| Electronic | No |
| End Cap Material | Cast Zinc |
| Function | Exit Only |
| Includes Cylinder(s)? | No |
| Keyway | Not Applicable |
| Latch Description | Top - Bottom Latchbolts |
| Latch Throw (in) | 5/8" |
| Maximum Door Thickness (in) | 2-1/8" |
| Minimum Door Thickness (in) | 1-3/4" |
| Minimum Stile (in) | 3-3/4" |
| Projection (in) | 3-13/16" |
| Screw Pack | Machine Screws |
| Selling Quantity | 1 |
| Strike Description | Solid Catch Strike |
| Strike Number | 338/385A |
| PRODUCT DIMENSIONS | |
|---|---|
| Product Width (in) | 36" |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 36.75 |
| Box Height (#) | 10.5 |
| Box Weight (#) | 17 |
| Box Width (#) | 5 |
Shipping and returns
Shipping. Free shipping on orders over $295. Orders under $295 ship for $19.95.
