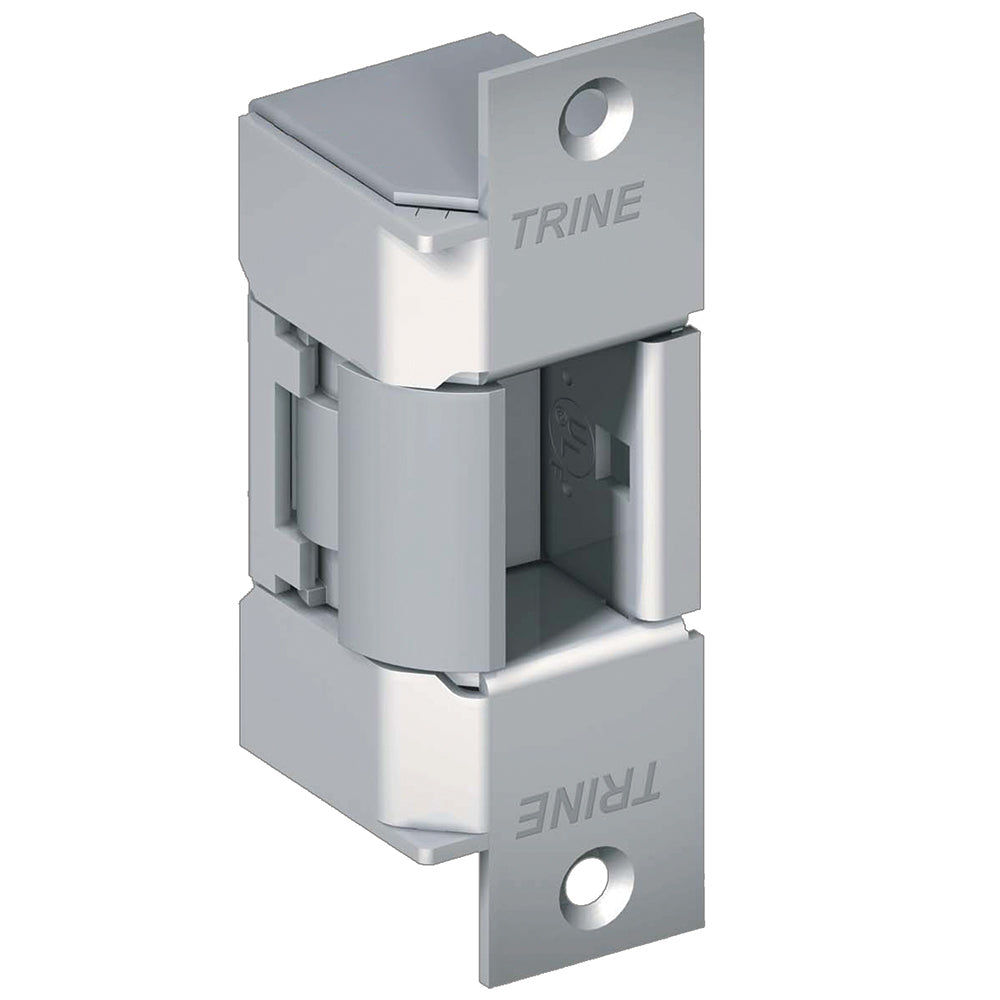

Trine EN400-24DC-RH-US32D
  • Trine EN400-24DC-RH-US32D
EN400-24DC-RH-US32D
TrineSKU EN400-24DC-RH-US32D

EN400-24DC-RH-US32D

$311.49  $489.00

Free shipping on orders over $295.

  • Veteran-owned
  • Since 1989
  • Member of NARPM

Overview
PRODUCT SPECS
SKU EN400-24DC-RH-US32D
Parent Manufacturer Not Applicable
Manufacturer Trine
Series EN Series
Application For Cylindrical, Mortise and Gate Locksets without Deadbolt
Certification ANSI A156.31, Grade 1, UL 1034, UL 294
Commercial/Residential Commercial
Country of Origin United States
Fire Rated No
Grade Grade 1
Product Warranty 1 Year Warranty
UOM 1
PRODUCT FINISH
Finish US32D
Finish Description Stainless Steel
TECHNICAL SPECS
Base Material Stainless Steel
Current 150mA @ 24 VDC Current
Door Handing Right Hand
Door Range (Thickness) -
Electronic Yes
Frame Material Metal/Wood
FS/FSE Mode Fail Safe/Fail Secure
Interior/Exterior Exterior
Latch Throw (in) 3/4"
Resistance (Olm) 164. Ohms @ 24 VDC
Selling Quantity 1
Static Holding Strength (lbs) 2000
Strike Dimensions 1-1/4" x 4-7/8"
Voltage 24 VDC Voltage
PRODUCT DIMENSIONS
Dimensions 1-1/4" x 4-3/32"
PACKAGE DIMENSIONS
Box Depth (#) 7.5
Box Height (#) 3.5
Box Weight (#) 1.5
Box Width (#) 2.5
