SDC 423U Illuminated Exit Push Button with Adjustable Electronic Timer, Single Gang, Dull Stainless 423U
Sale price
$119.34
Regular price $170.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview

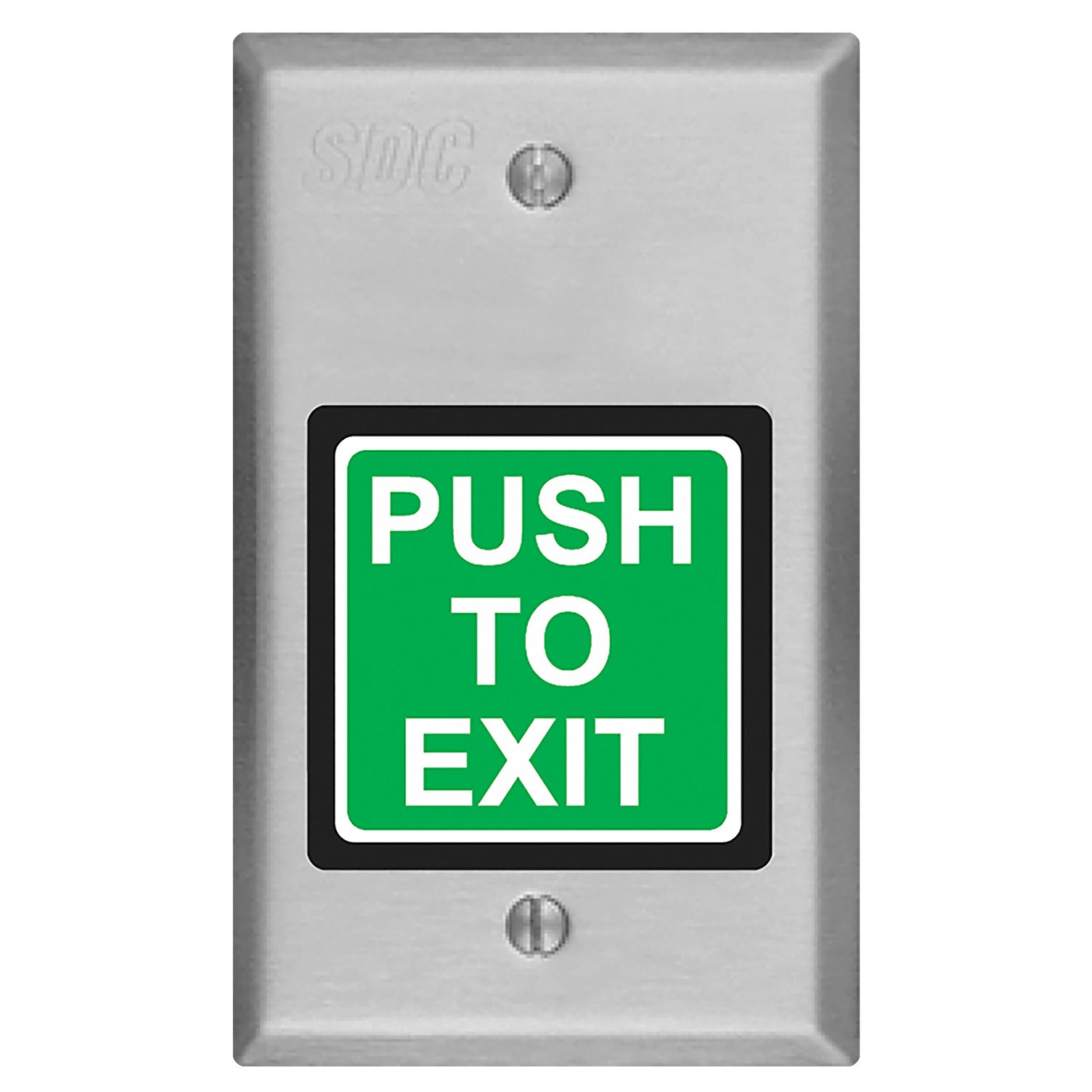

The 423U is an SDC illuminated push to exit button with an adjustable electronic timer. It has a dull stainless single gang faceplate and a 2 inch lighted button, with green and red lenses included. It runs on 12 or 24 VDC and has DPDT contacts.
- SDC 420 series
- 423 = electronic timer, adjustable
- U = 630 dull stainless faceplate
- Single gang 2-7/8 x 4-1/2 in, 20 gauge stainless
- 2 in illuminated button, green and red lenses included
- Push to exit sign
- 12/24 VDC +/-10%
- DPDT, 3 A at 30 VDC resistive
- 20 AWG wire leads
| PRODUCT SPECS | |
|---|---|
| SKU | 423U |
| Manufacturer | SDC |
| Series | 420 Series |
| Application | For use to Control the Ingress or Egress of a Door |
| Product Warranty | 5 year Warranty |
| Type | Push to Exit |
| PRODUCT FINISH | |
|---|---|
| Finish | 630 |
| Finish Description | Stainless Steel |
| TECHNICAL SPECS | |
|---|---|
| Base Material | Stainless Steel |
| Current | 2A Timer Contact Rating |
| Door Range (Thickness) | - |
| Engraving | Push to Exit |
| Includes | 1-60 Second Time Delay |
| LED Indicators | No |
| Mount | Single Gang Mount |
| Screw Pack | Mounting Screws |
| Switch Type | DPDT Contact |
| Voltage | 12/24 VDC Voltage |
| PRODUCT DIMENSIONS | |
|---|---|
| Dimensions | 2-7/8" x 4-1/2" |
| PACKAGE DIMENSIONS |
|---|
