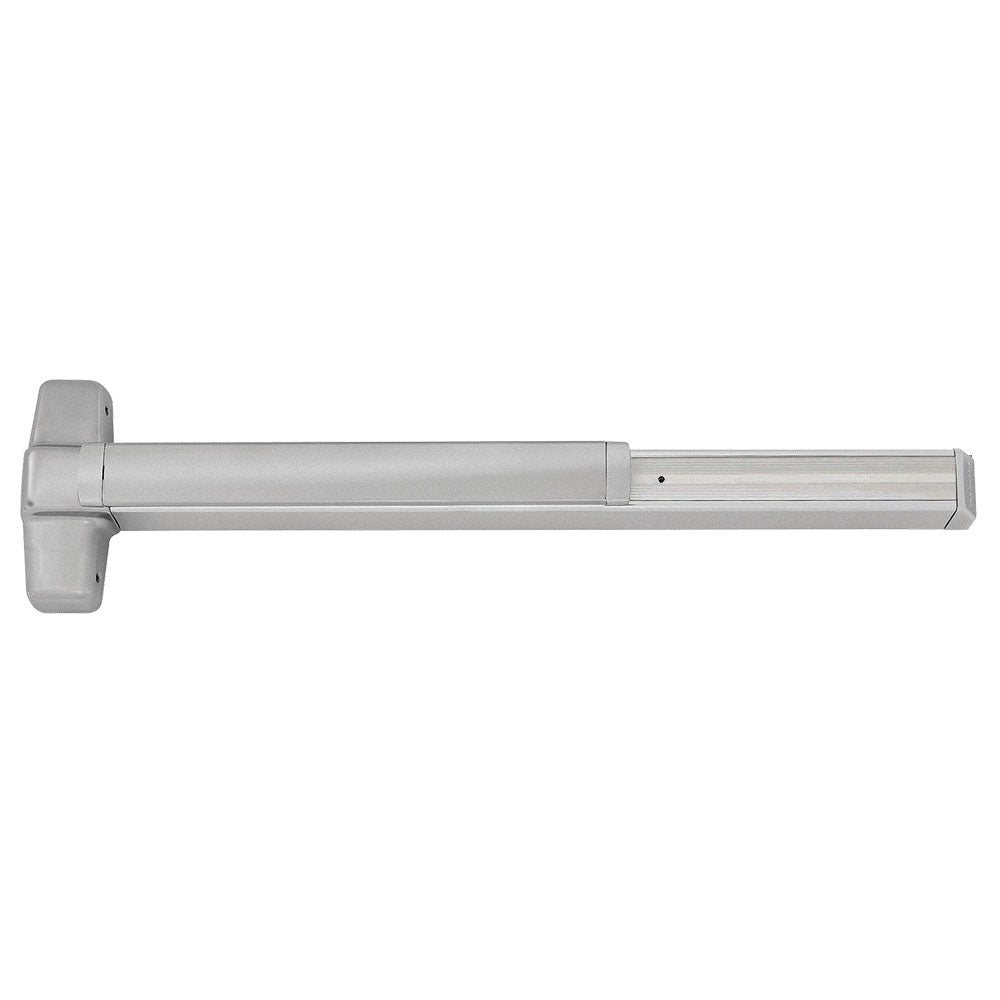

The RX9949K is a concealed vertical cable exit device for doors that need a push bar with the rod hardware hidden inside the door. It is made for door heights from 82 to 96 inches and is field reversible. Von Duprin is an Allegion brand. Part RX9949K-DT-F 4 US28 is the 48 Fire-rated Device, 82 to 96 Door Height, Dummy Function, Knob with Escutcheon, Request to Exit Switch, Hex Dogging, Field Reversible version in Satin Aluminum Clear Anodized.

• 48 Fire-rated Device
• 82 to 96 Door Height
• Dummy Function
• Knob with Escutcheon
• Request to Exit Switch
• Hex Dogging
• Field Reversible
• Finish US28 Satin Aluminum Clear Anodized
• Grade 1
• Fire rated: Yes {Variable}
• Part number RX9949K-DT-F 4 US28
