$369.56
SKU L180 X 1-3/4 DOOR 626
Skip to product information

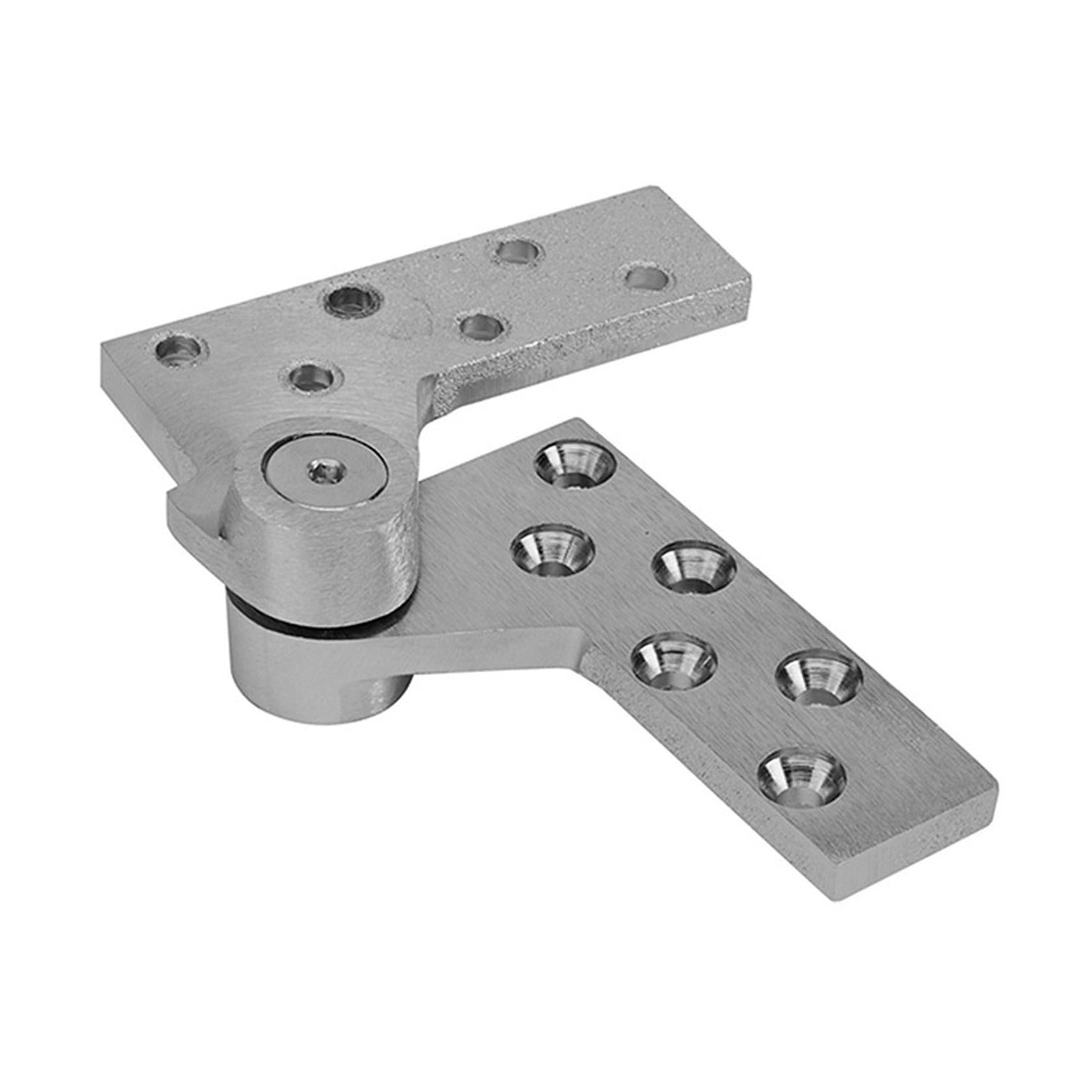

Rixson L180 3/4 Offset Hung Top Pivot, 1-3/4 Door, Satin Chromium L180 X 1-3/4 DOOR 626
Sale price
$369.56
Regular price $618.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
The Rixson L180 is a 3/4 inch offset top pivot for hung doors. It sets in the top of the door and frame and carries the door's swing at the top corner. We list it for a range of door thicknesses. Part L180 X 1-3/4 DOOR 626 is the 1-3/4 Door version in Satin Chromium.
- 1-3/4 Door
- Finish 626 Satin Chromium
- ANSI A156.4, UL Listed
- Part number L180 X 1-3/4 DOOR 626
| PRODUCT SPECS | |
|---|---|
| SKU | L180 X 1-3/4 DOOR 626 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Rixson |
| Series | Not Applicable |
| Application | For use with (Lead-Lined) Offset Hung Pivot Applications |
| Certification | ANSI A156.4, UL Listed |
| Commercial/Residential | Commercial |
| Grade | Not Graded |
| Product Warranty | 2 Year Warranty |
| Type | 3/4" Offset Top Pivot Hinge |
| UOM | 1 |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Base Material | Brass Bronze |
| Door Handing | Non-handed |
| Door Range (Thickness) | - |
| Electronic | No |
| Includes | Not Applicable |
| Maximum Door Weight (lbs) | Not Applicable |
| Option 1 | Lead Lined |
| Screw Pack | Wood/Machine Screws |
| Selling Quantity | 1 |
| Sub-Type | Top |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 6.75 |
| Box Height (#) | 2.5 |
| Box Weight (#) | 2.1 |
| Box Width (#) | 3 |
