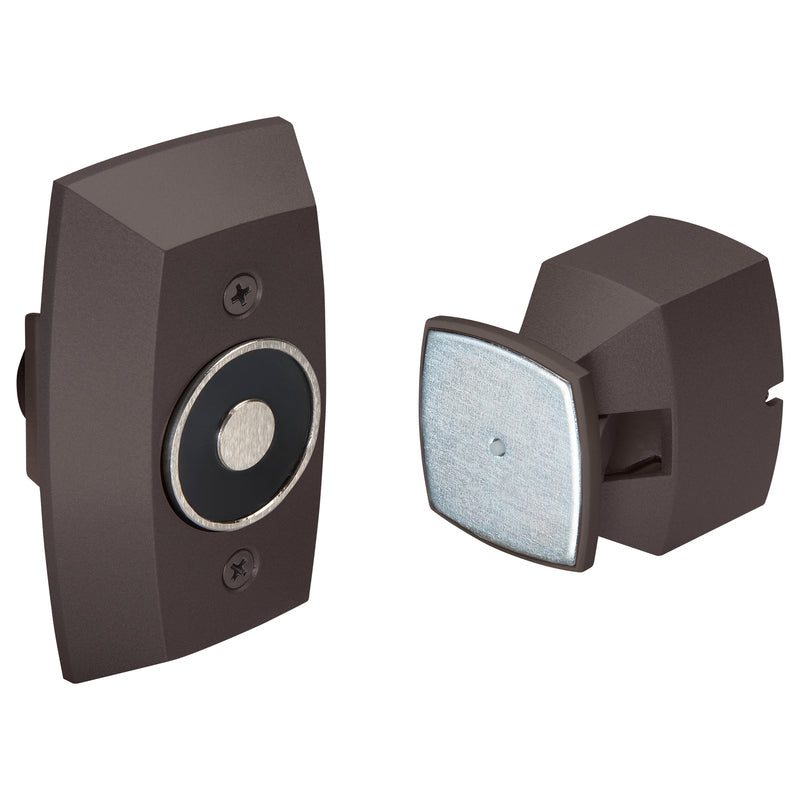

Rixson 998M Electromagnetic Door Holder/Release, Floor Mounted, Dark Bronze Painted 998M 690
Sale price
$477.20
Regular price $798.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is an electromagnetic door holder and release that holds a door open and lets it close when power is released. It is used on doors that need to stay open during normal use and close on a signal. The 998M is listed to ANSI A156.15 and UL 10C, Grade 1. Part 998M 690 is the Floor Mounted version in Dark Bronze Painted.
- Floor Mounted
- Finish Dark Bronze Painted
- Grade 1
- ANSI A156.15, UL 10C Listed, Grade 1
- Part number 998M 690
| PRODUCT SPECS | |
|---|---|
| SKU | 998M 690 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Rixson |
| Series | 900 Series |
| Certification | ANSI A156.15, UL 10C Listed, Grade 1 |
| Grade | Grade 1 |
| Product Warranty | 2 Year Warranty |
| UPC | 840067611296 |
| PRODUCT FINISH | |
|---|---|
| Finish | 690 |
| Finish Description | Sprayed Statuary Bronze |
| TECHNICAL SPECS | |
|---|---|
| Base Material | Varies |
| Current | 40mA @ 12 VDC, 20mA @ 24 VAC/VDC, 20mA @ 120 VAC Current |
| Door Range (Thickness) | - |
| FS/FSE Mode | Fail Safe |
| Holding Force (lbs) | 40 |
| Includes | Housing, Cover and Armature |
| Mount | Recessed Wall Mount |
| Projection (in) | 3-5/8" |
| Screw Pack | Machine Screws |
| Voltage | 12 VDC, 24 VAC/VDC, 120 VAC Voltage |
| PRODUCT DIMENSIONS | |
|---|---|
| Dimensions | 2-3/4" x 4-5/8" |
| PACKAGE DIMENSIONS |
|---|
