$477.20
SKU 994M 689
Skip to product information

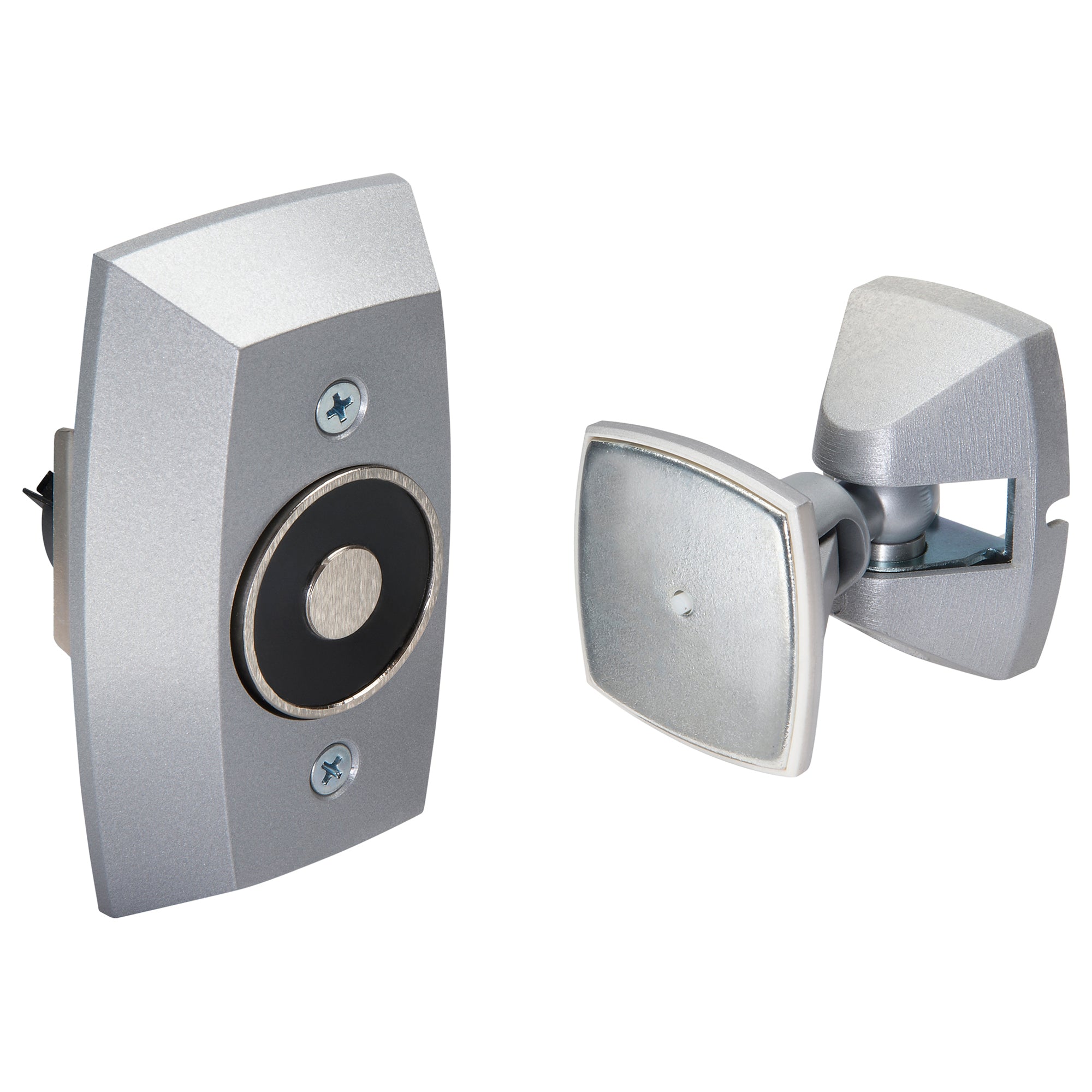

Rixson 994M Electromagnetic Door Holder/Release, Wall Mounted Adjustable Armature, Aluminum Painted 994M 689
Sale price
$477.20
Regular price $798.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a wall mounted electromagnetic door holder and release with an adjustable armature. It holds a door open and releases it when power is removed. Rixson 994M is listed to ANSI A156.15 and UL 10C, Grade 1. Part 994M 689 is the Wall Mounted Adjustable Armature version in Aluminum Painted.
- Wall Mounted Adjustable Armature
- Finish 689 Aluminum Painted
- Grade 1
- ANSI A156.15, UL 10C Listed, Grade 1
- Part number 994M 689
| PRODUCT SPECS | |
|---|---|
| SKU | 994M 689 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Rixson |
| Series | 900 Series |
| Certification | ANSI A156.15, UL 10C Listed, Grade 1 |
| Grade | Grade 1 |
| Product Warranty | 2 Year Warranty |
| UPC | 840067611210 |
| PRODUCT FINISH | |
|---|---|
| Finish | 689 |
| Finish Description | Sprayed Aluminum |
| TECHNICAL SPECS | |
|---|---|
| Base Material | Varies |
| Current | 40mA @ 12 VDC, 20mA @ 24 VAC/VDC, 20mA @ 120 VAC Current |
| Door Range (Thickness) | - |
| FS/FSE Mode | Fail Safe |
| Holding Force (lbs) | 40 |
| Includes | Housing, Cover and Armature |
| Mount | Recessed Wall Mount |
| Projection (in) | 3-3/4" |
| Screw Pack | Machine Screws |
| Voltage | 12 VDC, 24 VAC/VDC, 120 VAC Voltage |
| PRODUCT DIMENSIONS | |
|---|---|
| Dimensions | 2-3/4" x 4-5/8" |
| PACKAGE DIMENSIONS |
|---|
