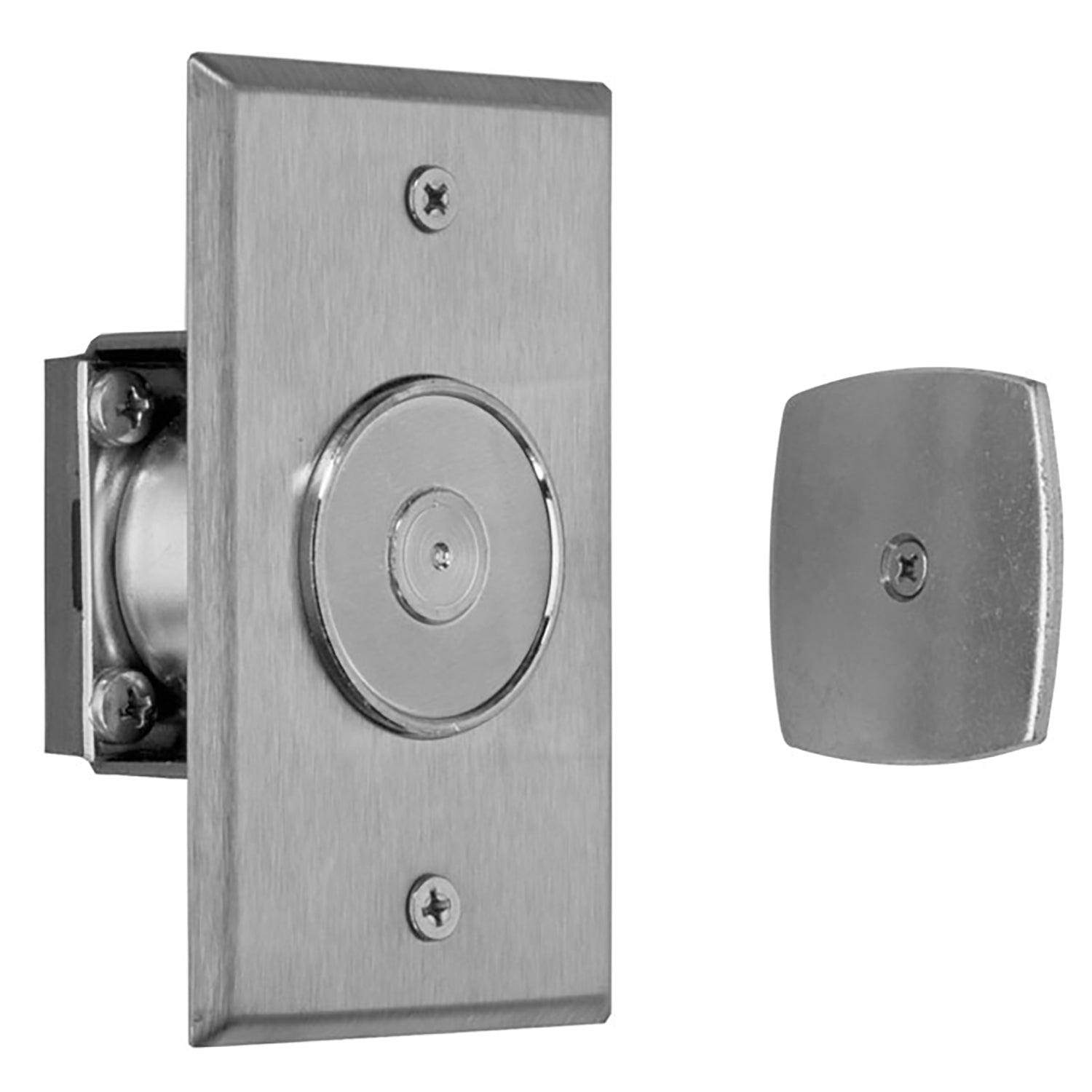

Rixson 989 Electromagnetic Door Holder/Release, Low Projection Wall, Aluminum Painted 989 689
Sale price
$432.95
Regular price $724.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is an electromagnetic door holder and release with a low projection wall mount. It holds a door open and releases it when power is removed. It is used on doors that need to stay open during normal use and close on demand. Part 989 689 is the Low Projection Wall version in Aluminum Painted.
- Low Projection Wall
- Finish 689 Aluminum Painted
- Grade 1
- ANSI A156.15, UL 10C Listed, Grade 1
- Part number 989 689
| PRODUCT SPECS | |
|---|---|
| SKU | 989 689 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Rixson |
| Series | 900 Series |
| Certification | ANSI A156.15, UL 10C Listed, Grade 1 |
| Grade | Grade 1 |
| Product Warranty | 2 Year Warranty |
| UPC | 840067611180 |
| PRODUCT FINISH | |
|---|---|
| Finish | 689 |
| Finish Description | Sprayed Aluminum |
| TECHNICAL SPECS | |
|---|---|
| Base Material | Varies |
| Current | 40mA @ 12 VDC, 20mA @ 24 VAC/VDC, 20mA @ 120 VAC Current |
| Door Range (Thickness) | - |
| FS/FSE Mode | Fail Safe |
| Holding Force (lbs) | 40 |
| Includes | Housing, Cover and Armature |
| Mount | Low Projection Wall Mount |
| Projection (in) | 7/16" |
| Screw Pack | Machine Screws |
| Voltage | 12 VDC, 24 VAC/VDC, 120 VAC Voltage |
| PRODUCT DIMENSIONS | |
|---|---|
| Dimensions | 2-3/4" x 4-1/2" |
| PACKAGE DIMENSIONS |
|---|
