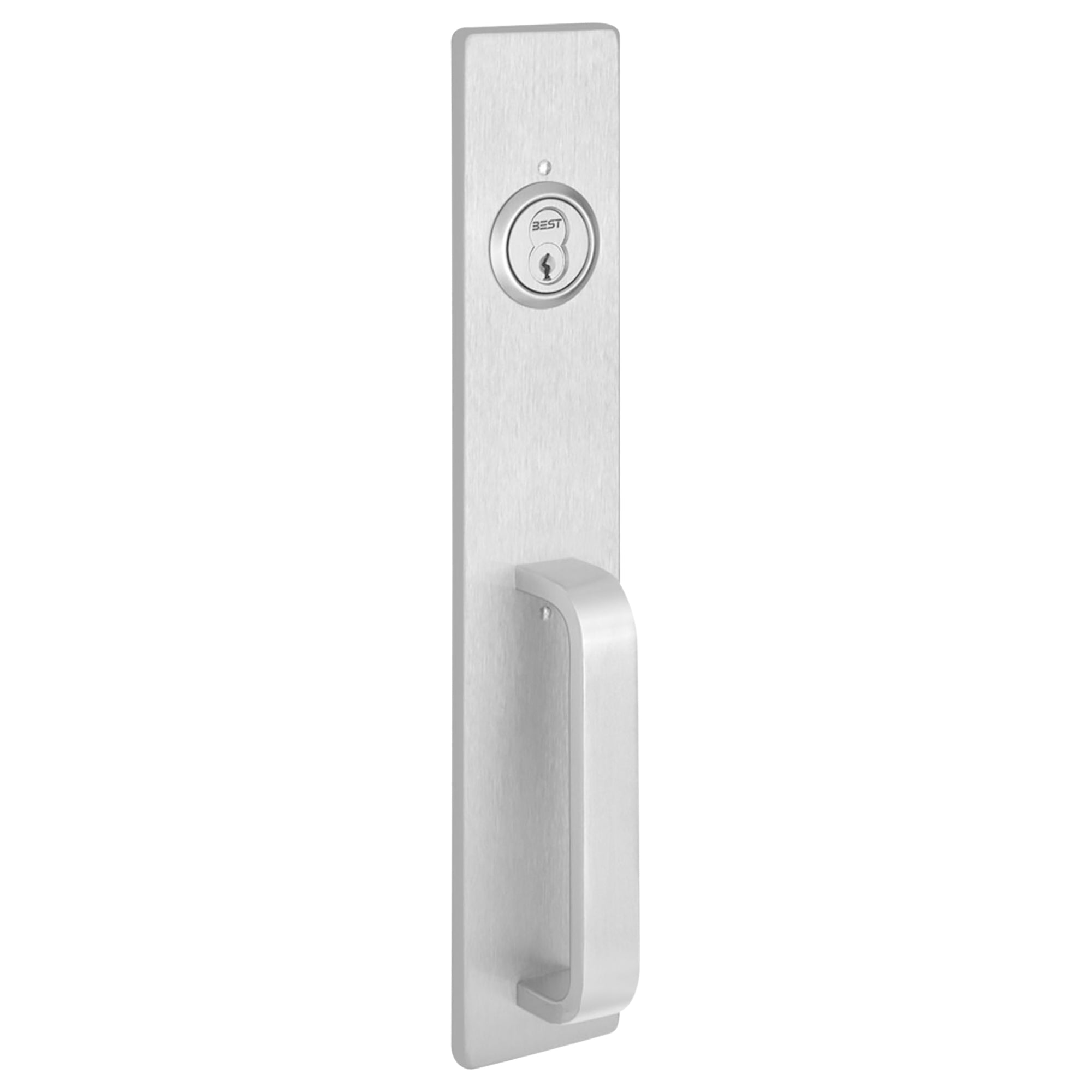

Precision 1703A Apex and Olympian Series Wide Stile Trim, Key Retracts Latchbolt, A Design Pull, Satin Stainless Steel 1703A 630
Sale price
$316.94
Regular price $530.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is wide stile exit device trim with an A Design pull, made for Precision Apex and Olympian Series exit devices. It is installed on the outside of a door fitted with a compatible exit device, so users can pull the door open from that side. The key retracts the latchbolt. Part 1703A 630 is the Key Retracts Latchbolt, A Design Pull version in Satin Stainless Steel.
- Key Retracts Latchbolt
- A Design Pull
- Finish 630 Satin Stainless Steel
- Grade 1
- ANSI A156.3, Grade 1, UL Listed
- Part number 1703A 630
| PRODUCT SPECS | |
|---|---|
| SKU | 1703A 630 |
| Parent Manufacturer | DormaKaba |
| Manufacturer | Precision |
| Series | 2000 Series |
| Application | For use with Precision 2000 Series Exit Device |
| Certification | ANSI A156.3, Grade 1, UL Listed |
| Commercial/Residential | Commercial |
| Country of Origin | United States |
| Grade | Grade 1 |
| Product Warranty | 5 Year Warranty |
| UOM | 1 |
| PRODUCT FINISH | |
|---|---|
| Finish | 630 |
| Finish Description | Stainless Steel |
| TECHNICAL SPECS | |
|---|---|
| Base Material | Stainless Steel |
| Cylinder Type | Less Cylinder |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/4" - 2-1/4" |
| Electronic | No |
| Function | Night Latch |
| Includes Cylinder(s)? | No |
| Keyway | Not Applicable |
| Lever/Knob/Pull | Pull |
| Lever/Knob/Pull Design | A |
| Maximum Door Thickness (in) | 2-1/4" |
| Minimum Door Thickness (in) | 1-3/4" |
| Projection (in) | 2-1/8" |
| Rose/Escutcheon | Escutcheon |
| Rose/Escutcheon Dimensions (in) | 2-3/4" x 15" |
| Selling Quantity | 1 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 15.5 |
| Box Height (#) | 3.75 |
| Box Weight (#) | 2.7 |
| Box Width (#) | 3 |
