Features

• Mechanical, keyless deadlocking spring latch lock
• Automatically locks when door is closed
• One user code with thousands of possible combinations
• Comes standard adjustable latch 2 3/8″-2 3/4″
• Changeable Handing
• Covers a standard 2 1/8″ hole
• Easy to change code

Options

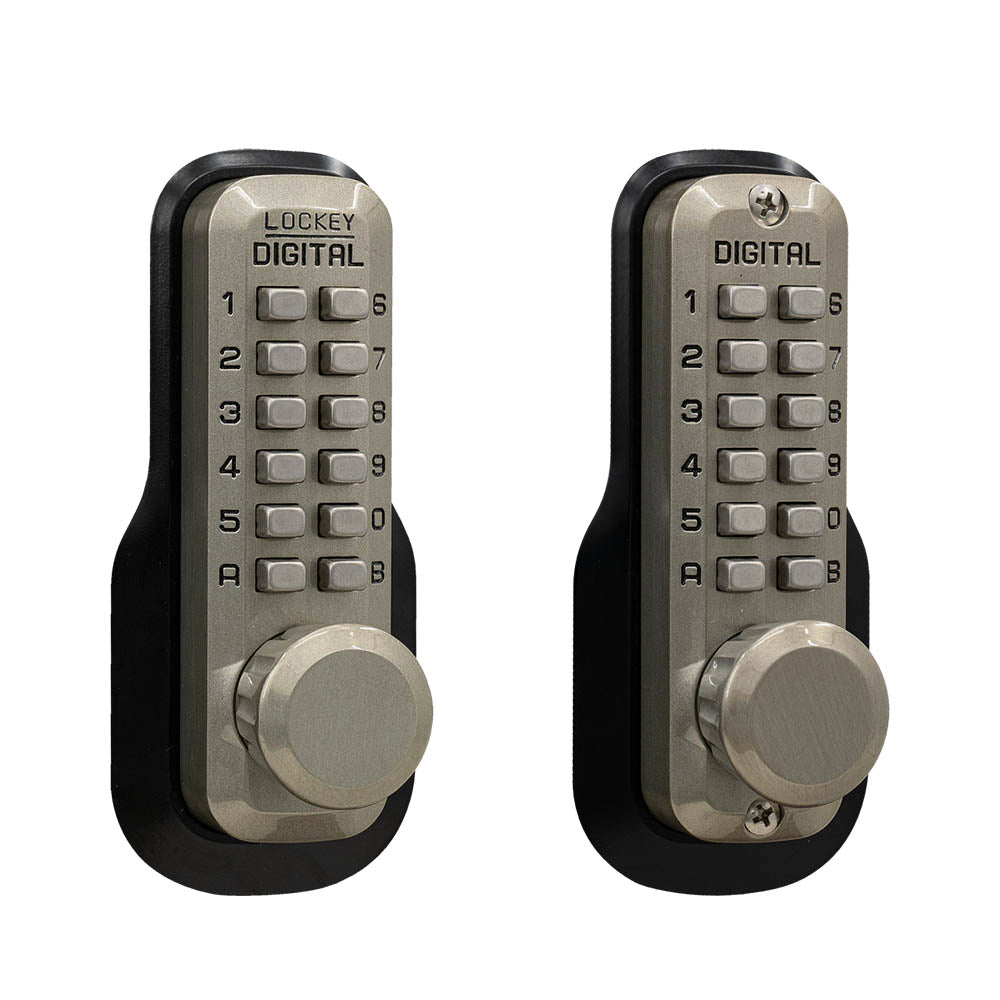

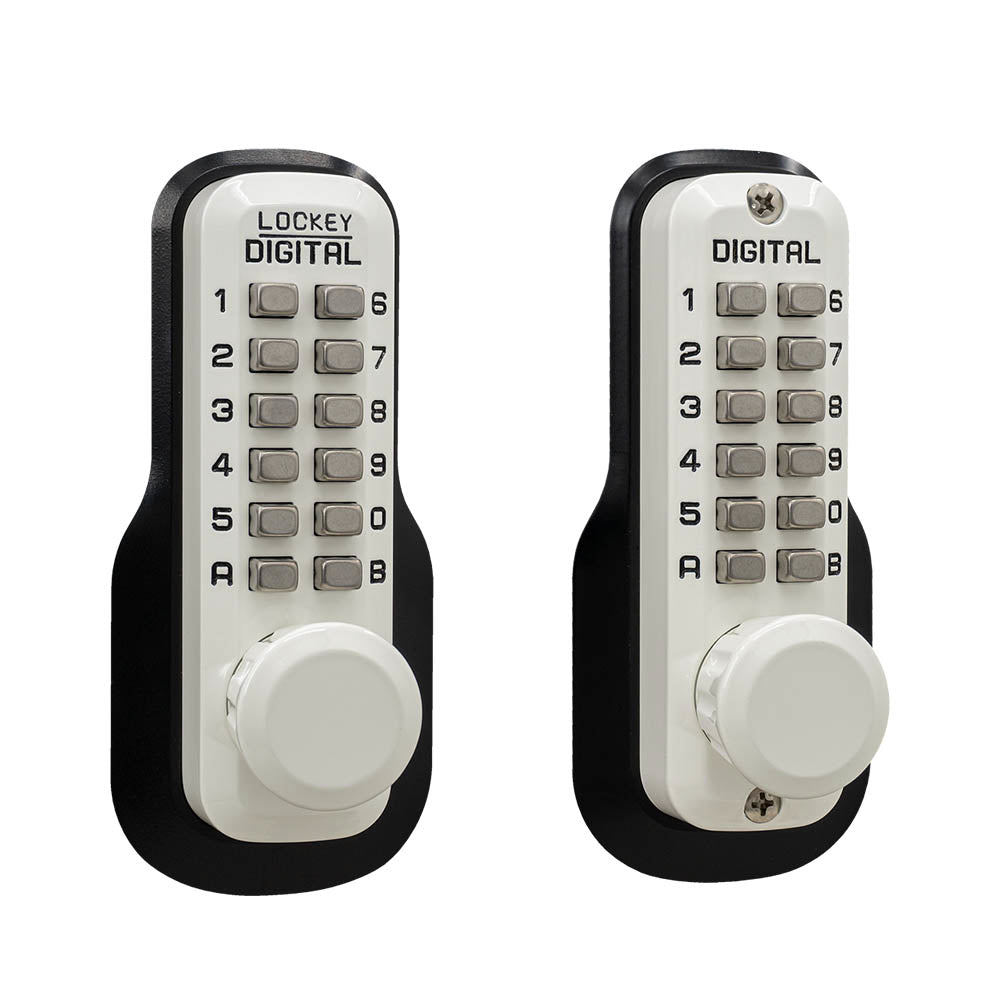

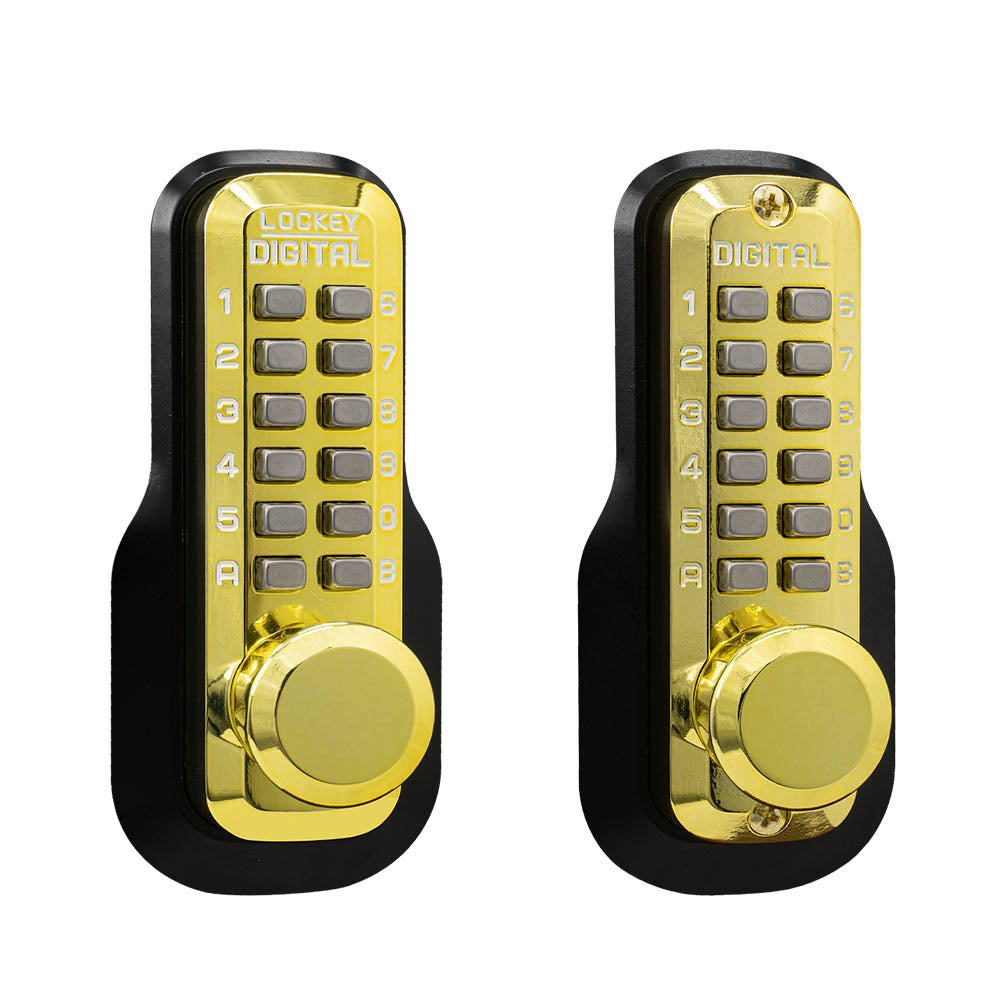

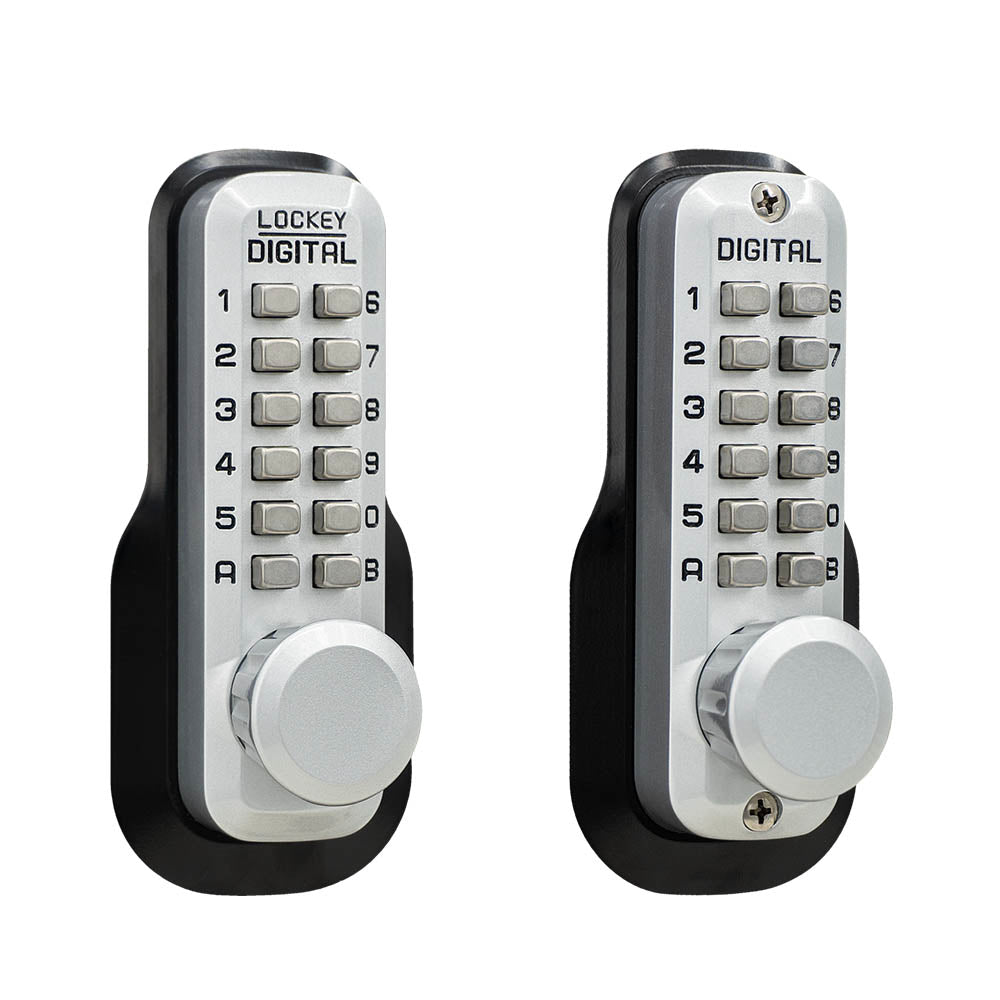

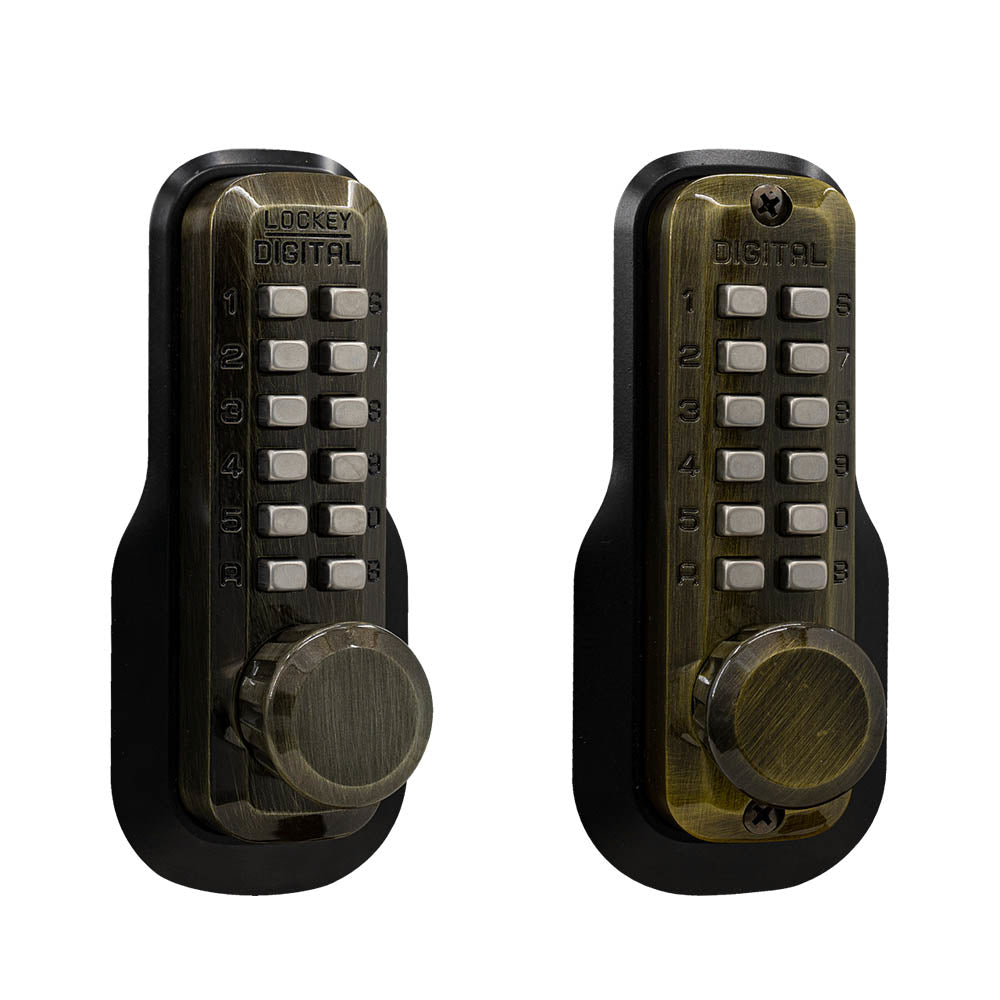

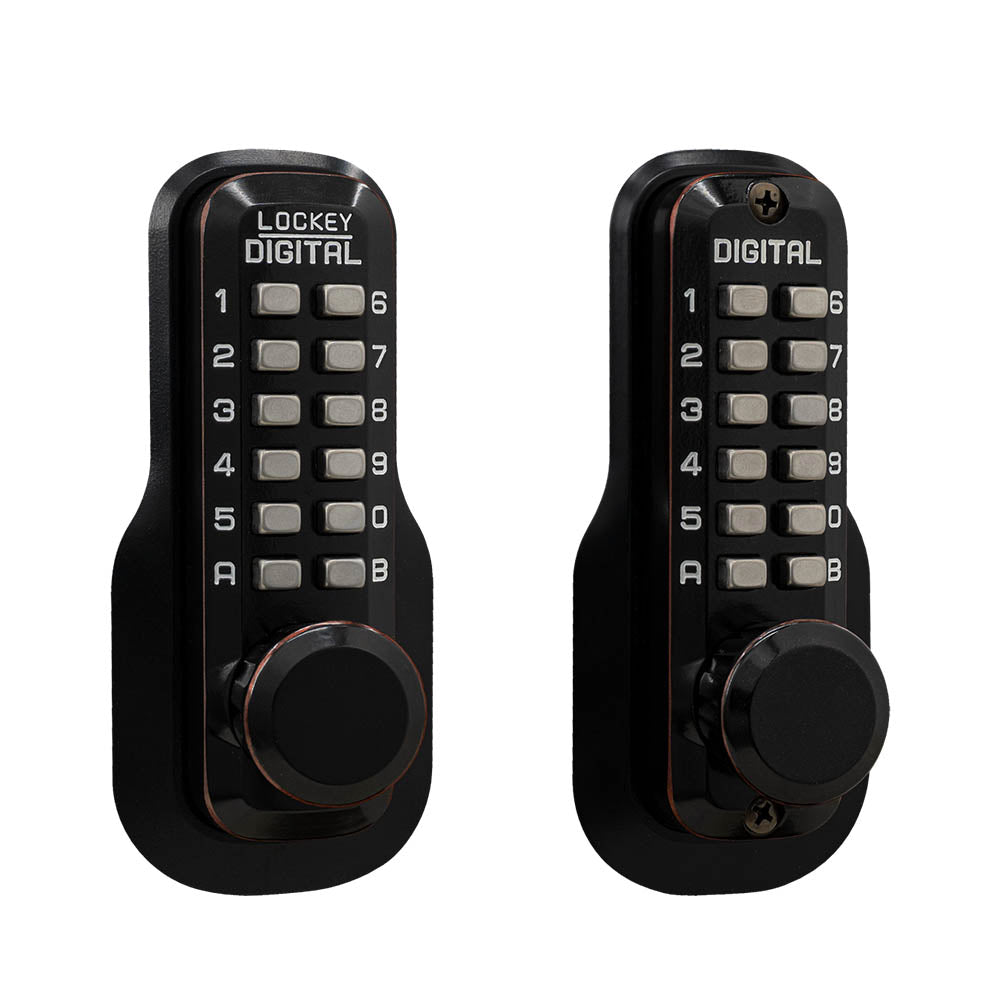

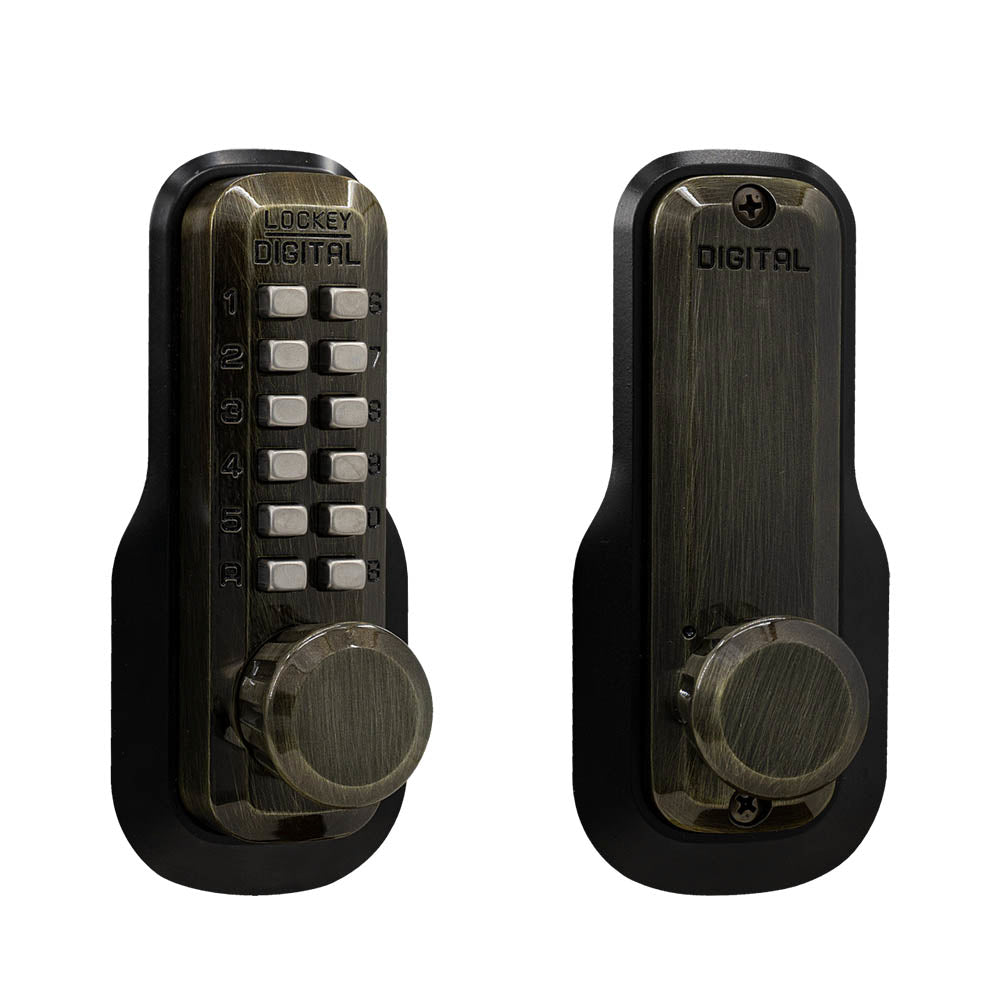

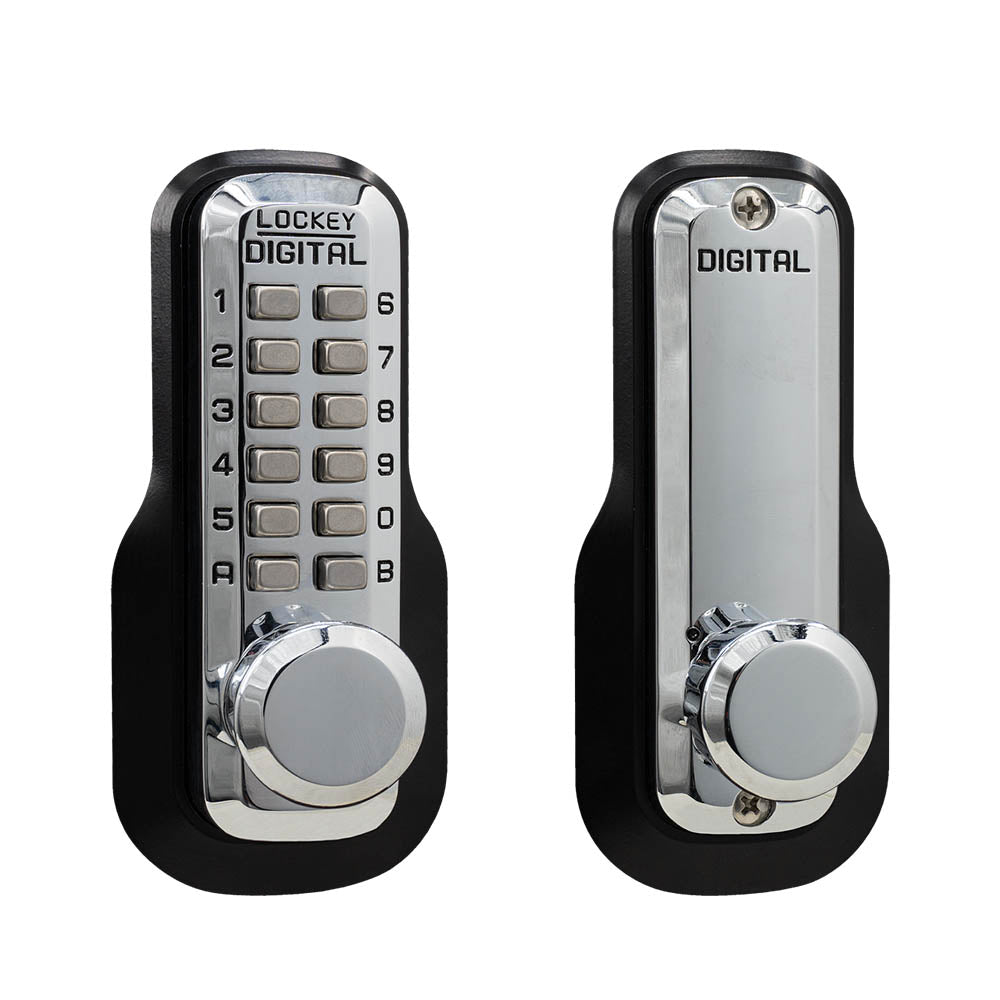

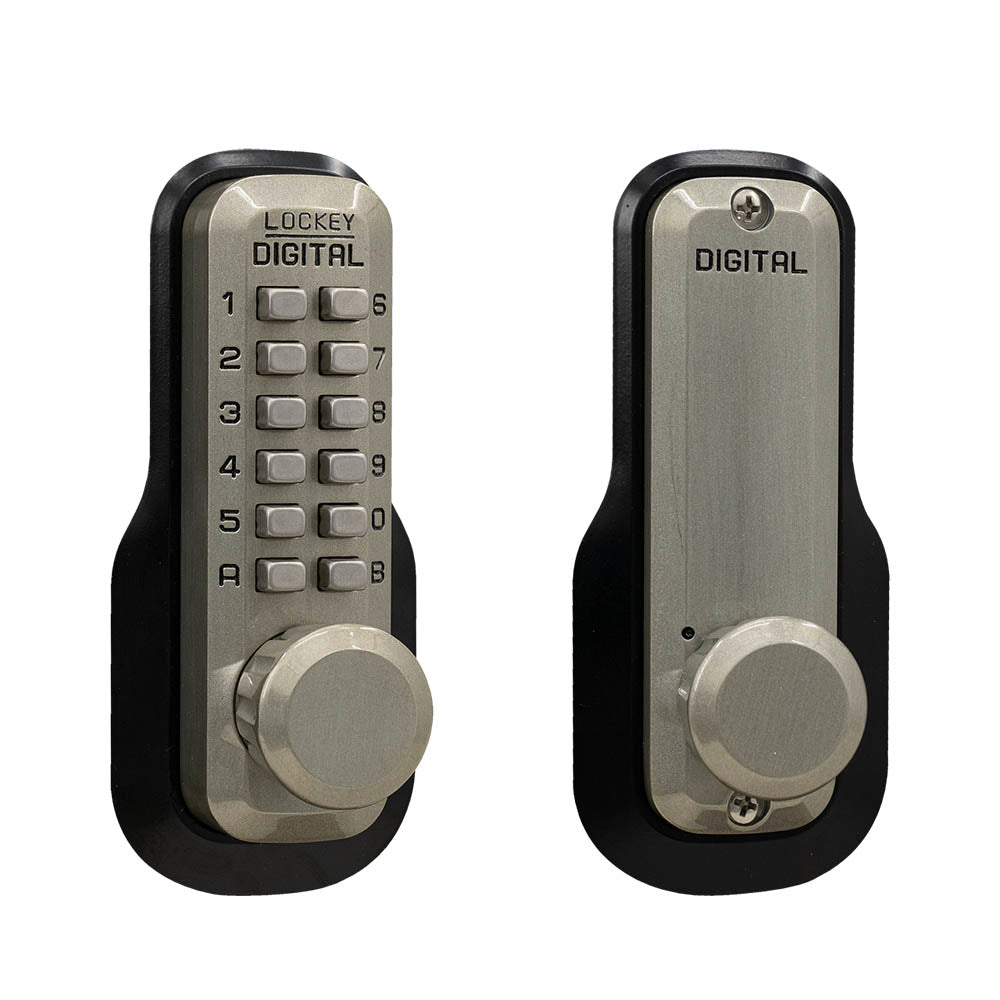

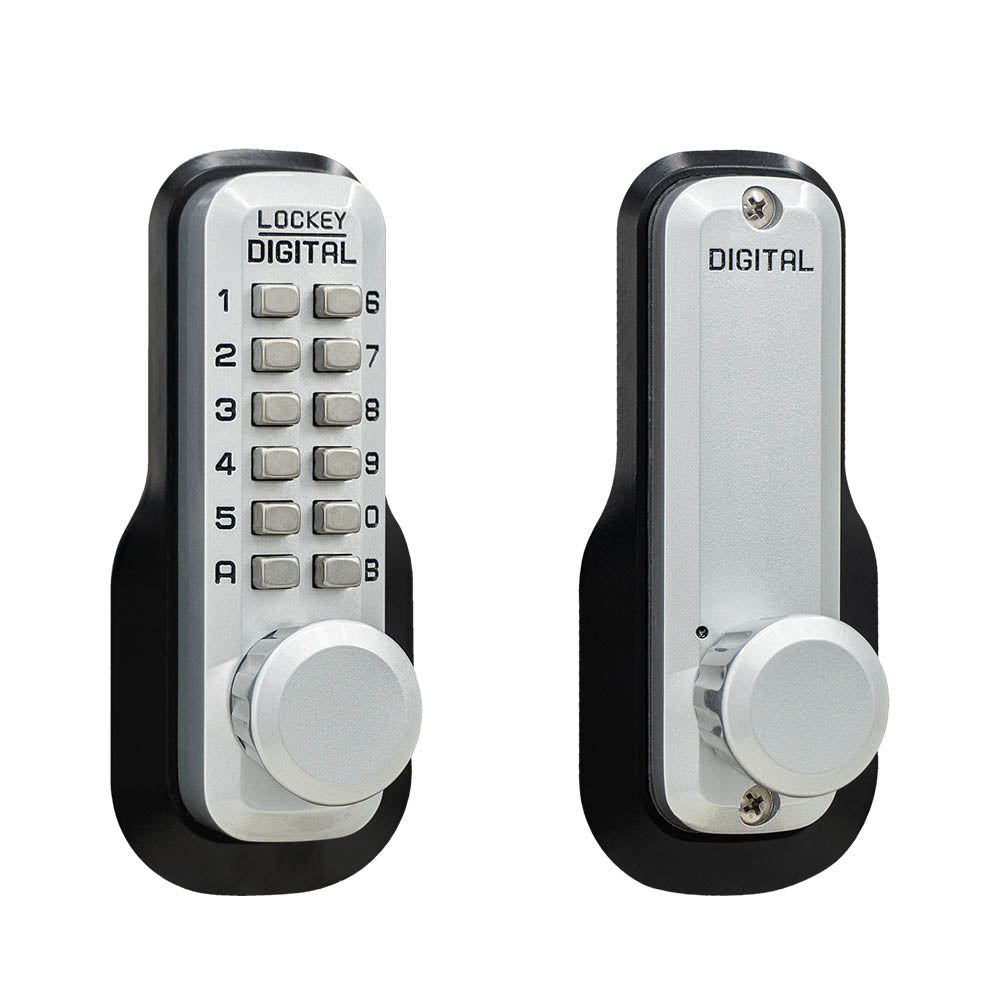

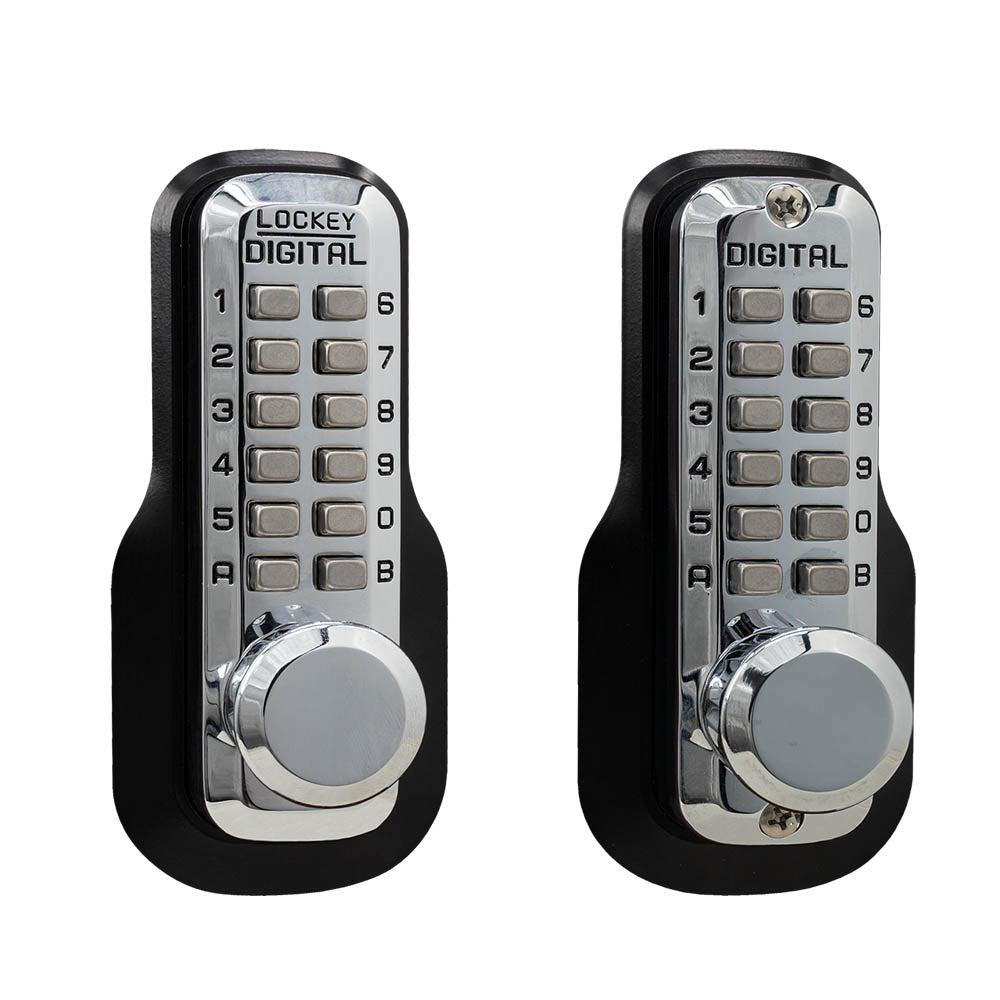

• Keypad: Single Combination, Double Combination (DC)

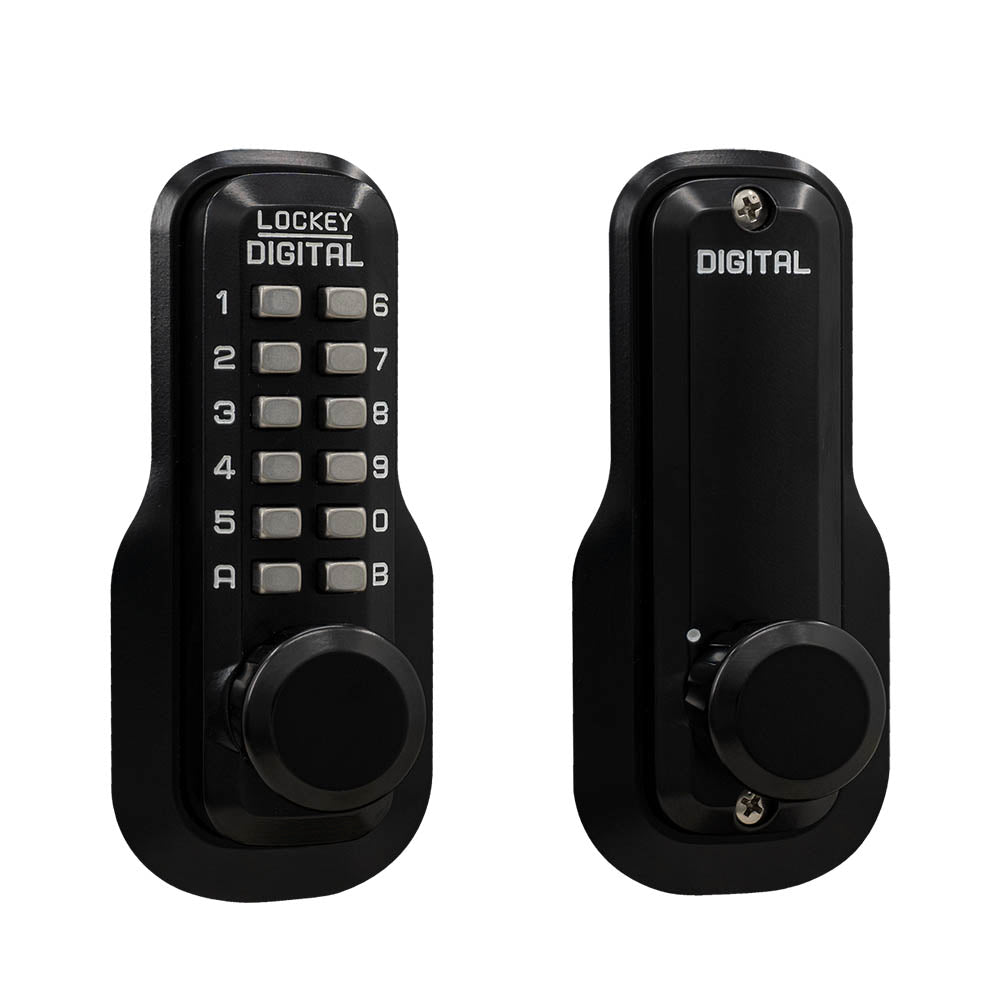

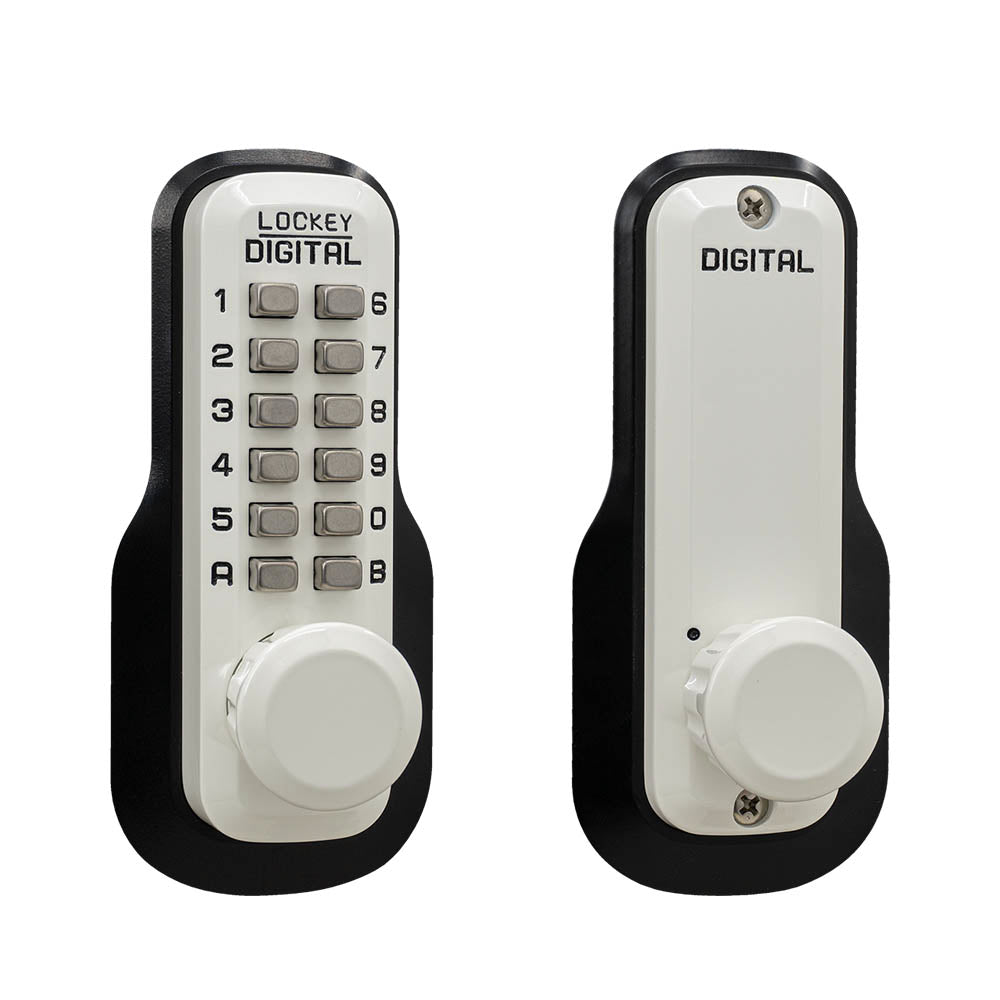

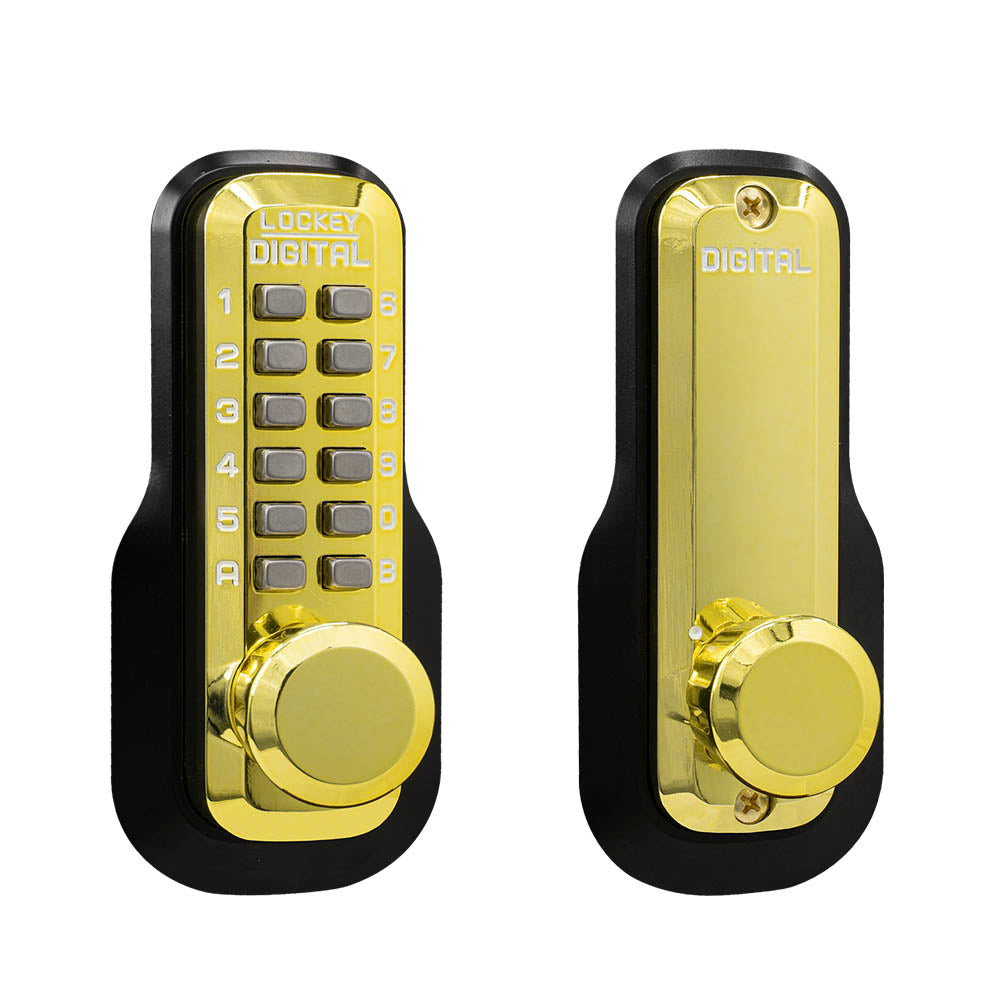

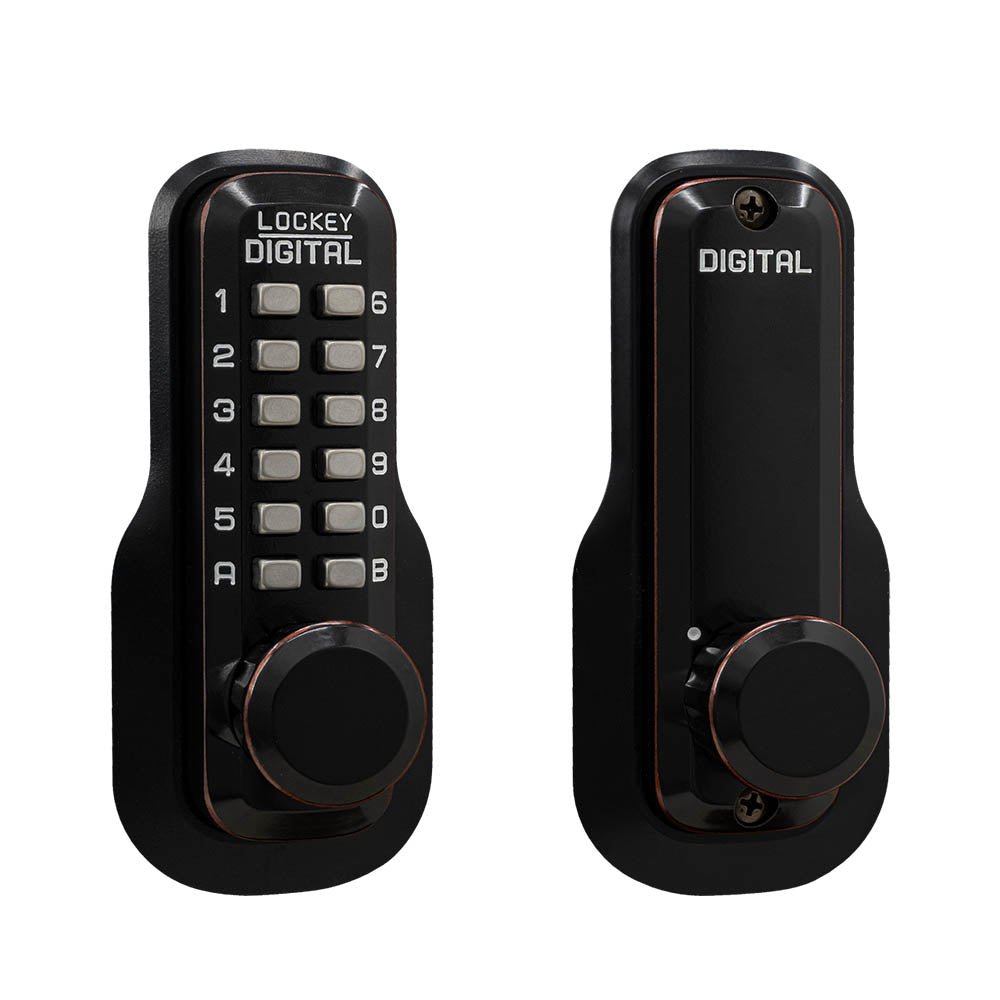

• Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OIL), NEW!! Satin Brass (SB)*, Satin Chrome (SC), Satin Nickel (SN), White (WH)
• *Satin Brass finish not available in Double Combination

Dimensions & Specifications

• Dimensions: 5″ L x 1 1/2″ W x 1 7/8″ D
• Total Coverage with Trim Plate: 5 5/8″ x 2 1/2″
• Latch Size: Adjustable
• Door Thickness: 1 1/8” – 2″
• Door Prep Edge Bore: 1″
• Material: Zinc-plated Steel with Teflon coated stainless steel interior components
• Covers 2 1/8″ door prep with provided trim plates
• For Exterior & Interior Use
• Weather Resistant
• Lifetime Mechanical Warranty

Compatible With

• GB200M Gate Box
• Extension Kit
• Deadlocking Spring Latch

Resources

Download Instructions
Download Spec Sheet
