Schlage L9010B Grade 1 Passage Latch Mortise Lock, B Rose, Lockbody Only, Right-Handed, Zinc L9010B RH 134
Sale price
$158.90
Regular price $227.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview

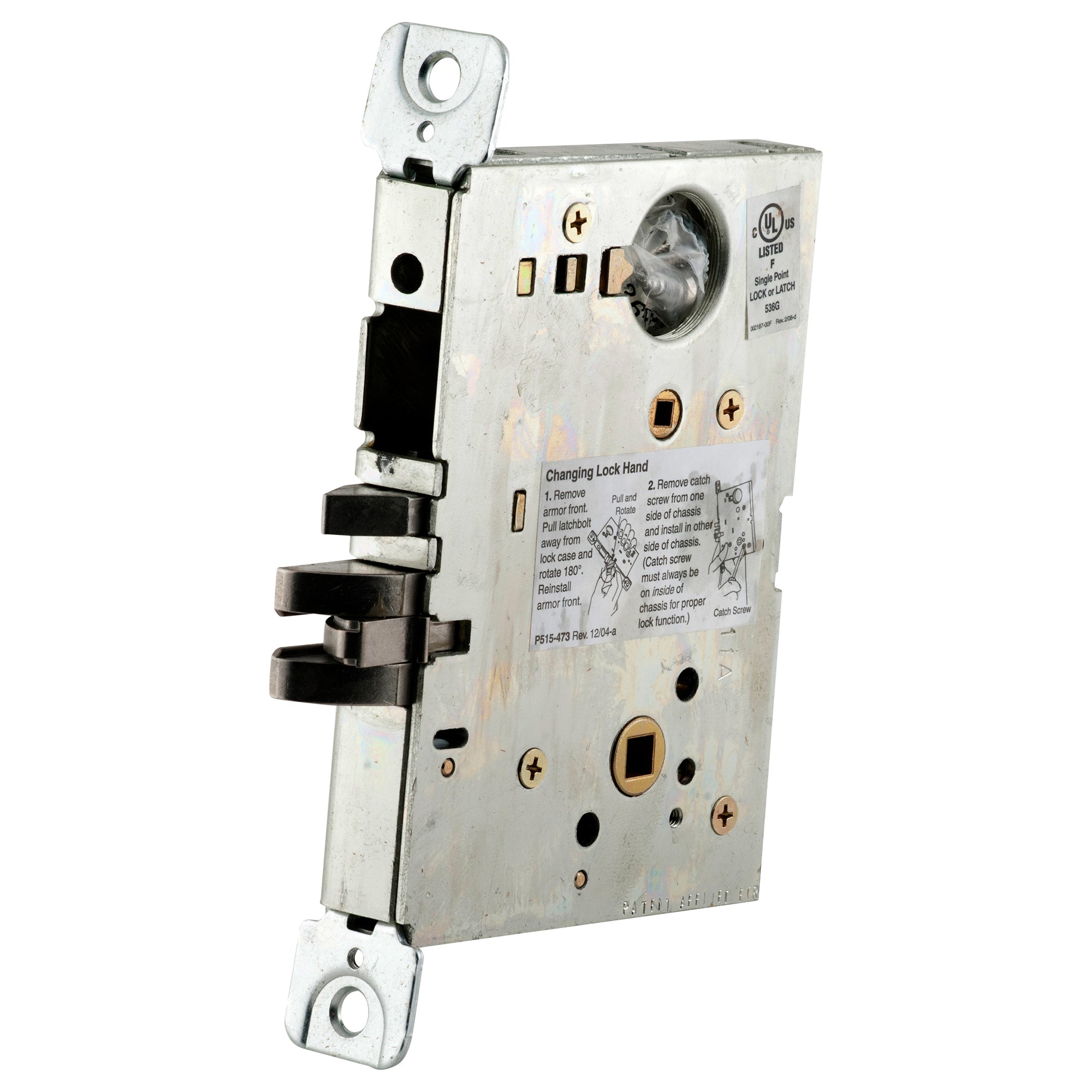

This is a mortise lock body for doors prepared for a mortise lock. It is sold as the lockbody only, so trim and other parts are ordered separately. It suits maintenance teams replacing a worn or damaged lockbody in an existing opening. Schlage is an Allegion brand. Part L9010B RH 134 is the B Rose, Lockbody Only, Right-Handed version in Zinc.
- B Rose
- Lockbody Only
- Right-Handed
- Finish 2C Zinc
- Grade 1
- Part number L9010B RH 134
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Schlage |
| ADA | Yes |
| Commercial/Residential | Light Duty Commercial |
| Country of Origin | Mexico |
| Grade | Grade 1 |
| Product Warranty | 3 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 2C |
| Finish Description | Zinc Plated |
| TECHNICAL SPECS | |
|---|---|
| SKU | L9010B RH 134 |
| Series | L Series |
| Main Category | Locksets |
| Sub-Category 1 | Mortise |
| Sub-Category 2 | Body Only |
| Backset (#) | 2.75 |
| Batteries Included | No |
| Battery Operated | No |
| Base Material | Steel |
| Can Be Keyed | No |
| Deadbolt Throw (#) | 1 |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Electronic | No |
| Function | Passage |
| Latch Throw (#) | 0.75 |
| Latch Dimensions | 1-1/4" x 8" |
| Maximum Door Thickness (#) | 1.75 |
| Minimum Door Thickness (#) | 1.75 |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" Strike Dimensions |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 10.375 |
| Box Height (#) | 5.625 |
| Box Weight (#) | 6.3 |
| Box Width (#) | 5.375 |
