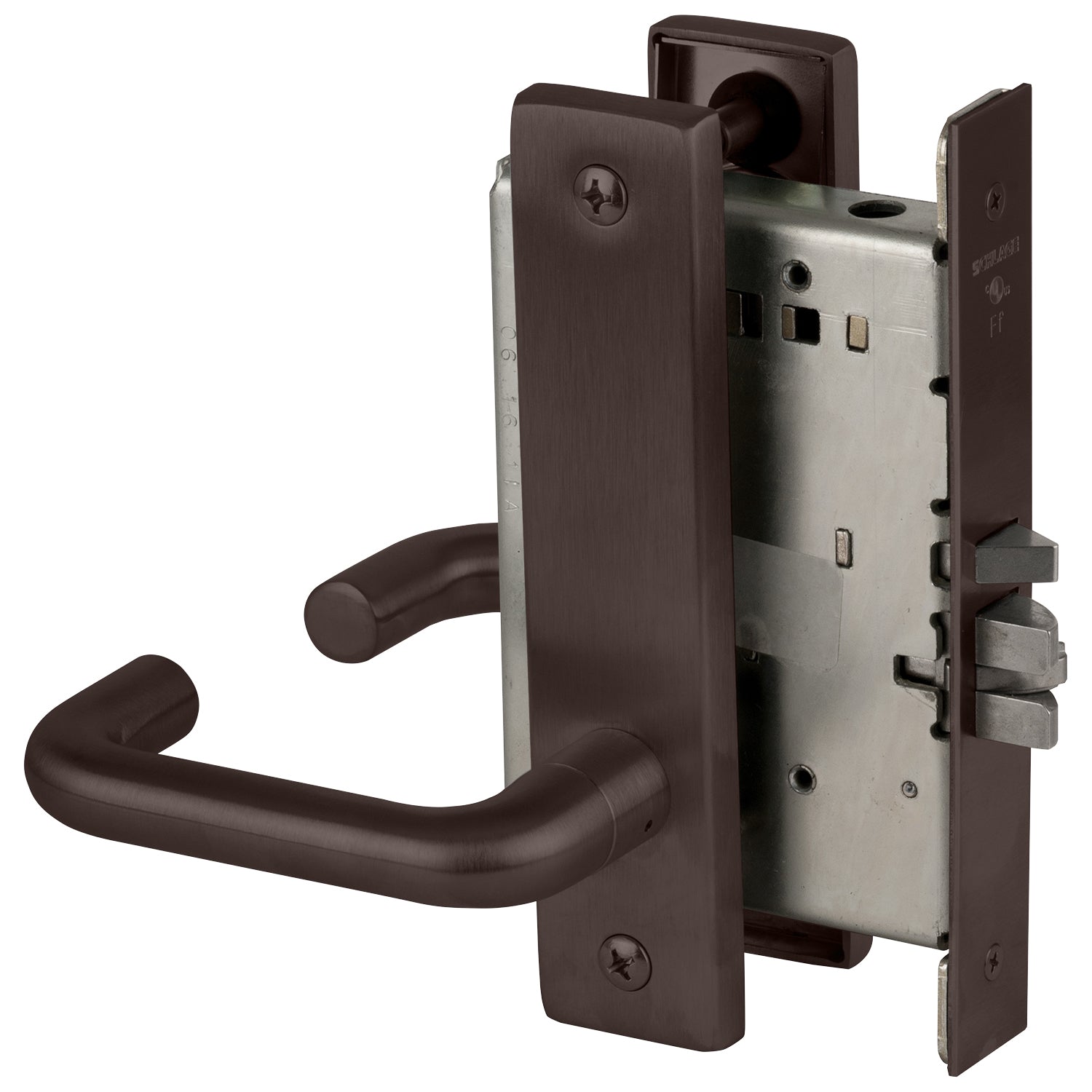

Schlage L9010 Grade 1 Passage Latch Mortise Lock, 03 Lever, L Escutcheon, Field Reversible, Oil-Rubbed Bronze L9010 03L 613
  • Schlage L9010 Grade 1 Passage Latch Mortise Lock, 03 Lever, L Escutcheon, Field Reversible, Oil-Rubbed Bronze L9010 03L 613
Schlage L9010 Grade 1 Passage Latch Mortise Lock, 03 Lever, L Escutcheon, Field Reversible, Oil-Rubbed Bronze L9010 03L 613
SchlageSKU L9010 03L 613

Schlage L9010 Grade 1 Passage Latch Mortise Lock, 03 Lever, L Escutcheon, Field Reversible, Oil-Rubbed Bronze L9010 03L 613

$857.50  $1,225.00

Free shipping on orders over $295.

  • Veteran-owned
  • Since 1989
  • Member of NARPM

Overview

The Schlage L9010 is a passage latch mortise lock for interior doors that need free operation from both sides. It has no locking function and is made for doors prepped for a mortise lock body. It is field reversible, so the handing can be changed on site. Schlage is an Allegion brand. Part L9010 03L 613 is the 03 Lever, L Escutcheon, Field Reversible version in Oil-Rubbed Bronze.

  • 03 Lever
  • L Escutcheon
  • Field Reversible
  • Finish 613 Oil-Rubbed Bronze
  • Grade 1
  • Fire rated: Yes
  • Part number L9010 03L 613
PRODUCT SPECS
Manufacturer Schlage
ADA Yes
Commercial/Residential Light Duty Commercial
Country of Origin Mexico
Fire Rated Yes
Grade Grade 1
Product Warranty 10 Year Warranty
PRODUCT FINISH
Finish 613
Finish Description Oil Rubbed Bronze
TECHNICAL SPECS
SKU L9010 03L 613
Series L Series
Main Category Locksets
Sub-Category 1 Mortise
Armor Front Dimensions 1-1/4" x 8"
Backset (#) 2.75
Base Material Bronze
Can Be Keyed No
Cylinder Type Keyless
Door Handing Non-handed
Door Range (Thickness) 1-3/4" - 1-3/4"
Electronic No
Faceplate Dimensions 1-1/8" x 8"
Function Passage
Keyway Not Applicable
Latch Throw (#) 0.75
Latch Description Spring Latch
Latch Dimensions 1-1/4" x 8"
Maximum Door Thickness (#) 1.75
Minimum Door Thickness (#) 1.75
Strike Description ASA Strike
Strike Dimensions 1-1/4" x 4-7/8"
PRODUCT DIMENSIONS
Projection (#) 2.8125
PACKAGE DIMENSIONS
Box Depth (#) 10.375
Box Height (#) 5.625
Box Weight (#) 6.3
Box Width (#) 5.375
