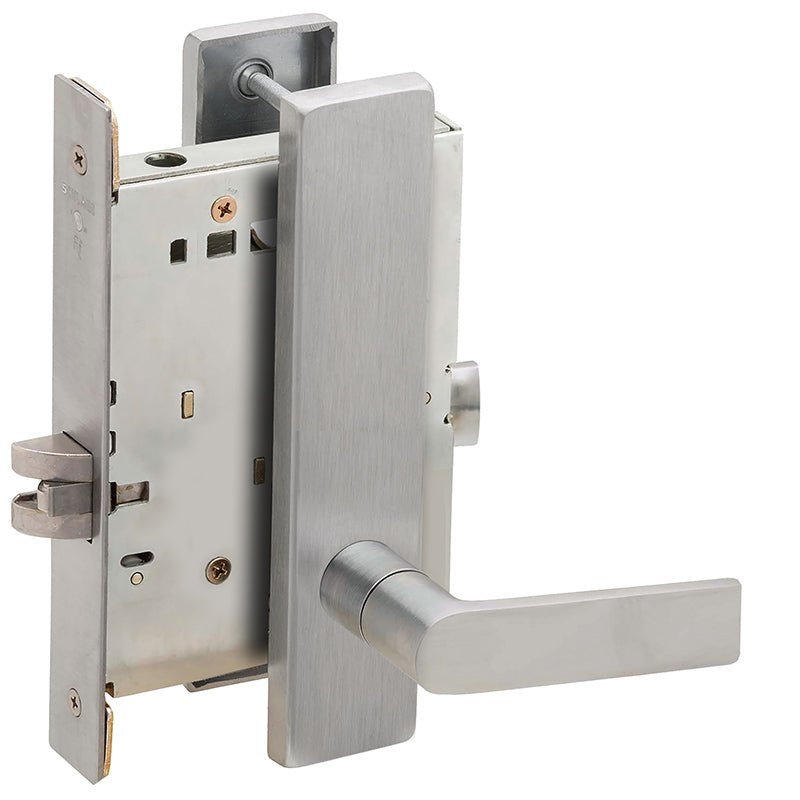

Schlage L9010 Grade 1 Passage Latch Mortise Lock, 01 Lever, L Escutcheon, Field Reversible, Satin Chrome L9010 01L 626
Sale price
$836.50
Regular price $1,195.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
The Schlage L9010 is a passage latch mortise lock for interior doors that need free operation from both sides. It has no locking function and is made for doors prepped for a mortise lock body. It is field reversible, so the handing can be changed on site. Schlage is an Allegion brand. Part L9010 01L 626 is the 01 Lever, L Escutcheon, Field Reversible version in Satin Chrome.
- 01 Lever
- L Escutcheon
- Field Reversible
- Finish 626 Satin Chrome
- Grade 1
- Part number L9010 01L 626
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Schlage |
| Commercial/Residential | Light Duty Commercial |
| Country of Origin | Mexico |
| Grade | Grade 1 |
| Product Warranty | 10 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| SKU | L9010 01L 626 |
| Series | L Series |
| Main Category | Locksets |
| Sub-Category 1 | Mortise |
| Base Material | Brass Bronze |
| Cylinder Type | Keyless |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Faceplate Dimensions | 1-1/8" x 8" |
| Function | Passage |
| Keyway | Not Applicable |
| Latch Description | Spring Latch |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 10.375 |
| Box Height (#) | 5.625 |
| Box Weight (#) | 6.3 |
| Box Width (#) | 5.375 |
