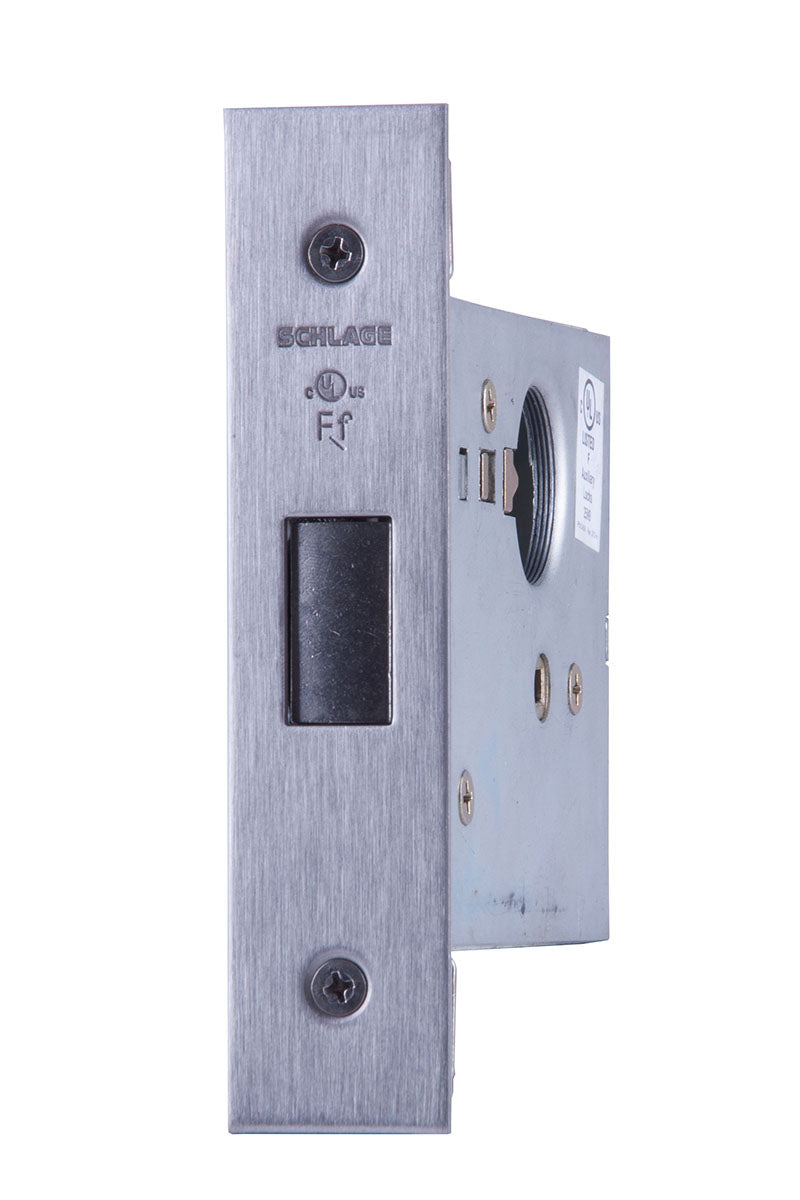

Schlage L464L Grade 1 Small Case Mortise Deadbolt, Single Cylinder Outside, Blank Inside, Less Conventional Cylinder, Satin Chrome L464L 626
Sale price
$235.90
Regular price $337.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
The Schlage L464L is a small case mortise deadbolt from the L400 Series. It installs in a mortise pocket cut into the door edge and throws a deadbolt into the strike to secure the opening. Schlage is an Allegion brand. Part L464L 626 is the Single Cylinder Outside, Blank Inside, Less Conventional Cylinder version in Satin Chrome.
- Single Cylinder Outside
- Blank Inside
- Less Conventional Cylinder
- Finish 626 Satin Chrome
- Grade 1
- Fire rated: Yes
- Part number L464L 626
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Schlage |
| Application | Operation by Key outside only |
| Commercial/Residential | Light Duty Commercial |
| Country of Origin | Mexico |
| Fire Rated | Yes |
| Grade | Grade 1 |
| Product Warranty | 3 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| SKU | L464L 626 |
| Series | L400 Series |
| Main Category | Locksets |
| Sub-Category 1 | Mortise |
| Sub-Category 2 | Deadbolts |
| Armor Front Dimensions | 1-1/4" x 5-9/16" |
| Backset (#) | 2.75 |
| Base Material | Brass Bronze |
| Can Be Keyed | Yes |
| Cylinder Type | Less Cylinder |
| Deadbolt Throw (#) | 1 |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Electronic | No |
| Function | Cylinder Only |
| Keyway | Not Applicable |
| Latch Description | Deadbolt |
| Strike Description | Square Corner Strike |
| Strike Dimensions | 1-1/8" x 3-1/2" |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 6.375 |
| Box Height (#) | 5.625 |
| Box Weight (#) | 2.5 |
| Box Width (#) | 3 |
