Schlage L463P Grade 1 Small Case Mortise Deadbolt, Classroom, Conventional Cylinder, Satin Chrome L463P 626 RH
Sale price
$403.90
Regular price $577.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview

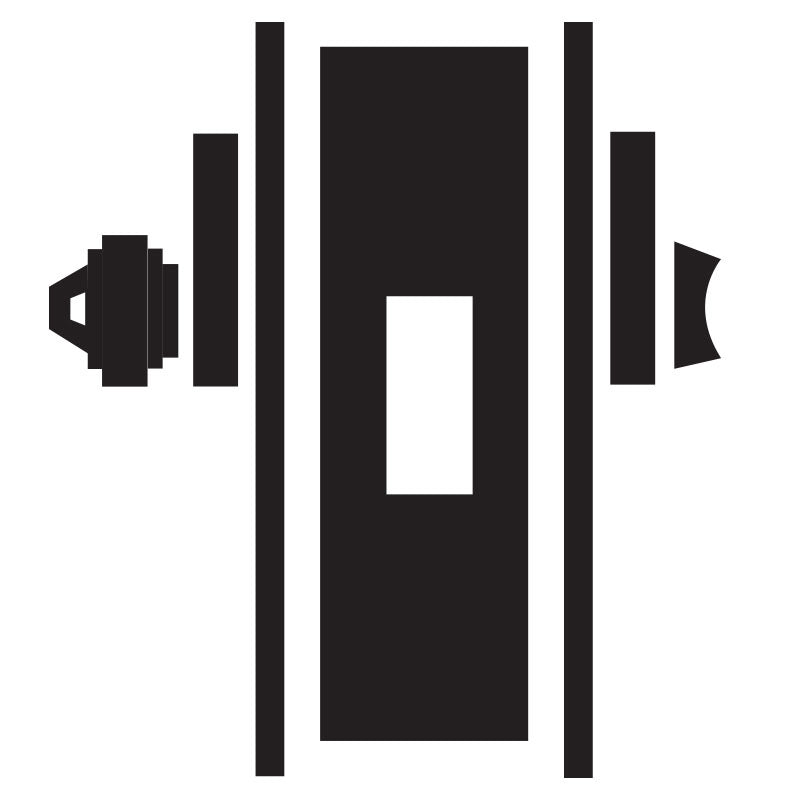

This is a small case mortise deadbolt from the Schlage L400 Series. It fits into a mortise pocket cut in the edge of the door and throws a deadbolt into the strike. Property teams use it to replace or add deadbolt security on doors prepared for small case mortise hardware. Schlage is an Allegion brand. Part L463P 626 RH is the Classroom, Conventional Cylinder version in Satin Chrome.
- Classroom
- Conventional Cylinder
- Finish 626 Satin Chrome
- Grade 1
- Fire rated: Yes
- Part number L463P 626 RH
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Schlage |
| Application | Operation by Key outside, thumbturn retracts only |
| Commercial/Residential | Light Duty Commercial |
| Country of Origin | Mexico |
| Fire Rated | Yes |
| Grade | Grade 1 |
| Product Warranty | 3 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| SKU | L463P 626 RH |
| Series | L400 Series |
| Main Category | Locksets |
| Sub-Category 1 | Mortise |
| Sub-Category 2 | Deadbolts |
| Armor Front Dimensions | 1-1/4" x 5-9/16" |
| Backset (#) | 2.75 |
| Base Material | Brass Bronze |
| Can Be Keyed | Yes |
| Cylinder Type | Mortise Conventional |
| Deadbolt Throw (#) | 1 |
| Door Handing | Right Hand |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Electronic | No |
| Function | Classroom |
| Keyway | C Keyway |
| Latch Description | Deadbolt |
| Number of Pins | 6 |
| Strike Description | Square Corner Strike |
| Strike Dimensions | 1-1/8" x 3-1/2" |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 6.375 |
| Box Height (#) | 5.625 |
| Box Weight (#) | 2.5 |
| Box Width (#) | 3 |
