Schlage L463P 626 LH
  • Schlage L463P 626 LH
Schlage L463P Grade 1 Small Case Mortise Deadbolt, Classroom, Conventional Cylinder, Satin Chrome L463P 626 LH
SchlageSKU L463P 626 LH

Schlage L463P Grade 1 Small Case Mortise Deadbolt, Classroom, Conventional Cylinder, Satin Chrome L463P 626 LH

$403.90  $577.00

Free shipping on orders over $295.

  • Veteran-owned
  • Since 1989
  • Member of NARPM

Overview

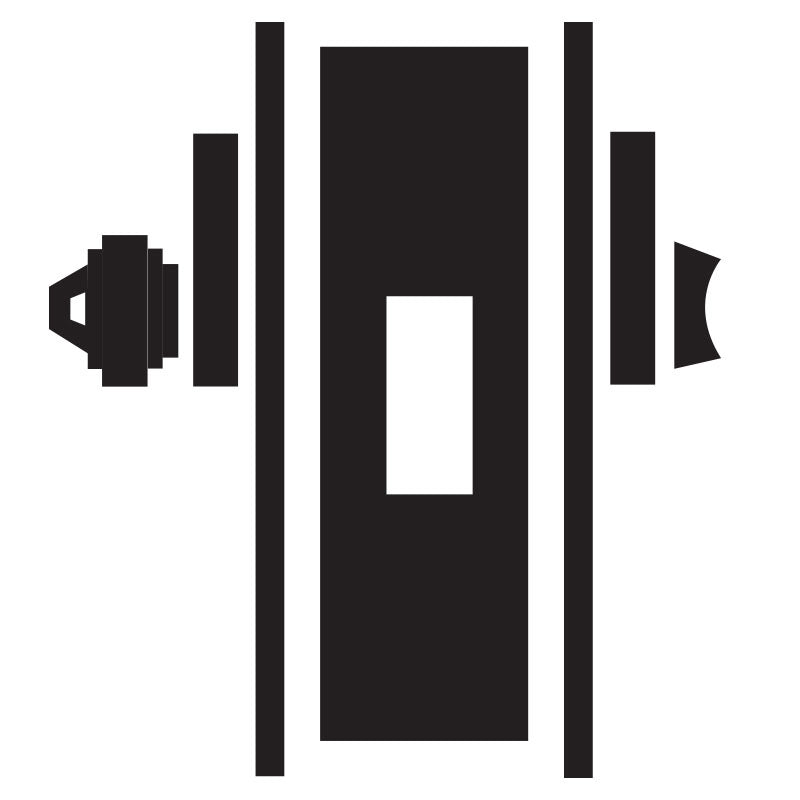

This is a small case mortise deadbolt from the Schlage L400 Series. It fits into a mortise pocket cut in the edge of the door and throws a deadbolt into the strike. Property teams use it to replace or add deadbolt security on doors prepared for small case mortise hardware. Schlage is an Allegion brand. Part L463P 626 LH is the Classroom, Conventional Cylinder version in Satin Chrome.

  • Classroom
  • Conventional Cylinder
  • Finish 626 Satin Chrome
  • Grade 1
  • Fire rated: Yes
  • Part number L463P 626 LH
PRODUCT SPECS
Manufacturer Schlage
Application Operation by Key outside, thumbturn retracts only
Commercial/Residential Light Duty Commercial
Country of Origin Mexico
Fire Rated Yes
Grade Grade 1
Product Warranty 3 Year Warranty
PRODUCT FINISH
Finish 626
Finish Description Satin Chrome
TECHNICAL SPECS
SKU L463P 626 LH
Series L400 Series
Main Category Locksets
Sub-Category 1 Mortise
Sub-Category 2 Deadbolts
Armor Front Dimensions 1-1/4" x 5-9/16"
Backset (#) 2.75
Base Material Brass Bronze
Can Be Keyed Yes
Cylinder Type Mortise Conventional
Deadbolt Throw (#) 1
Door Handing Left Hand
Door Range (Thickness) 1-3/4" - 1-3/4"
Electronic No
Function Classroom
Keyway C Keyway
Latch Description Deadbolt
Number of Pins 6
Strike Description Square Corner Strike
Strike Dimensions 1-1/8" x 3-1/2"
PRODUCT DIMENSIONS
PACKAGE DIMENSIONS
Box Depth (#) 6.375
Box Height (#) 5.625
Box Weight (#) 2.5
Box Width (#) 3
