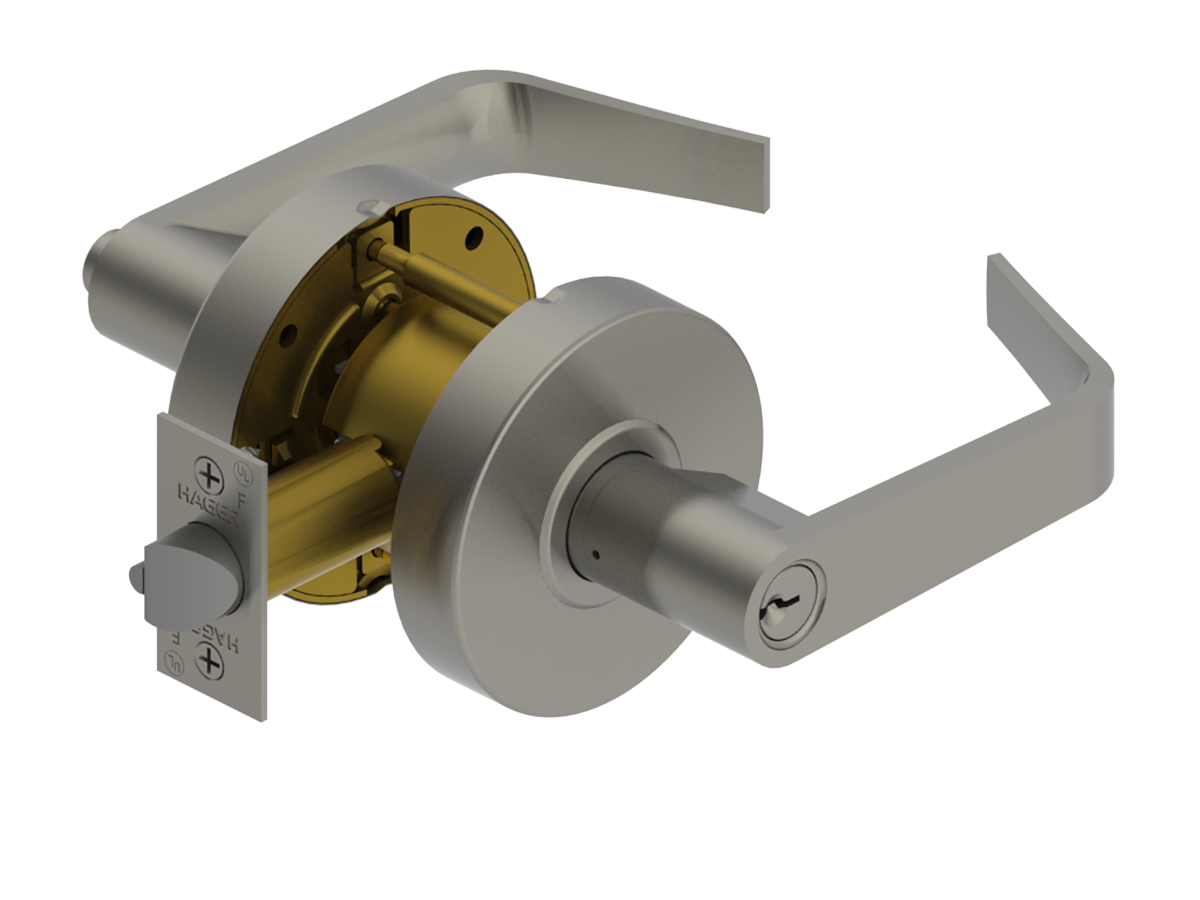

Hager 2553 Grade 2 Entry Cylindrical Lock, Withnell Lever, Conventional Cylinder, ASA Strike, Satin Chrome 2553 SCC WTN US26D KD
Sale price
$92.47
Regular price $154.62
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
The Hager 2553 is a cylindrical entry lock for standard door preps. It is a Grade 2 lock with a conventional cylinder and an ASA strike. Use it to replace or add a lockable entry set on interior or exterior doors. Part 2553 SCC WTN US26D KD is the Withnell Lever, Conventional Cylinder, ASA Strike version in Satin Chrome.
- Withnell Lever
- Conventional Cylinder
- ASA Strike
- Finish US26D Satin Chrome
- Grade 2
- Fire rated: Yes
- ANSI A156.2, Series 4000, Grade 2, ANSI A117.1 ADA, UL Listed
- Part number 2553 SCC WTN US26D KD
| PRODUCT SPECS | |
|---|---|
| SKU | 2553 SCC WTN US26D KD |
| Manufacturer | Hager |
| Series | 2500 Series |
| ADA | Yes |
| Certification | ANSI A156.2, Series 4000, Grade 2, ANSI A117.1 ADA, UL Listed |
| Country of Origin | United States |
| Fire Rated | Yes |
| Grade | Grade 2 |
| Product Warranty | 5 Year Warranty |
| UOM | 1 |
| UPC | 798550296485 |
| PRODUCT FINISH | |
|---|---|
| Finish | US26D |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Brass Bronze |
| Battery Operated | No |
| Bore Hole Diameter (in) | 2-1/8" |
| Can Be Keyed | Yes |
| Cylinder Type | Conventional |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 2" |
| Function | Entrance |
| Includes Cylinder(s)? | Yes |
| Keyway | C Keyway |
| Latch Description | Dead Latch |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 3948 |
| Latch Throw (in) | 1/2" |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | WTN |
| Maximum Door Thickness (in) | 2" |
| Minimum Door Thickness (in) | 1-3/8" |
| Projection (in) | 2-21/32" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Design | Not Applicable |
| Rose/Escutcheon Dimensions (in) | 3-11/32" |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| Strike Number | 3935 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 8.5 |
| Box Height (#) | 3.8 |
| Box Weight (#) | 4.25 |
| Box Width (#) | 7.5 |
Shipping and returns
Shipping. Free shipping on orders over $295. Orders under $295 ship for $19.95.
