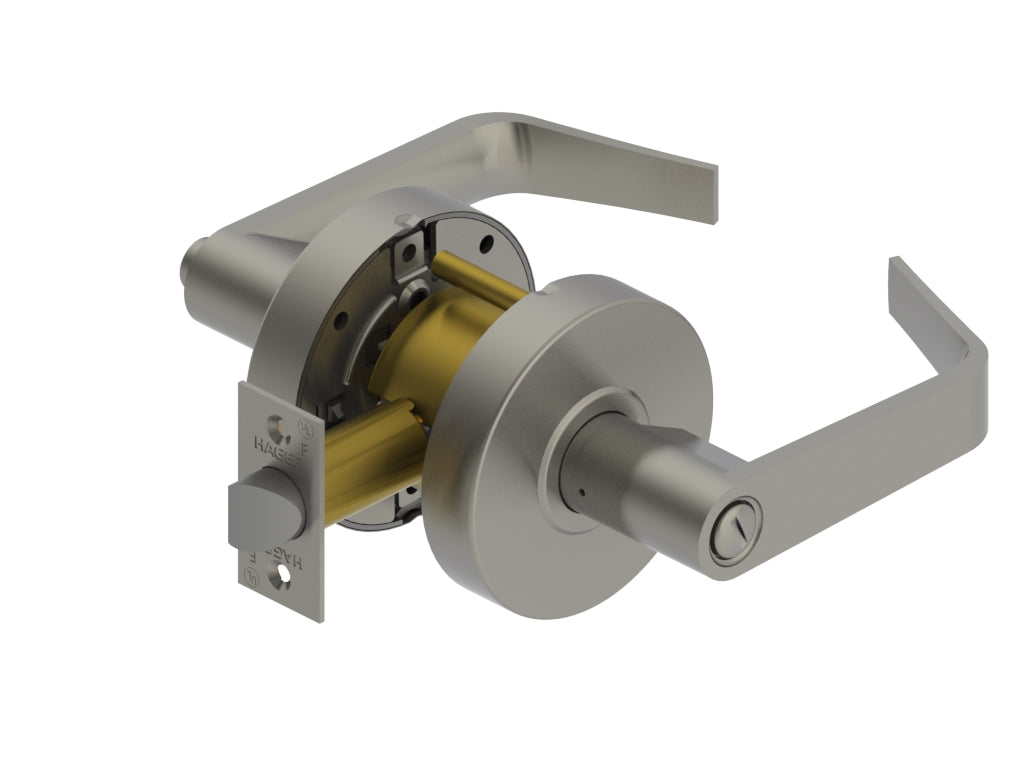

Hager 2540 Grade 2 Privacy Cylindrical Lock, Withnell Lever, Conventional Cylinder, ASA Strike, Satin Chrome 2540 WTN US26D
Sale price
$82.89
Regular price $138.61
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
The Hager 2540 is a cylindrical lock for interior doors that need a privacy latch, such as restrooms and offices. It installs in a standard cylindrical door prep and is built for light to medium commercial and multifamily use. It is listed to ANSI A156.2 Series 4000 and meets ANSI A117.1 accessibility requirements. Part 2540 WTN US26D is the Withnell Lever, Conventional Cylinder, ASA Strike version in Satin Chrome.
- Withnell Lever
- Conventional Cylinder
- ASA Strike
- Finish US26D Satin Chrome
- Grade 2
- Fire rated: Yes
- ANSI A156.2, Series 4000, Grade 2, ANSI A117.1 ADA, UL Listed
- Part number 2540 WTN US26D
| PRODUCT SPECS | |
|---|---|
| SKU | 2540 WTN US26D |
| Manufacturer | Hager |
| Series | 2500 Series |
| ADA | Yes |
| Certification | ANSI A156.2, Series 4000, Grade 2, ANSI A117.1 ADA, UL Listed |
| Country of Origin | United States |
| Fire Rated | Yes |
| Grade | Grade 2 |
| Product Warranty | 5 Year Warranty |
| UOM | 1 |
| UPC | 798550290247 |
| PRODUCT FINISH | |
|---|---|
| Finish | US26D |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Brass Bronze |
| Battery Operated | No |
| Bore Hole Diameter (in) | 2-1/8" |
| Can Be Keyed | No |
| Cylinder Type | Keyless |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 2" |
| Function | Privacy |
| Includes Cylinder(s)? | No |
| Keyway | Not Applicable |
| Latch Description | Spring Latch |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 3947 |
| Latch Throw (in) | 1/2" |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | WTN |
| Maximum Door Thickness (in) | 2" |
| Minimum Door Thickness (in) | 1-3/8" |
| Projection (in) | 2-21/32" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Design | Not Applicable |
| Rose/Escutcheon Dimensions (in) | 3-11/32" |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| Strike Number | 3935 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 8.5 |
| Box Height (#) | 4 |
| Box Weight (#) | 4.1 |
| Box Width (#) | 7.5 |
