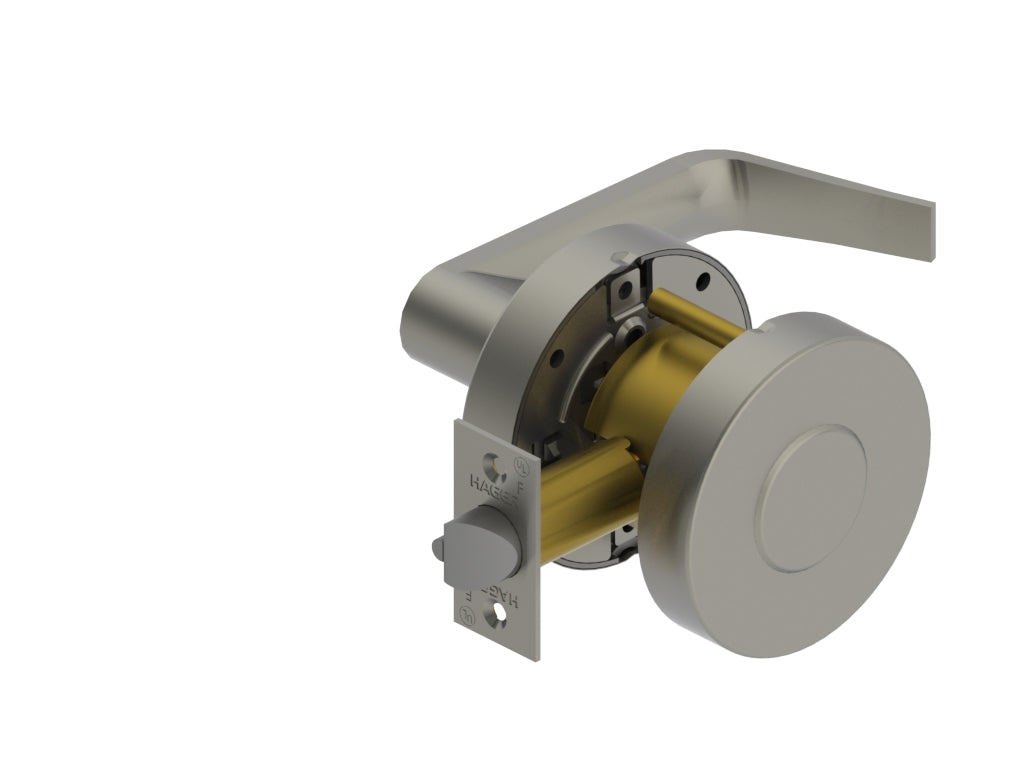

Hager 2517 Grade 2 Single Dummy Cylindrical Lock, Withnell Lever, Conventional Cylinder, ASA Strike, Satin Chrome 2517 WTN US26D
Sale price
$48.70
Regular price $81.44
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a single dummy cylindrical lock from the Hager 2500 Series. It mounts on one side of a door as a fixed lever pull and does not latch or lock. It suits doors that need a lever handle on one face only, such as closets and storage rooms. Part 2517 WTN US26D is the Withnell Lever, Conventional Cylinder, ASA Strike version in Satin Chrome.
- Withnell Lever
- Conventional Cylinder
- ASA Strike
- Finish US26D Satin Chrome
- Grade 2
- Fire rated: Yes
- ANSI A156.2, Series 4000, Grade 2, ANSI A117.1 ADA, UL Listed
- Part number 2517 WTN US26D
| PRODUCT SPECS | |
|---|---|
| SKU | 2517 WTN US26D |
| Manufacturer | Hager |
| Series | 2500 Series |
| ADA | Yes |
| Certification | ANSI A156.2, Series 4000, Grade 2, ANSI A117.1 ADA, UL Listed |
| Country of Origin | United States |
| Fire Rated | Yes |
| Grade | Grade 2 |
| Product Warranty | 5 Year Warranty |
| UOM | 1 |
| UPC | 798550307884 |
| PRODUCT FINISH | |
|---|---|
| Finish | US26D |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | Not Applicable |
| Base Material | Brass Bronze |
| Battery Operated | No |
| Bore Hole Diameter (in) | Not Applicable |
| Can Be Keyed | No |
| Cylinder Type | Keyless |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 2" |
| Function | Dummy |
| Includes Cylinder(s)? | No |
| Keyway | Not Applicable |
| Latch Description | Not Applicable |
| Latch Dimensions | Not Applicable |
| Latch Number | Not Applicable |
| Latch Throw (in) | Not Applicable |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | WTN |
| Maximum Door Thickness (in) | 2" |
| Minimum Door Thickness (in) | 1-3/8" |
| Projection (in) | 2-21/32" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Design | Not Applicable |
| Rose/Escutcheon Dimensions (in) | 3-11/32" |
| Strike Description | Not Applicable |
| Strike Dimensions | Not Applicable |
| Strike Number | Not Applicable |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 6.8 |
| Box Height (#) | 3.3 |
| Box Weight (#) | 1.4 |
| Box Width (#) | 3.8 |
