$390.52
SKU F-19-V-EO SP28 3 RHR

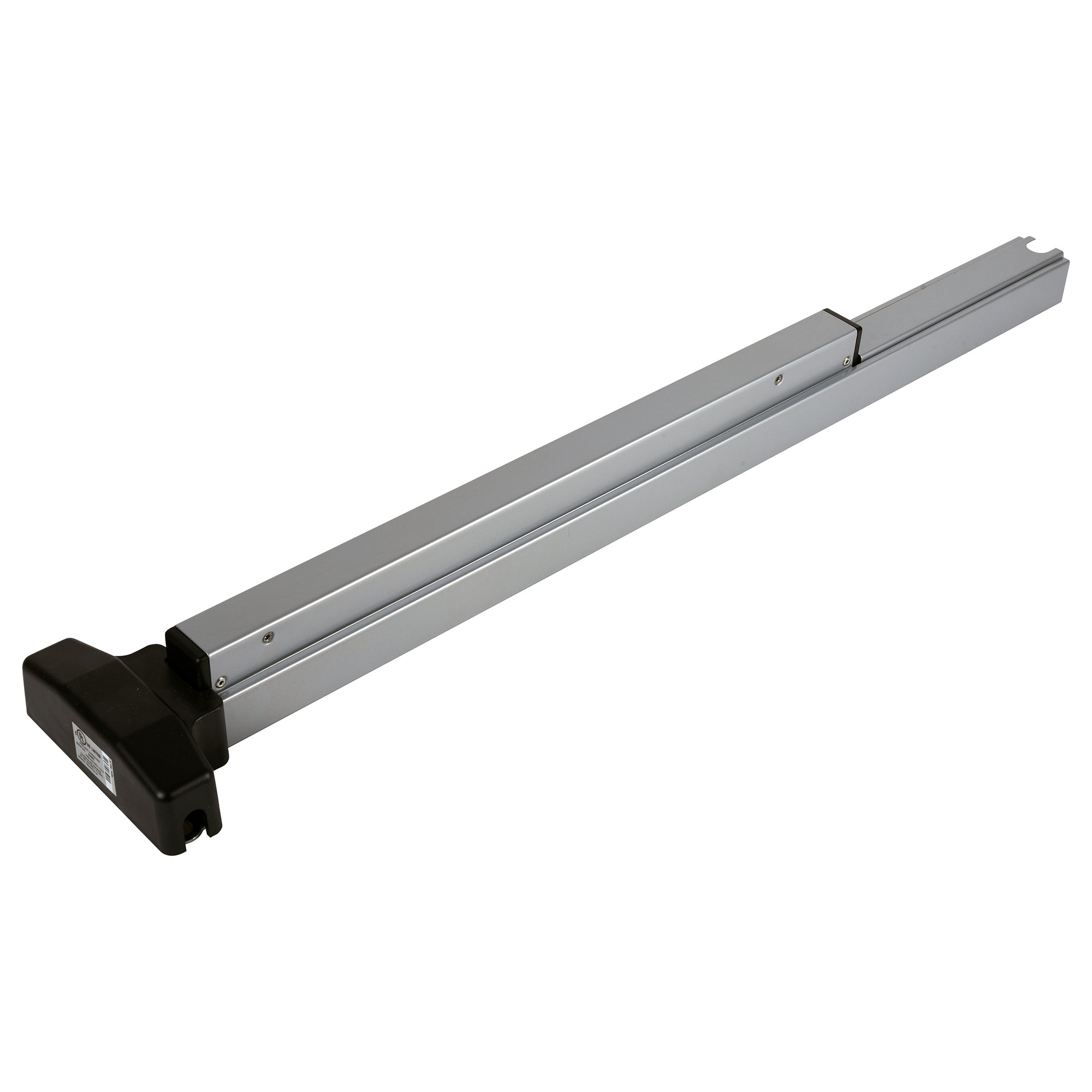

Falcon F-19-V-EO Grade 1 Fire Rated Surface Vertical Rod Exit Device, Exit Only, 36 In., RHR, Sprayed Aluminum F-19-V-EO SP28 3 RHR
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a Grade 1 surface vertical rod exit device for exit-only openings. It mounts on the face of the door and latches at the top and bottom of the frame through vertical rods. It works as the exit hardware on doors that need no outside trim. Falcon is an Allegion brand. Part F-19-V-EO SP28 3 RHR is the Exit Only, 36 In., RHR, Aluminum Painted version in Sprayed Aluminum.
- Exit Only
- 36 In.
- RHR
- Aluminum Painted
- Finish SP28 Sprayed Aluminum
- Grade 1
- Fire rated: Yes
- Part number F-19-V-EO SP28 3 RHR
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Falcon |
| Commercial/Residential | Light Duty Commercial |
| Fire Rated | Yes |
| Grade | Grade 1 |
| Product Warranty | 10 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | SP28 |
| Finish Description | Sprayed Aluminum |
| TECHNICAL SPECS | |
|---|---|
| SKU | F-19-V-EO SP28 3 RHR |
| Series | 19 Series |
| Main Category | Exit Devices |
| Sub-Category 1 | Exit Device Only |
| Base Material | Varies |
| Cylinder Type | Keyless |
| Dogging Option | Yes |
| Dogging Type | Hex Key Dogging |
| Door Handing | Right Hand Reverse |
| Door Material | Metal/Wood |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Door Width Maximum (#) | 36 |
| Door Width Minimum (#) | 30 |
| Electronic | No |
| Function | Exit Only |
| Keyway | Not Applicable |
| Latch Throw (#) | 0.75 |
| Latch Description | Top - Bottom Latchbolts |
| Minimum Stile (#) | 1.75 |
| Screw Pack | Sex-Nuts and Bolts |
| Strike Description | Solid Catch Strike |
| PRODUCT DIMENSIONS | |
|---|---|
| Projection (#) | 1.75 |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 40.25 |
| Box Height (#) | 11.25 |
| Box Weight (#) | 11 |
| Box Width (#) | 6.5 |
