Dortronics 1110XD 1100 Series Electromagnetic Lock, 1200 LB Holding Force, 12/24 VDC, with SPDT Door Position Switch, Satin Aluminum 1110xD
Sale price
$554.32
Regular price $820.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview

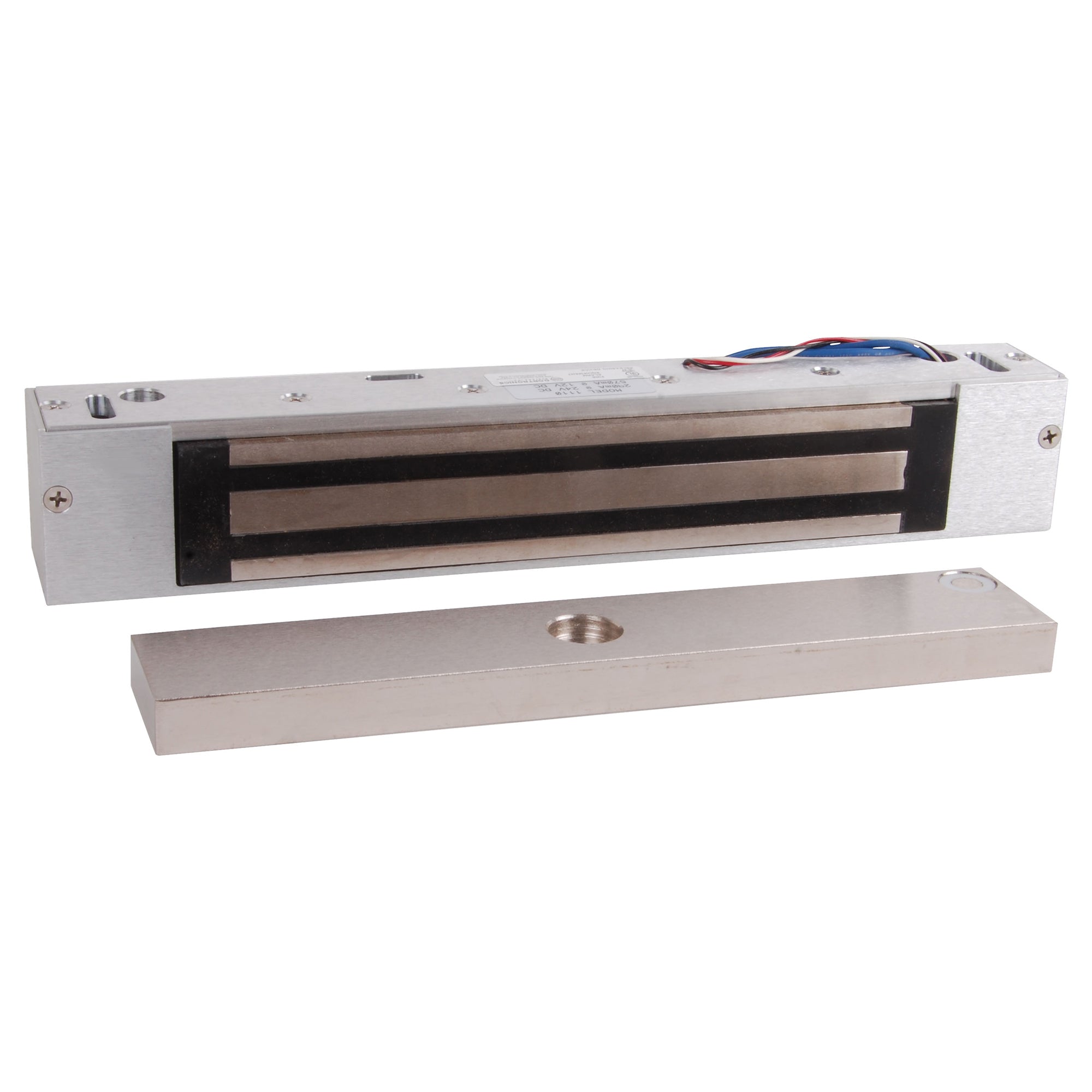

This is a Dortronics 1100 Series electromagnetic lock with a 1200 lb holding force. It mounts at the top of the door and frame to hold the door closed when powered. The housing is aluminum. Part 1110xD is the 1200 LB Holding Force, 12/24 VDC, with SPDT Door Position Switch version in Satin Aluminum.
- 1200 LB Holding Force
- 12/24 VDC
- with SPDT Door Position Switch
- Finish US28 Satin Aluminum
- Fire rated: Yes
- UL Listed, UL 294
- Part number 1110xD
| PRODUCT SPECS | |
|---|---|
| SKU | 1110xD |
| Parent Manufacturer | Dortronics Systems Inc |
| Manufacturer | Dortronics |
| Series | 1100 Series |
| Certification | UL Listed, UL 294 |
| Commercial/Residential | Commercial |
| Country of Origin | United States |
| Fire Rated | Yes |
| Grade | Not Graded |
| Product Warranty | Limited Warranty |
| Type | Magnetic Lock |
| UOM | 1 |
| PRODUCT FINISH | |
|---|---|
| Finish | US28 |
| Finish Description | Aluminum |
| TECHNICAL SPECS | |
|---|---|
| Base Material | Aluminum |
| Current Draw | 290/580mA @ 24/12 VDC Current |
| Door Handing | Non-handed |
| Door Range (Thickness) | - |
| Electronic | Yes |
| FS/FSE Mode | Fail Safe |
| Function | Single Door |
| Holding Force (lbs) | 1200 |
| Interior/Exterior | Interior/Exterior |
| Option 1 | Door Position Switch |
| Screw Pack | Machine Screws |
| Selling Quantity | 1 |
| User Codes | 0 |
| Voltage | 12/24 VDC Voltage |
| PRODUCT DIMENSIONS | |
|---|---|
| Dimensions | 12-1/2" x 2" x 1-13/16" |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 14 |
| Box Height (#) | 3.5 |
| Box Weight (#) | 9 |
| Box Width (#) | 3.5 |
