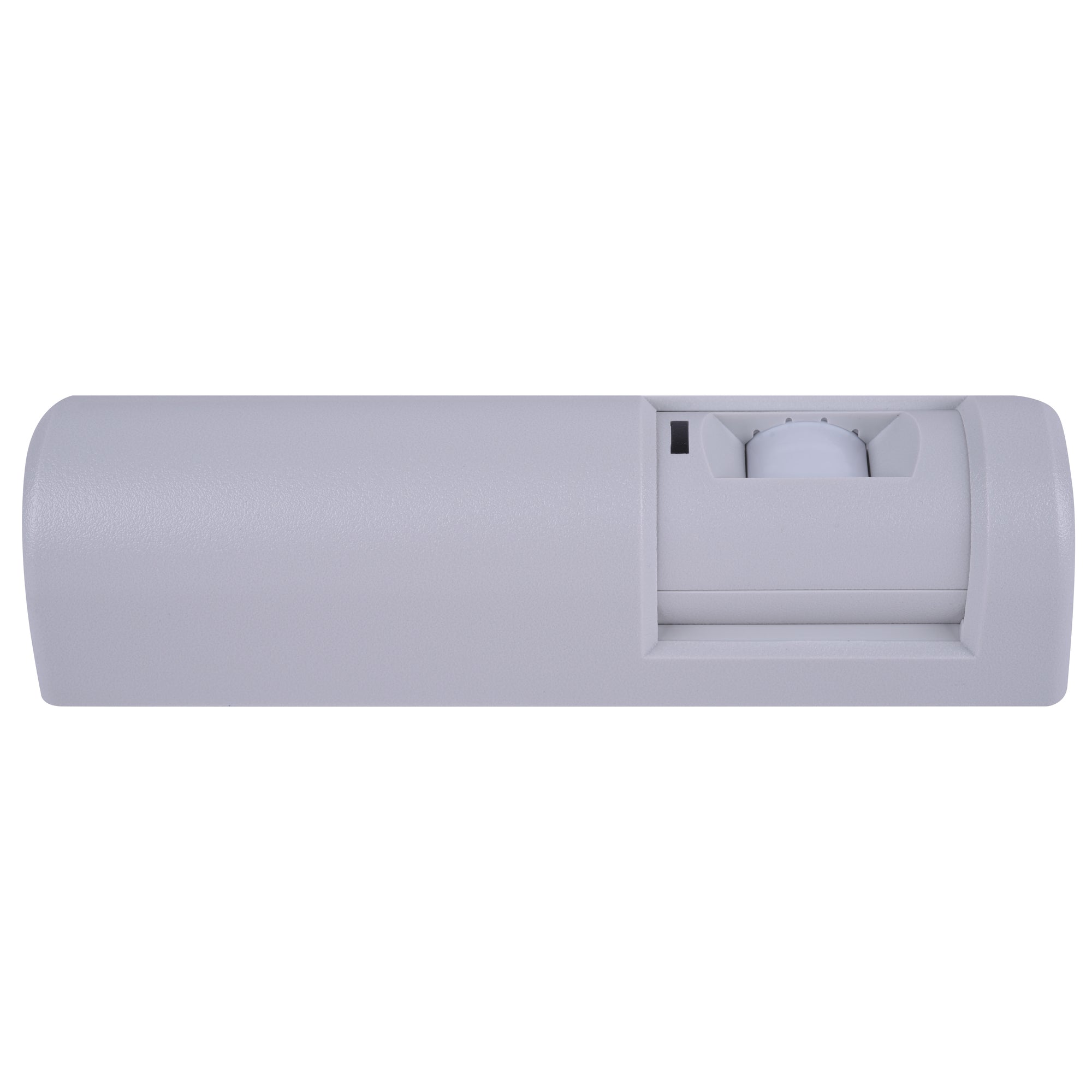

Detection Systems DS160 PIR Request to Exit Detector, w/Sounder, Light Gray, Gray DS160
Sale price
$122.03
Regular price $126.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
The DS160 is a passive infrared request to exit detector from Detection Systems. It mounts at an access-controlled opening and senses motion to signal an exit. It carries a built-in sounder and UL 294 Listed, Grade 1 ratings. Part DS160 is the w/Sounder, Light Gray version in Gray.
- w/Sounder
- Light Gray
- Finish Gray Gray
- Grade 1
- UL 294 Listed
- Part number DS160
| PRODUCT SPECS | |
|---|---|
| SKU | DS160 |
| Manufacturer | Detection Systems |
| Series | Not Applicable |
| Application | For use in "Request to Exit" applications |
| Certification | UL 294 Listed |
| Commercial/Residential | Commercial |
| Country of Origin | China |
| Grade | Grade 1 |
| Product Warranty | Limited Warranty |
| Type | Passive Infrared |
| UOM | 1 |
| UPC | 840067662014 |
| PRODUCT FINISH | |
|---|---|
| Finish | Gray |
| Finish Description | Gray |
| TECHNICAL SPECS | |
|---|---|
| Contact Rating | 1A @ 30 VAC/DC Contact Rating |
| Contacts | (2) Form C Contacts |
| Current | 39mA @ 12 VDC Current Draw |
| Door Handing | Non-handed |
| Door Range (Thickness) | - |
| Frequency | 26 MHz to 1000 MHz Radio Frequency Interface |
| Function | Infrared Request to Exit |
| Includes | 85 Decibel Sounder, LED Indicators |
| Interior/Exterior | Interior/Exterior |
| Mount | Less than 15' Mounting Height |
| Operating Temperature | (-20) F to 120 Degrees F |
| Range | 8' x 10' Coverage |
| Selling Quantity | 1 |
| Switch Type | SLI Sequential Logic Input |
| User Codes | 0 |
| Voltage | 12 VAC/DC or 30 VAC/DC Voltage |
| PRODUCT DIMENSIONS | |
|---|---|
| Dimensions | 6-3/4" x 1-25/32" x 1-3/4" |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 3.75 |
| Box Height (#) | 4 |
| Box Weight (#) | 1.3 |
| Box Width (#) | 7.75 |
