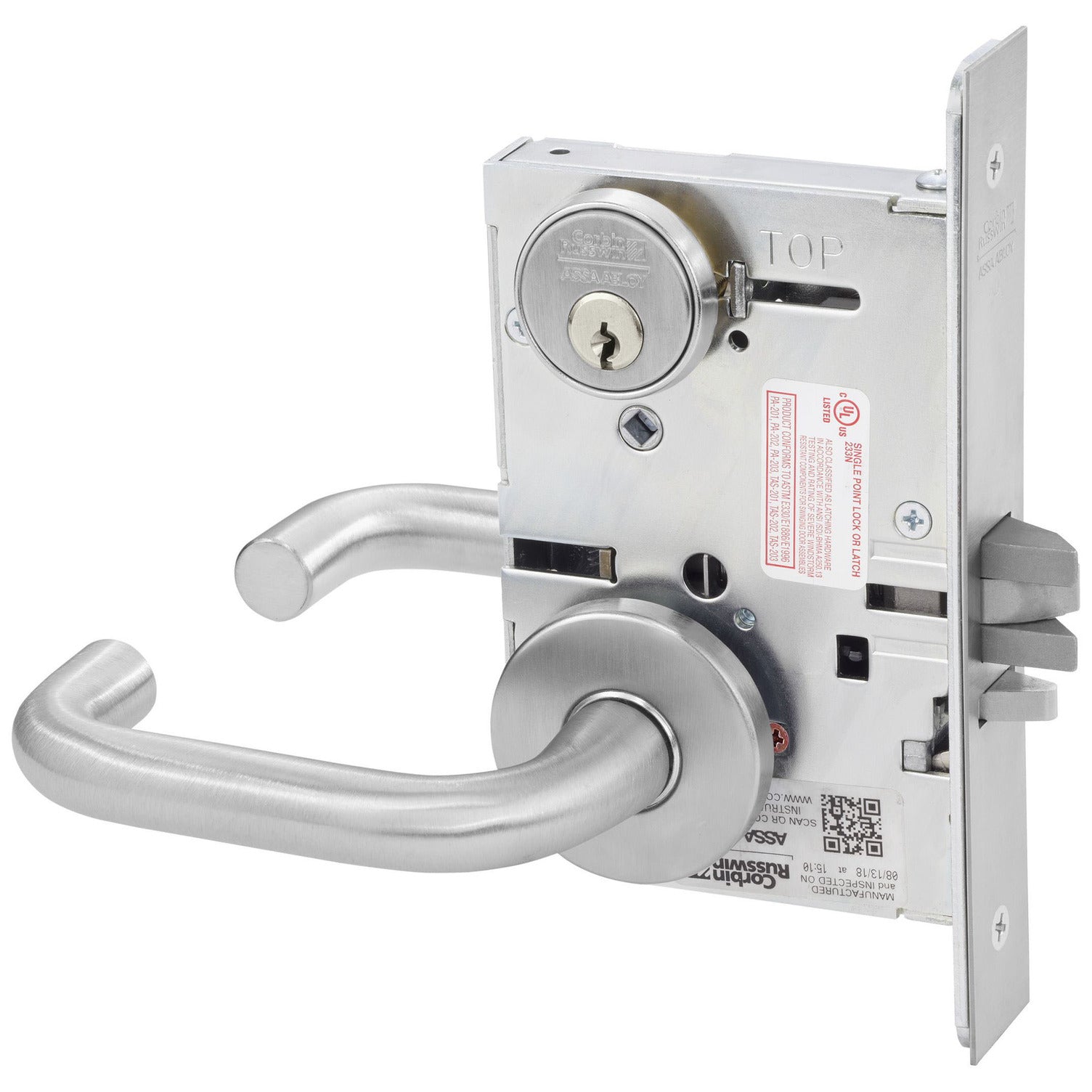

Corbin Russwin ML2055 Classroom Mortise Lock, LW Lever, A Rose, Satin Chrome ML2055 LWA 626
Sale price
$777.92
Regular price $1,360.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a mortise lock for commercial doors, set into a pocket cut in the door edge. It is built for classroom openings and is used by maintenance teams to replace worn locksets or outfit new doors. Part ML2055 LWA 626 is the LW Lever, A Rose version in Satin Chrome.
- LW Lever
- A Rose
- Finish 626 Satin Chrome
- Grade 1
- Fire rated: Yes
- ANSI A156.13, Series 1000, Grade 1, ANSI A117.1 (ADA)
- Part number ML2055 LWA 626
| PRODUCT SPECS | |
|---|---|
| SKU | ML2055 LWA 626 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Corbin Russwin |
| Series | ML2000 Series |
| ADA | Yes |
| Certification | ANSI A156.13, Series 1000, Grade 1, ANSI A117.1 (ADA) |
| Country of Origin | United States |
| Fire Rated | Yes |
| Grade | Grade 1 |
| Product Warranty | 10 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Brass Bronze |
| Can Be Keyed | Yes |
| Cylinder Type | Conventional |
| Deadbolt Throw (in) | Not Applicable |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Faceplate Dimensions | 1-1/8" x 8" |
| Function | Classroom |
| Includes Cylinder(s)? | Yes |
| Keyway | L4 Keyway |
| Latch Description | Dead Latch |
| Latch Throw (in) | 3/4" |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | LW |
| Maximum Door Thickness (in) | 1-3/4" |
| Minimum Door Thickness (in) | 1-3/4" |
| Pocket Dimensions | 6-5/8" X 4-1/2" |
| Projection (in) | 2-1/2" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Design | A |
| Rose/Escutcheon Dimensions (in) | 2-1/4" |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| Strike Number | SA118 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 9.75 |
| Box Height (#) | 6.5 |
| Box Weight (#) | 5.75 |
| Box Width (#) | 4.75 |
