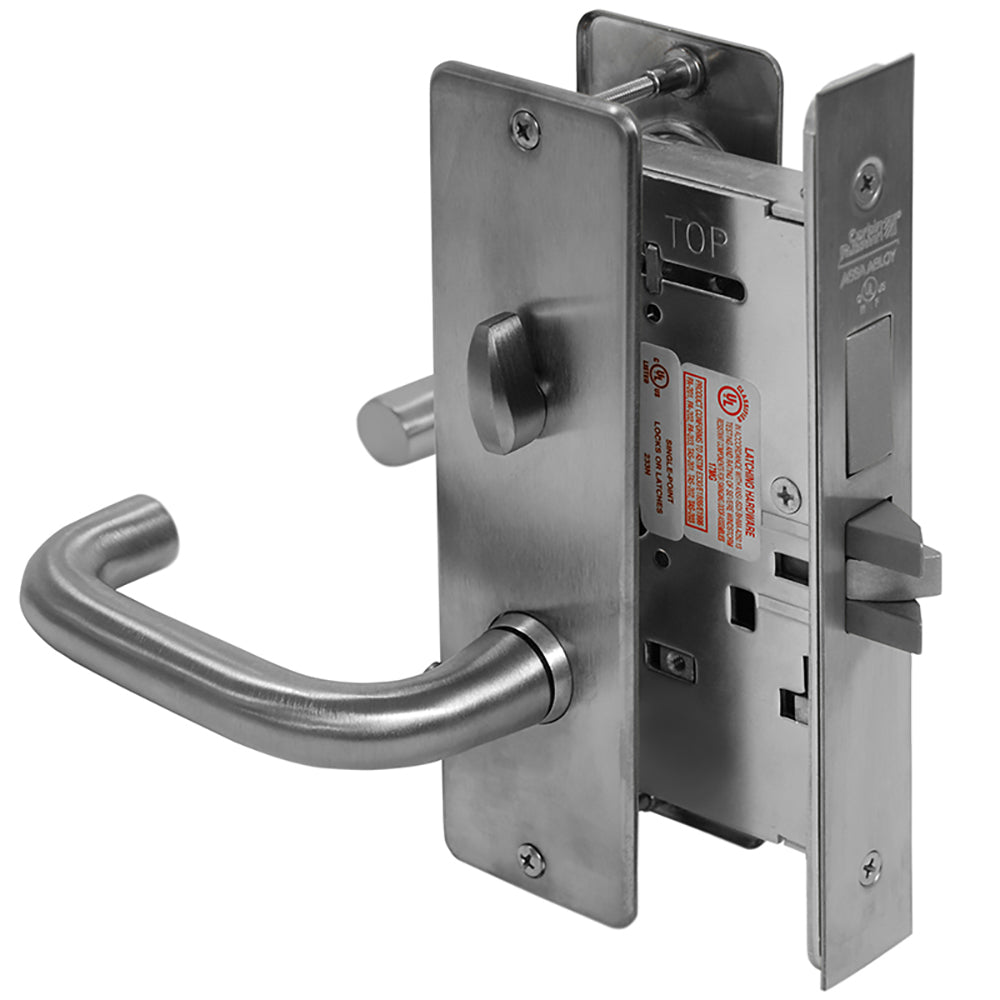

Corbin Russwin ML2030 Privacy, Bedroom or Bathroom Mortise Lock, LW Lever, A Rose, Satin Chrome ML2030 LWA 626
Sale price
$736.16
Regular price $1,287.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a mortise lock for interior doors that need a privacy function, such as bedrooms and bathrooms. It installs in a mortised pocket in the door edge and is operated by a lever on a rose. Corbin Russwin ML2000 Series hardware is a common choice for replacing worn mortise locks in multifamily and commercial buildings. Part ML2030 LWA 626 is the Bedroom or Bathroom Mortise Lock, LW Lever, A Rose version in Satin Chrome.
- Bedroom or Bathroom Mortise Lock
- LW Lever
- A Rose
- Finish 626 Satin Chrome
- Grade 1
- Fire rated: Yes
- ANSI A156.13, Series 1000, Grade 1, ANSI A117.1 (ADA)
- Part number ML2030 LWA 626
| PRODUCT SPECS | |
|---|---|
| SKU | ML2030 LWA 626 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Corbin Russwin |
| Series | ML2000 Series |
| ADA | Yes |
| Certification | ANSI A156.13, Series 1000, Grade 1, ANSI A117.1 (ADA) |
| Country of Origin | United States |
| Fire Rated | Yes |
| Grade | Grade 1 |
| Product Warranty | 10 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Brass Bronze |
| Can Be Keyed | No |
| Cylinder Type | Keyless |
| Deadbolt Throw (in) | Not Applicable |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Faceplate Dimensions | 1-1/8" x 8" |
| Function | Privacy |
| Includes Cylinder(s)? | No |
| Keyway | Not Applicable |
| Latch Description | Spring Latch |
| Latch Throw (in) | 3/4" |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | LW |
| Maximum Door Thickness (in) | 1-3/4" |
| Minimum Door Thickness (in) | 1-3/4" |
| Pocket Dimensions | 6-5/8" X 4-1/2" |
| Projection (in) | 2-1/2" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Design | A |
| Rose/Escutcheon Dimensions (in) | 2-1/4" |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| Strike Number | SA118 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 9.75 |
| Box Height (#) | 6.5 |
| Box Weight (#) | 5.75 |
| Box Width (#) | 4.75 |
