Corbin Russwin ED5400 Surface Vertical Rod Exit Device, 36, Satin Stainless Steel ED5400 630
Sale price
$1,999.14
Regular price $3,495.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview

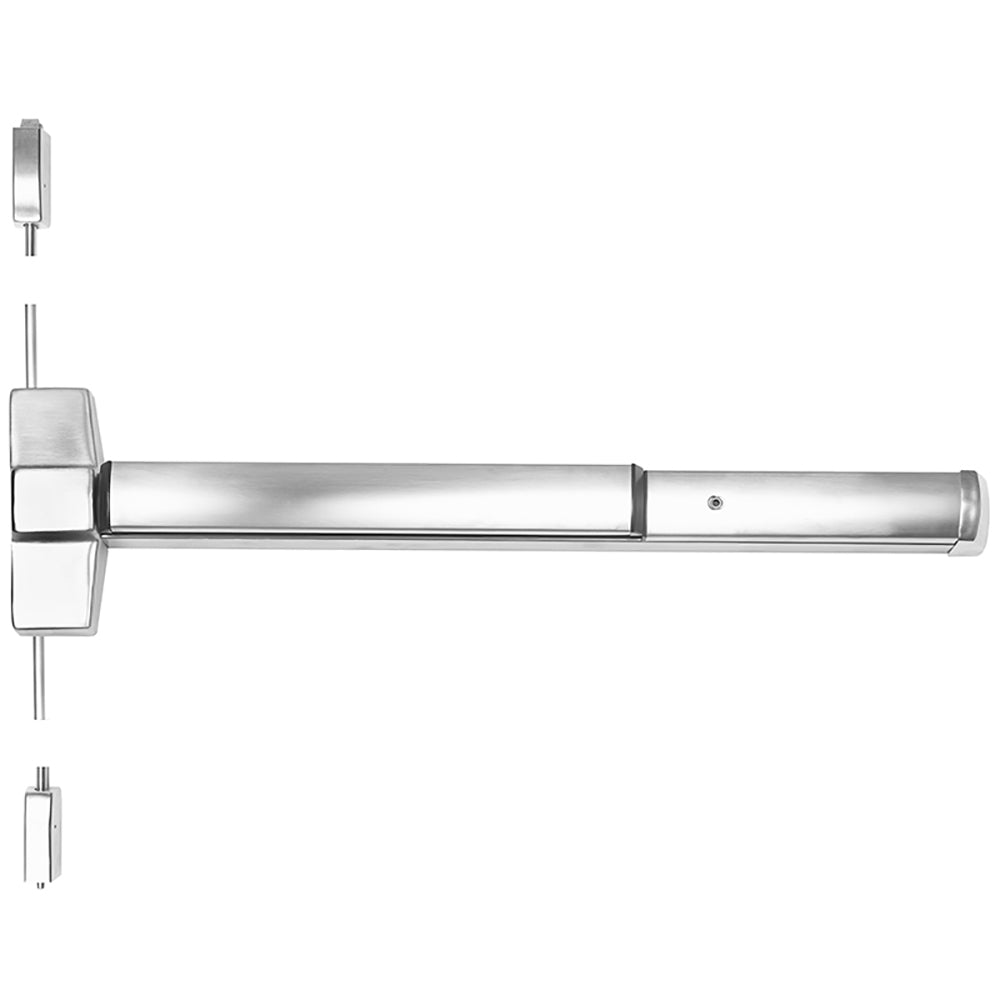

The ED5400 is a surface vertical rod exit device from Corbin Russwin. It mounts on the face of the door and uses vertical rods to latch the door at the top and bottom. We supply it for panic egress doors that need an exit device only. Part ED5400 630 is the 36 version in Satin Stainless Steel.
- 36
- Finish 630 Satin Stainless Steel
- Grade 1
- ANSI A156.3, Type 28, Grade 1, A117.1, UL Listed
- Part number ED5400 630
| PRODUCT SPECS | |
|---|---|
| SKU | ED5400 630 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Corbin Russwin |
| Series | ED5000 Series |
| Certification | ANSI A156.3, Type 28, Grade 1, A117.1, UL Listed |
| Commercial/Residential | Commercial |
| Country of Origin | Mexico |
| Fire Rated | No |
| Grade | Grade 1 |
| Product Warranty | 5 Year Warranty |
| Type | Surface Vertical Rod Exit Device |
| UOM | 1 |
| UPC | 840067639641 |
| PRODUCT FINISH | |
|---|---|
| Finish | 630 |
| Finish Description | Stainless Steel |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Stainless Steel |
| Center Case Dimensions | 3-1/8" x 8-3/16" |
| Cylinder Type | Keyless |
| Dogging Option | Yes |
| Dogging Type | Hex Key Dogging |
| Door Handing | Non-handed |
| Door Height (in) | 84" |
| Door Material | Metal/Wood |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Door Width Maximum (#) | 36 |
| Door Width Minimum (#) | 30 |
| Electronic | No |
| End Cap Material | Metal |
| Function | Exit Only |
| Includes Cylinder(s)? | No |
| Keyway | Not Applicable |
| Latch Description | Top - Bottom Latchbolts |
| Latch Throw (in) | 3/4" |
| Maximum Door Thickness (in) | 1-3/4" |
| Minimum Door Thickness (in) | 1-3/4" |
| Minimum Stile (in) | 4-1/2" |
| Projection (in) | 3-1/4" |
| Screw Pack | Machine Screws |
| Selling Quantity | 1 |
| Strike Number | 650F54-8 |
| PRODUCT DIMENSIONS | |
|---|---|
| Product Width (in) | 36" |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 39.75 |
| Box Height (#) | 5.75 |
| Box Weight (#) | 16.1 |
| Box Width (#) | 10.25 |
