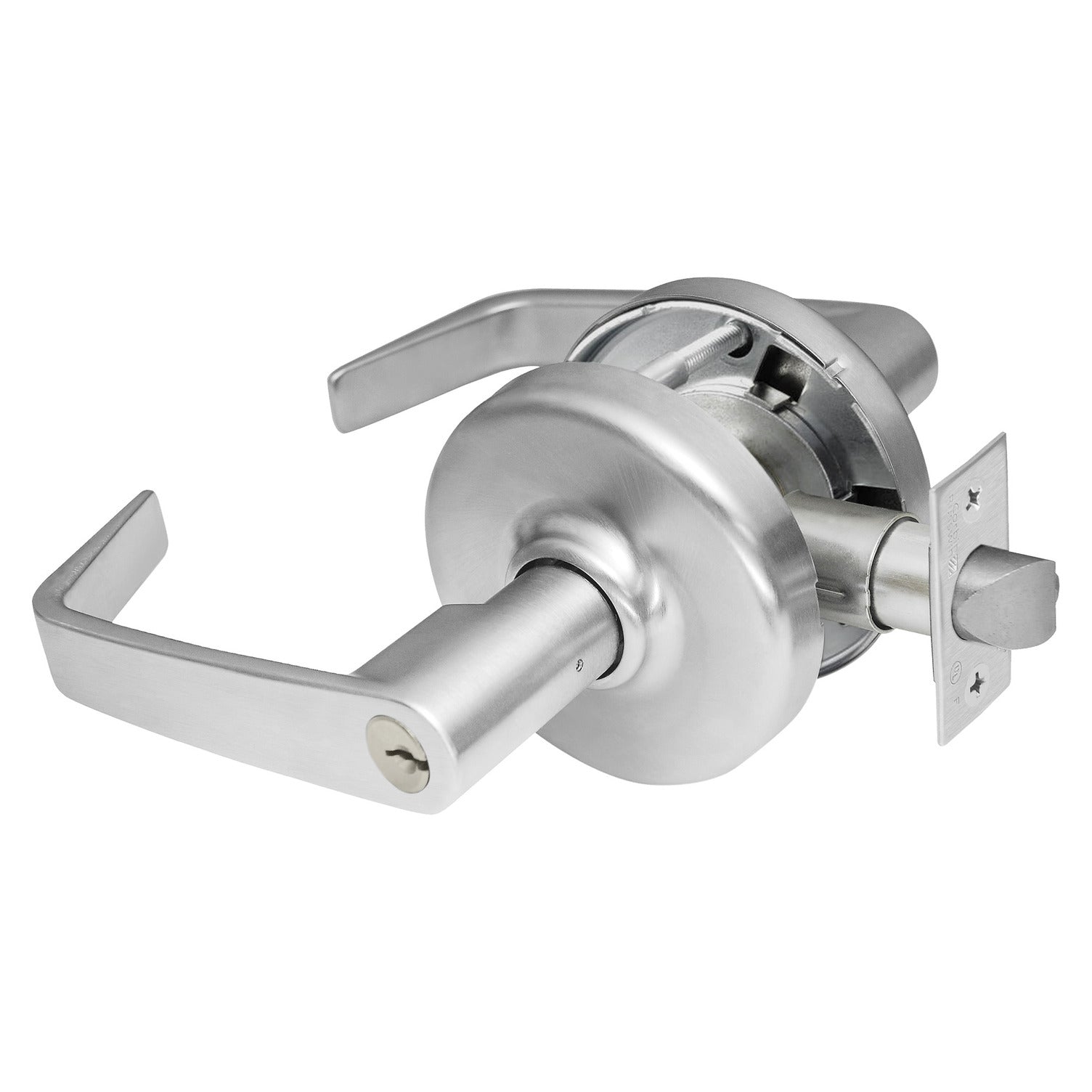

Corbin Russwin CL3861 Grade 2 Entry or Office Cylindrical Lock, Newport Lever, Conventional Cylinder, Satin Chrome CL3861 NZD 626
Sale price
$272.84
Regular price $477.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a cylindrical lock for standard door preps in commercial and multifamily openings. It mounts through the door with a latch and a lever on each side. Property maintenance teams use it to replace worn locksets on entry and office doors. Part CL3861 NZD 626 is the Newport Lever, Conventional Cylinder version in Satin Chrome.
- Newport Lever
- Conventional Cylinder
- Finish 626 Satin Chrome
- Grade 2
- Fire rated: Yes
- ANSI A156.2, Series 4000, Grade 2, A117.1, UL Listed
- Part number CL3861 NZD 626
| PRODUCT SPECS | |
|---|---|
| SKU | CL3861 NZD 626 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Corbin Russwin |
| Series | CL3800 Series |
| ADA | Yes |
| Certification | ANSI A156.2, Series 4000, Grade 2, A117.1, UL Listed |
| Commercial/Residential | Commercial |
| Country of Origin | United States |
| Fire Rated | Yes |
| Grade | Grade 2 |
| Product Warranty | 7 Year Limited Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Brass Bronze |
| Bore Hole Diameter (in) | 2-1/8" |
| Can Be Keyed | Yes |
| Cylinder Type | Conventional |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 1-7/8" |
| Function | Office |
| Includes Cylinder(s)? | Yes |
| Keyway | L4 Keyway |
| Latch Description | Dead Latch |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 600F10 |
| Latch Throw (in) | 1/2" |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | Newport |
| Maximum Door Thickness (in) | 1-7/8" |
| Minimum Door Thickness (in) | 1-3/8" |
| Projection (in) | 2-13/16" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Design | D |
| Rose/Escutcheon Dimensions (in) | 3-1/2" |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| Strike Number | 217L13 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 10 |
| Box Height (#) | 4.5 |
| Box Weight (#) | 4.1 |
| Box Width (#) | 7.5 |
