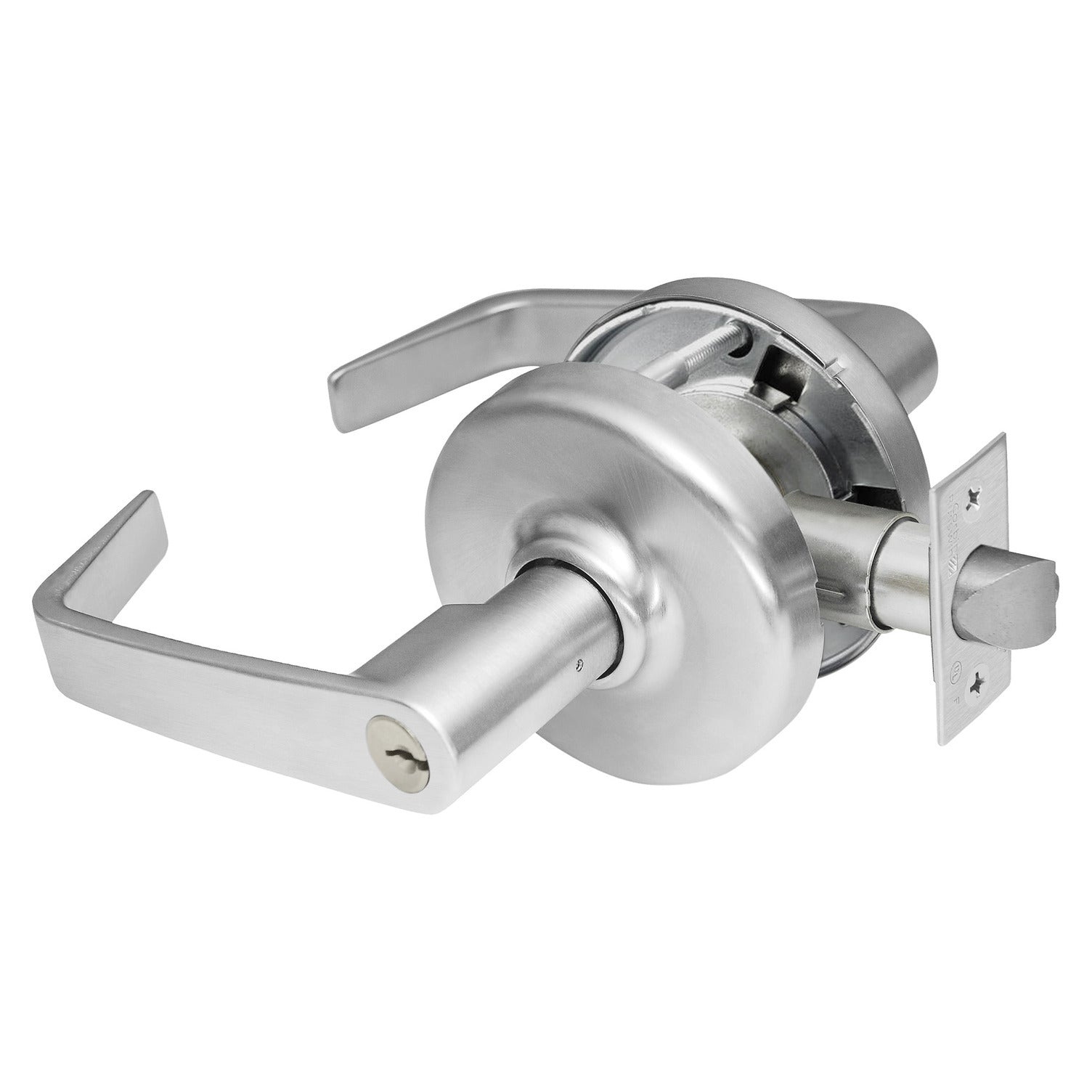

Corbin Russwin CL3855 Grade 2 Classroom Cylindrical Lock, Newport Lever, Conventional Cylinder, Satin Chrome CL3855 NZD 626
Sale price
$272.84
Regular price $477.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a Corbin Russwin CL3855 cylindrical lock from the CL3800 Series. It mounts in a standard bored door preparation and secures interior and commercial openings such as classrooms. Lever style, cylinder and finish vary by SKU. Part CL3855 NZD 626 is the Newport Lever, Conventional Cylinder version in Satin Chrome.
- Newport Lever
- Conventional Cylinder
- Finish 626 Satin Chrome
- Grade 2
- Fire rated: Yes
- ANSI A156.2, Series 4000, Grade 2, A117.1, UL Listed
- Part number CL3855 NZD 626
| PRODUCT SPECS | |
|---|---|
| SKU | CL3855 NZD 626 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Corbin Russwin |
| Series | CL3800 Series |
| ADA | Yes |
| Certification | ANSI A156.2, Series 4000, Grade 2, A117.1, UL Listed |
| Commercial/Residential | Commercial |
| Country of Origin | United States |
| Fire Rated | Yes |
| Grade | Grade 2 |
| Product Warranty | 7 Year Limited Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Brass Bronze |
| Bore Hole Diameter (in) | 2-1/8" |
| Can Be Keyed | Yes |
| Cylinder Type | Conventional |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 1-7/8" |
| Function | Classroom |
| Includes Cylinder(s)? | Yes |
| Keyway | L4 Keyway |
| Latch Description | Dead Latch |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 600F10 |
| Latch Throw (in) | 1/2" |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | Newport |
| Maximum Door Thickness (in) | 1-7/8" |
| Minimum Door Thickness (in) | 1-3/8" |
| Projection (in) | 2-13/16" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Design | D |
| Rose/Escutcheon Dimensions (in) | 3-1/2" |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| Strike Number | 217L13 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 10 |
| Box Height (#) | 4.5 |
| Box Weight (#) | 4.1 |
| Box Width (#) | 7.5 |
