Corbin Russwin CL3820 Grade 2 Privacy Bedroom or Bathroom Cylindrical Lock, Newport Lever, Satin Chrome CL3820 NZD 626
Sale price
$228.80
Regular price $400.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview

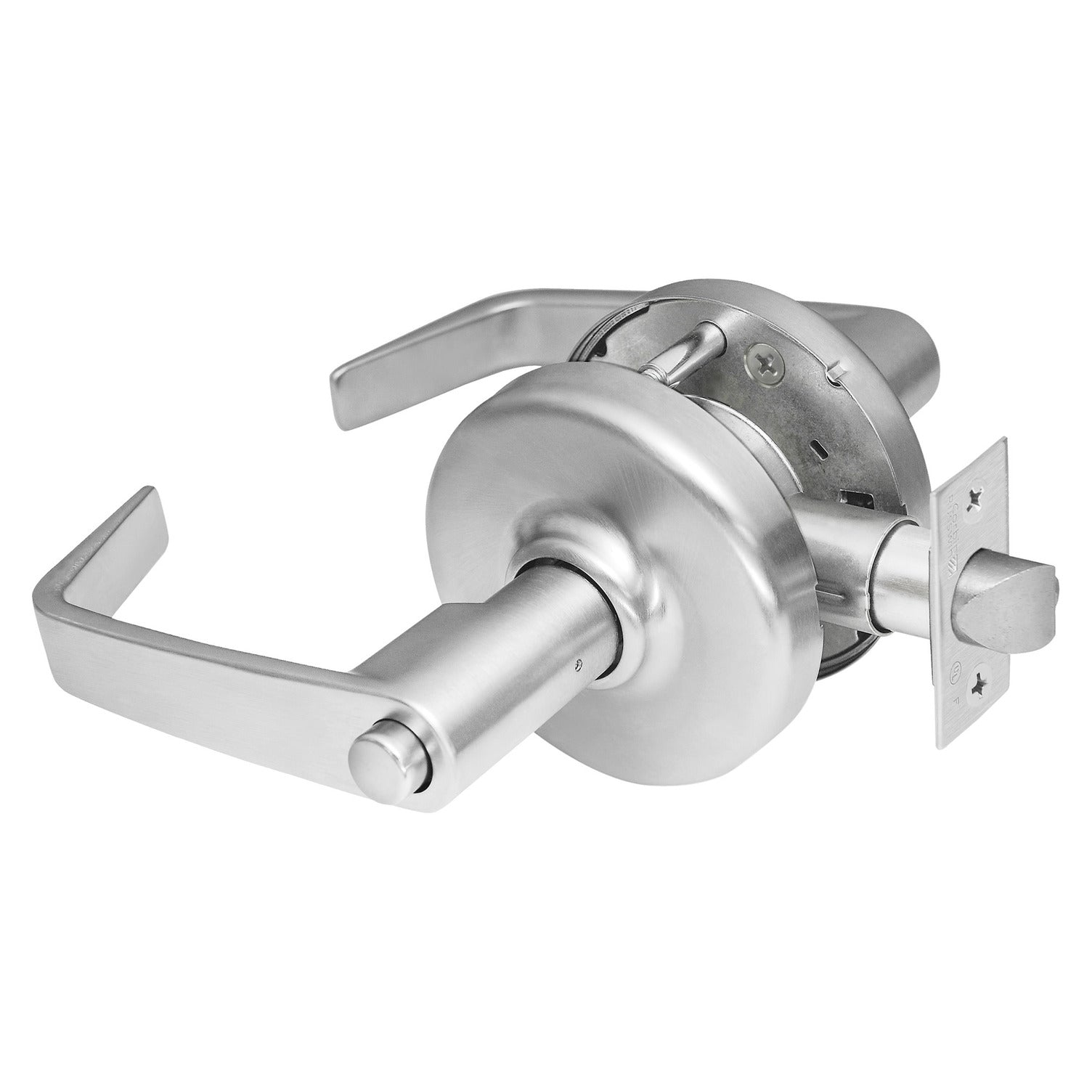

This is a cylindrical privacy lock for bedroom and bathroom doors. It locks from the inside to give the room occupant privacy. Corbin Russwin makes it for commercial and multifamily openings. Part CL3820 NZD 626 is the Newport Lever version in Satin Chrome.
- Newport Lever
- Finish 626 Satin Chrome
- Grade 2
- Fire rated: Yes
- ANSI A156.2, Series 4000, Grade 2, A117.1, UL Listed
- Part number CL3820 NZD 626
| PRODUCT SPECS | |
|---|---|
| SKU | CL3820 NZD 626 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Corbin Russwin |
| Series | CL3800 Series |
| ADA | Yes |
| Certification | ANSI A156.2, Series 4000, Grade 2, A117.1, UL Listed |
| Commercial/Residential | Commercial |
| Country of Origin | United States |
| Fire Rated | Yes |
| Grade | Grade 2 |
| Product Warranty | 7 Year Limited Warranty |
| UOM | 1 |
| UPC | 840067632611 |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Brass Bronze |
| Bore Hole Diameter (in) | 2-1/8" |
| Can Be Keyed | No |
| Cylinder Type | Keyless |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 1-7/8" |
| Electronic | No |
| Function | Privacy |
| Includes Cylinder(s)? | No |
| Keyway | Not Applicable |
| Latch Bore Diameter (in) | 1" |
| Latch Description | Dead Latch |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 600F11 |
| Latch Throw (in) | 1/2" |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | Newport |
| Maximum Door Thickness (in) | 1-7/8" |
| Minimum Door Thickness (in) | 1-3/8" |
| Projection (in) | 2-13/16" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Design | D |
| Rose/Escutcheon Dimensions (in) | 3-1/2" |
| Selling Quantity | 1 |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| Strike Number | 217L13 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 10 |
| Box Height (#) | 4.5 |
| Box Weight (#) | 4.1 |
| Box Width (#) | 7.5 |
