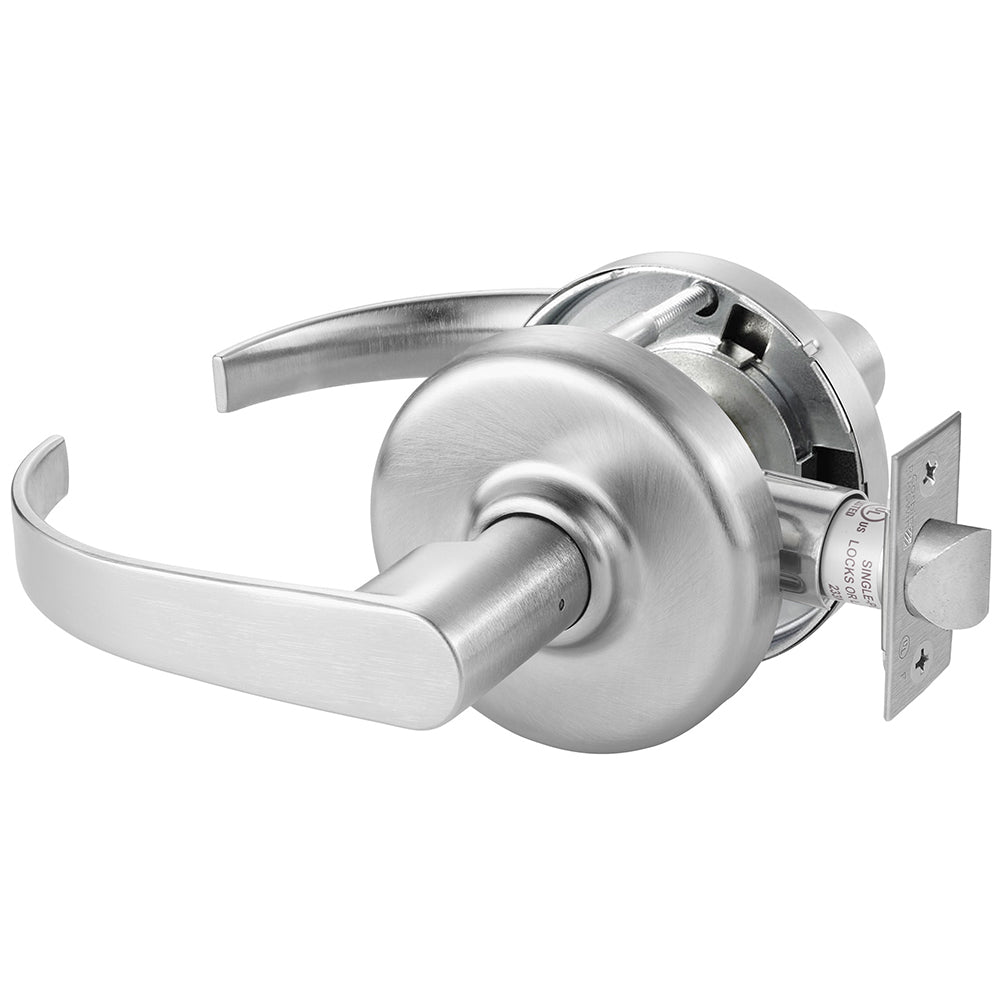

Corbin Russwin CL3510 Grade 1 Passage/Closet Cylindrical Lock, Princeton Lever, Non-Keyed, Satin Chrome CL3510 PZD 626
Sale price
$360.93
Regular price $631.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a cylindrical passage and closet lock for interior doors that need a latch but no key. It holds the door closed and opens with a turn of the lever from either side. We supply it for maintenance teams replacing worn passage sets. Part CL3510 PZD 626 is the Princeton Lever, Non-Keyed version in Satin Chrome.
- Princeton Lever
- Non-Keyed
- Finish 626 Satin Chrome
- Grade 1
- Fire rated: Yes
- ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
- Part number CL3510 PZD 626
| PRODUCT SPECS | |
|---|---|
| SKU | CL3510 PZD 626 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Corbin Russwin |
| Series | CL3500 Series |
| ADA | Yes |
| Certification | ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed |
| Commercial/Residential | Commercial |
| Country of Origin | United States |
| Fire Rated | Yes |
| Grade | Grade 1 |
| Product Warranty | 7 Year Limited Warranty |
| UOM | 1 |
| UPC | 840067631805 |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/4" |
| Base Material | Brass Bronze |
| Bore Hole Diameter (in) | 2-1/8" |
| Can Be Keyed | No |
| Cylinder Type | Keyless |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 1-3/4" |
| Electronic | No |
| Function | Passage |
| Includes Cylinder(s)? | No |
| Keyway | Not Applicable |
| Latch Bore Diameter (in) | 1" |
| Latch Description | Spring Latch |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 600F09 |
| Latch Throw (in) | 1/2" |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | Princeton |
| Maximum Door Thickness (in) | 1-3/4" |
| Minimum Door Thickness (in) | 1-3/8" |
| Projection (in) | 2-13/16" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Design | D |
| Rose/Escutcheon Dimensions (in) | 3-1/2" |
| Selling Quantity | 1 |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| Strike Number | 217L13 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 10 |
| Box Height (#) | 4.5 |
| Box Weight (#) | 4.1 |
| Box Width (#) | 7.5 |
