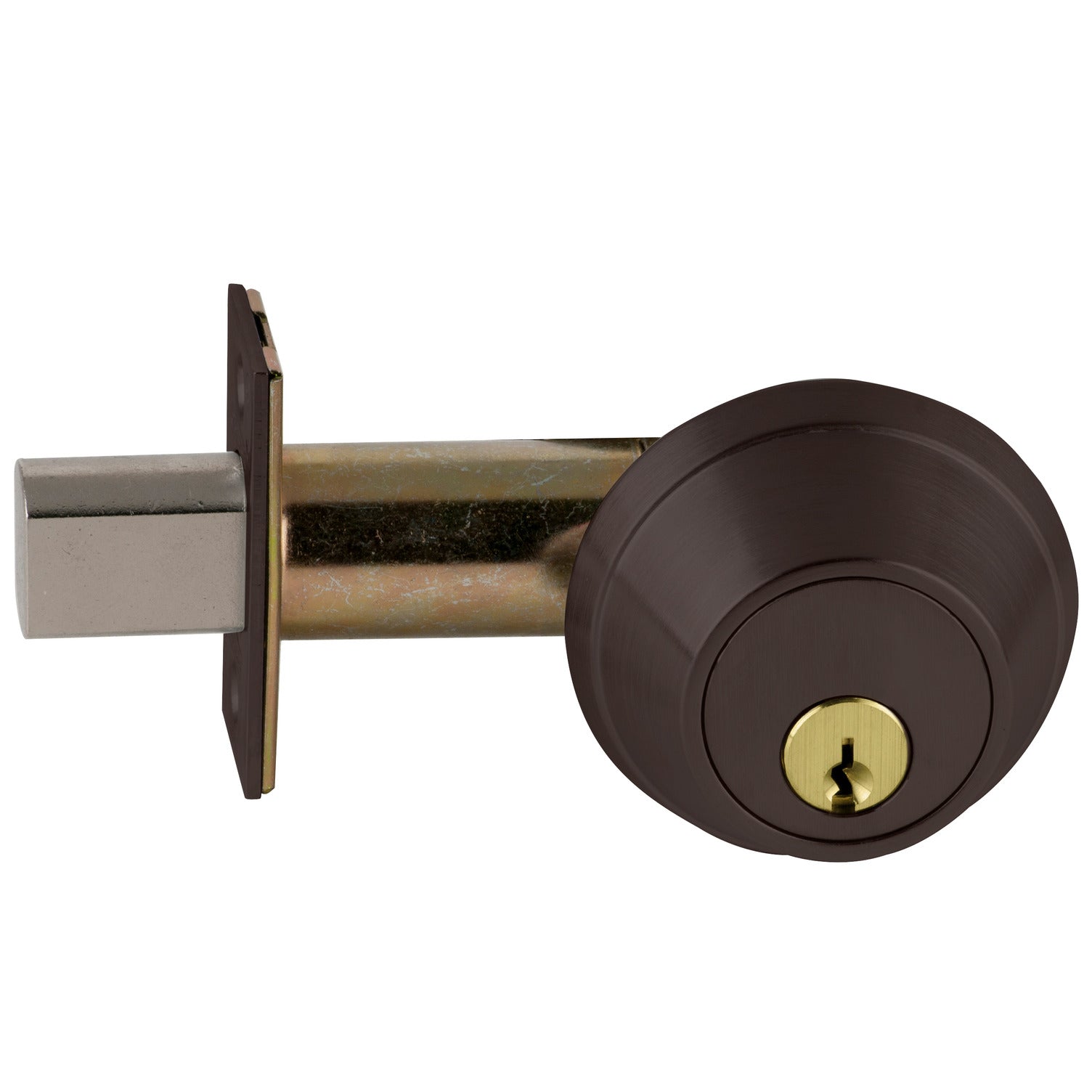

Schlage B664P Grade 1 Cylinder Deadbolt, Cylinder Outside x No Inside Trim, 2-3/4 Backset, Oil-Rubbed Bronze B664P 613
Sale price
$208.10
Regular price $348.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a Schlage B664P cylinder deadbolt for swinging doors. It adds a keyed deadbolt to the door for added security. It is a common repair and replacement part for building entry and unit doors. Schlage is an Allegion brand. Part B664P 613 is the Cylinder Outside x No Inside Trim, 2-3/4 Backset, Conventional 6-Pin Cylinder, Keyed 5 version in Oil-Rubbed Bronze.
- Cylinder Outside x No Inside Trim
- 2-3/4 Backset
- Conventional 6-Pin Cylinder
- Keyed 5
- Finish 613 Oil-Rubbed Bronze
- Grade 1
- Part number B664P 613
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Schlage |
| Commercial/Residential | Light Duty Commercial |
| Country of Origin | Mexico |
| Grade | Grade 1 |
| Product Warranty | 3 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 613 |
| Finish Description | Oil Rubbed Bronze |
| TECHNICAL SPECS | |
|---|---|
| SKU | B664P 613 |
| Series | B600 Series |
| Main Category | Locksets |
| Sub-Category 1 | Deadbolts |
| Base Material | Bronze |
| Bore Hole Diameter (#) | 2.125 |
| Can Be Keyed | Yes |
| Cylinder Type | Conventional |
| Deadbolt Throw (#) | 1 |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/4" - 2" |
| Electronic | No |
| Function | Cylinder |
| Keyway | C Keyway |
| Latch Throw (#) | 1 |
| Latch Description | Square Corner |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 12-631 |
| Maximum Door Thickness (#) | 2 |
| Minimum Door Thickness (#) | 1.625 |
| Number of Keys | 2 |
| Number of Pins | 6 |
| Strike Description | Rectangle Strike |
| Strike Dimensions | 1-1/8" x 2-3/4" |
| PRODUCT DIMENSIONS | |
|---|---|
| Projection (#) | 1.25 |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 6 |
| Box Height (#) | 3 |
| Box Weight (#) | 5 |
| Box Width (#) | 4.3 |
