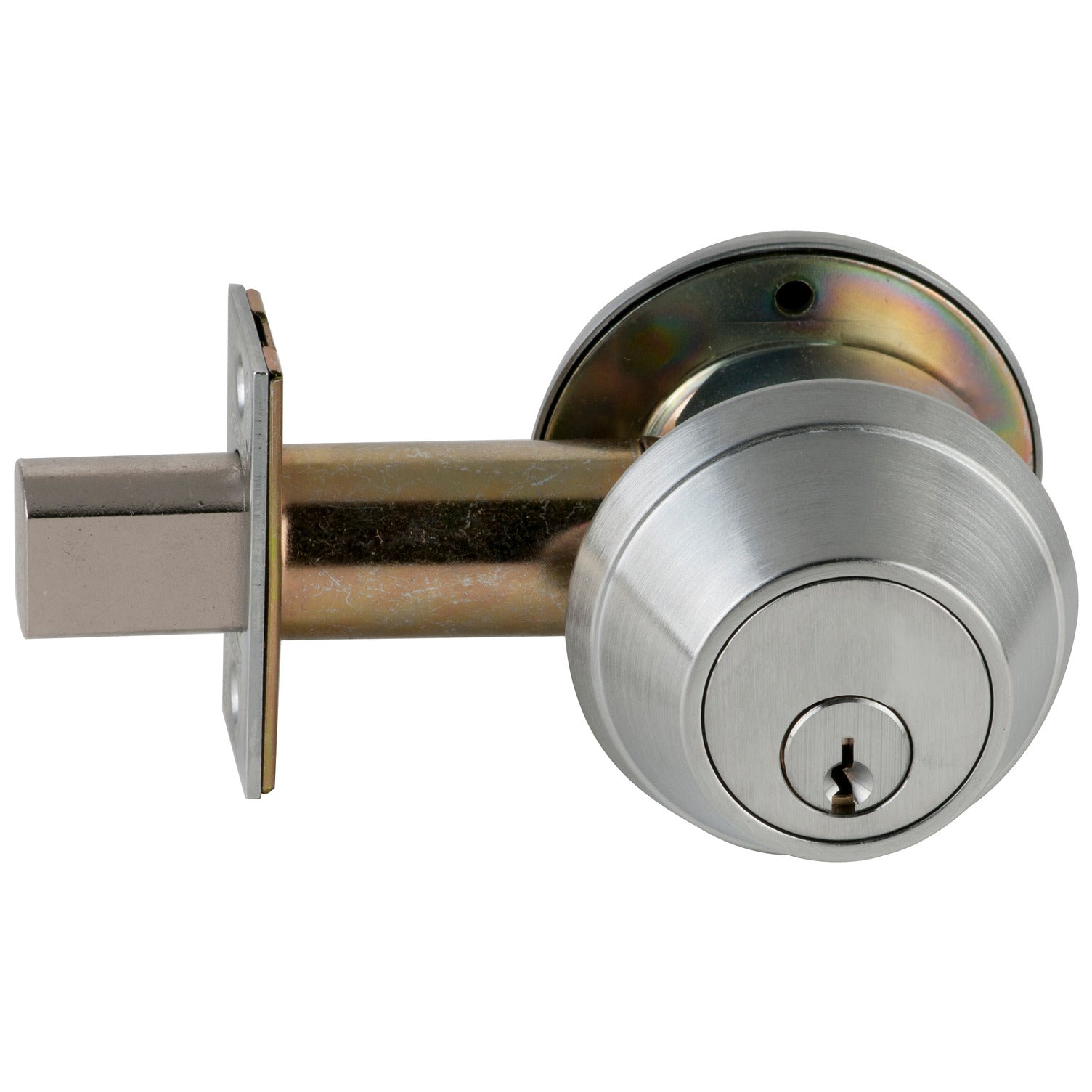

Schlage B662P Grade 1 Double Cylinder Deadbolt, 2-3/4 Backset, Conventional 6-Pin Cylinder, Keyed 5, Satin Chrome B662P 626 C123
Sale price
$260.73
Regular price $436.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
The Schlage B662P is a double cylinder deadbolt for swinging doors. It has a 2-3/4 inch backset and uses a key on both sides of the door. Property managers use it to secure entry and unit doors. Schlage is an Allegion brand. Part B662P 626 C123 is the 2-3/4 Backset, Conventional 6-Pin Cylinder, Keyed 5, C123 Keyway version in Satin Chrome.
- 2-3/4 Backset
- Conventional 6-Pin Cylinder
- Keyed 5
- C123 Keyway
- Finish 626 Satin Chrome
- Grade 1
- Part number B662P 626 C123
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Schlage |
| Commercial/Residential | Light Duty Commercial |
| Country of Origin | Mexico |
| Grade | Grade 1 |
| Product Warranty | 3 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| SKU | B662P 626 C123 |
| Series | B600 Series |
| Main Category | Locksets |
| Sub-Category 1 | Deadbolts |
| Batteries Included | No |
| Battery Operated | No |
| Base Material | Brass Bronze |
| Bore Hole Diameter (#) | 2.125 |
| Can Be Keyed | Yes |
| Cylinder Type | Conventional |
| Deadbolt Throw (#) | 1 |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-5/8" - 2" |
| Electronic | No |
| Function | Double Cylinder |
| Keyway | C123 Keyway |
| Latch Throw (#) | 1 |
| Latch Description | Square Corner |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 12-631 |
| Maximum Door Thickness (#) | 2 |
| Minimum Door Thickness (#) | 1.625 |
| Number of Keys | 2 |
| Number of Pins | 6 |
| Strike Description | Rectangle Strike |
| Strike Dimensions | 1-1/8" x 2-3/4" |
| PRODUCT DIMENSIONS | |
|---|---|
| Projection (#) | 1.25 |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 6 |
| Box Height (#) | 3 |
| Box Weight (#) | 5 |
| Box Width (#) | 4.3 |
