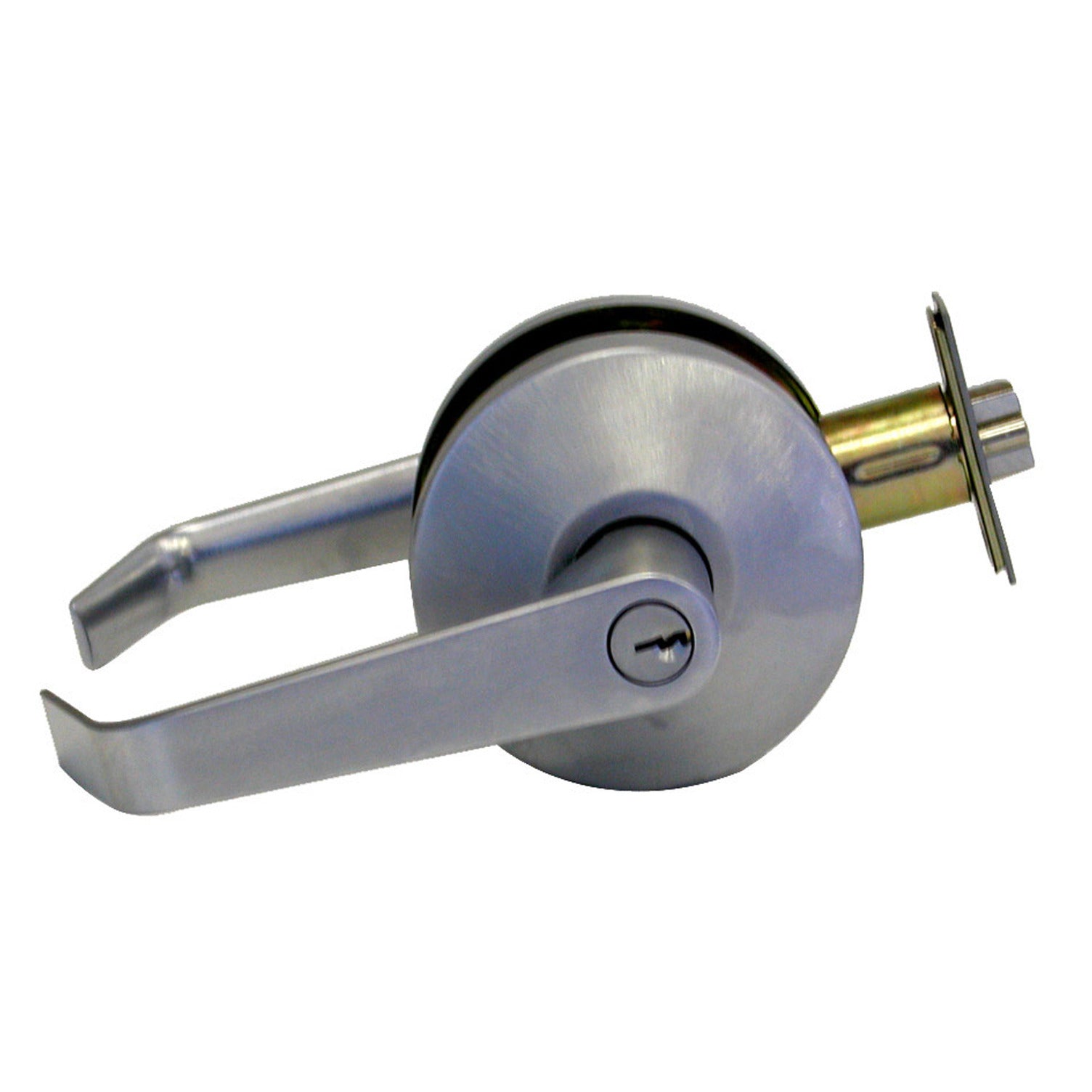

Falcon B611PD Grade 2 Cylindrical Lock, Dormitory/Corridor Function, Key in Lever Cylinder, Dane Lever, Satin Chrome B611PD D 626
Sale price
$186.15
Regular price $387.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a Grade 2 cylindrical lock with a key in the lever cylinder and a standard rose. It suits dormitory and corridor doors where the lock is keyed from the lever. Lever style and finish vary by part number. Falcon is an Allegion brand. Part B611PD D 626 is the Dormitory/Corridor Function, Key in Lever Cylinder, Dane Lever, Standard Rose version in Satin Chrome.
- Dormitory/Corridor Function
- Key in Lever Cylinder
- Dane Lever
- Standard Rose
- Finish 626 Satin Chrome
- Grade 2
- Fire rated: Yes
- Part number B611PD D 626
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Falcon |
| ADA | Yes |
| Commercial/Residential | Light Duty Commercial |
| Fire Rated | Yes |
| Grade | Grade 2 |
| Product Warranty | 10 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| SKU | B611PD D 626 |
| Series | B Series |
| Main Category | Locksets |
| Sub-Category 1 | Cylindrical |
| Backset (#) | 2.75 |
| Base Material | Brass Bronze |
| Bore Hole Diameter (#) | 2.125 |
| Can Be Keyed | Yes |
| Cylinder Type | Conventional |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 2" |
| Electronic | No |
| Function | Dormitory |
| Keyway | G Keyway |
| Latch Throw (#) | 0.5 |
| Latch Bore Diameter (#) | 1 |
| Latch Description | Dead Latch |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 57435 |
| Maximum Door Thickness (#) | 2 |
| Minimum Door Thickness (#) | 1.375 |
| Strike Description | ASA Strike |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| PRODUCT DIMENSIONS | |
|---|---|
| Projection (#) | 3.25 |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 8.25 |
| Box Height (#) | 9.5 |
| Box Weight (#) | 5 |
| Box Width (#) | 4.75 |
