$61.59

SKU B571 609

Skip to product information
Schlage B571 Grade 2 Door Bolt Occupancy Indicator, Adjustable 2-3/8 and 2-3/4 Backset, Satin Brass Blackened Satin Relieved B571 609
  • Schlage B571 Grade 2 Door Bolt Occupancy Indicator, Adjustable 2-3/8 and 2-3/4 Backset, Satin Brass Blackened Satin Relieved B571 609
Schlage B571 Grade 2 Door Bolt Occupancy Indicator, Adjustable 2-3/8 and 2-3/4 Backset, Satin Brass Blackened Satin Relieved B571 609
SchlageSKU B571 609

Schlage B571 Grade 2 Door Bolt Occupancy Indicator, Adjustable 2-3/8 and 2-3/4 Backset, Satin Brass Blackened Satin Relieved B571 609

$61.59  $103.00

Free shipping on orders over $295.

  • Veteran-owned
  • Since 1989
  • Member of NARPM

Overview

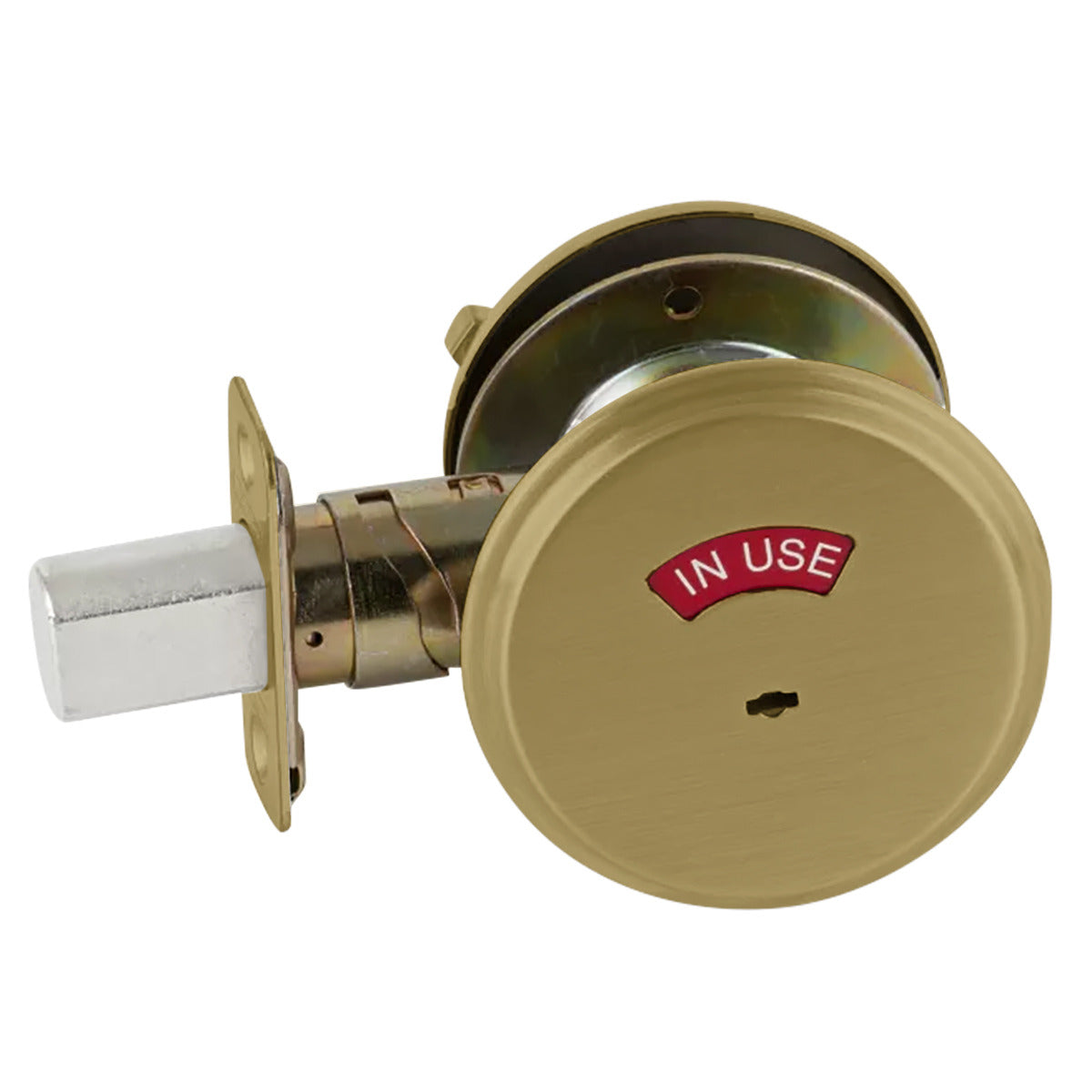

This is a Schlage B571 deadbolt with an occupancy indicator on the door bolt. The backset adjusts between 2-3/8 and 2-3/4 inches, so it fits the two common door preps. It suits interior doors that need a visible occupied or vacant status, such as restrooms and meeting rooms. Schlage is an Allegion brand. Part B571 609 is the Adjustable 2-3/8 and 2-3/4 Backset version in Satin Brass Blackened Satin Relieved.

  • Adjustable 2-3/8 and 2-3/4 Backset
  • Finish Satin Brass Blackened Satin Relieved
  • Grade 2
  • Part number B571 609
PRODUCT SPECS
Manufacturer Schlage
Commercial/Residential Light Duty Commercial
Country of Origin Mexico
Grade Grade 2
Product Warranty 3 Year Warranty
PRODUCT FINISH
Finish 609
Finish Description Antique Brass
TECHNICAL SPECS
SKU B571 609
Series B500 Series
Main Category Locksets
Sub-Category 1 Deadbolts
Base Material Brass
Bore Hole Diameter (#) 2.125
Can Be Keyed No
Cylinder Type Keyless
Deadbolt Throw (#) 1
Door Handing Non-handed
Door Range (Thickness) 1-3/8" - 1-7/8"
Electronic No
Function Door Bolt with Occupancy Indicator
Latch Throw (#) 1
Latch Description Square Corner
Latch Dimensions 1" x 2-1/4"
Latch Number 12-288
Maximum Door Thickness (#) 1.875
Minimum Door Thickness (#) 1.375
Number of Keys 0
Strike Description Rectangle Strike
Strike Dimensions 1-1/8" x 2-3/4"
PRODUCT DIMENSIONS
Projection (#) 1.25
PACKAGE DIMENSIONS
Box Depth (#) 6
Box Height (#) 3
Box Weight (#) 1.5
Box Width (#) 4.3
