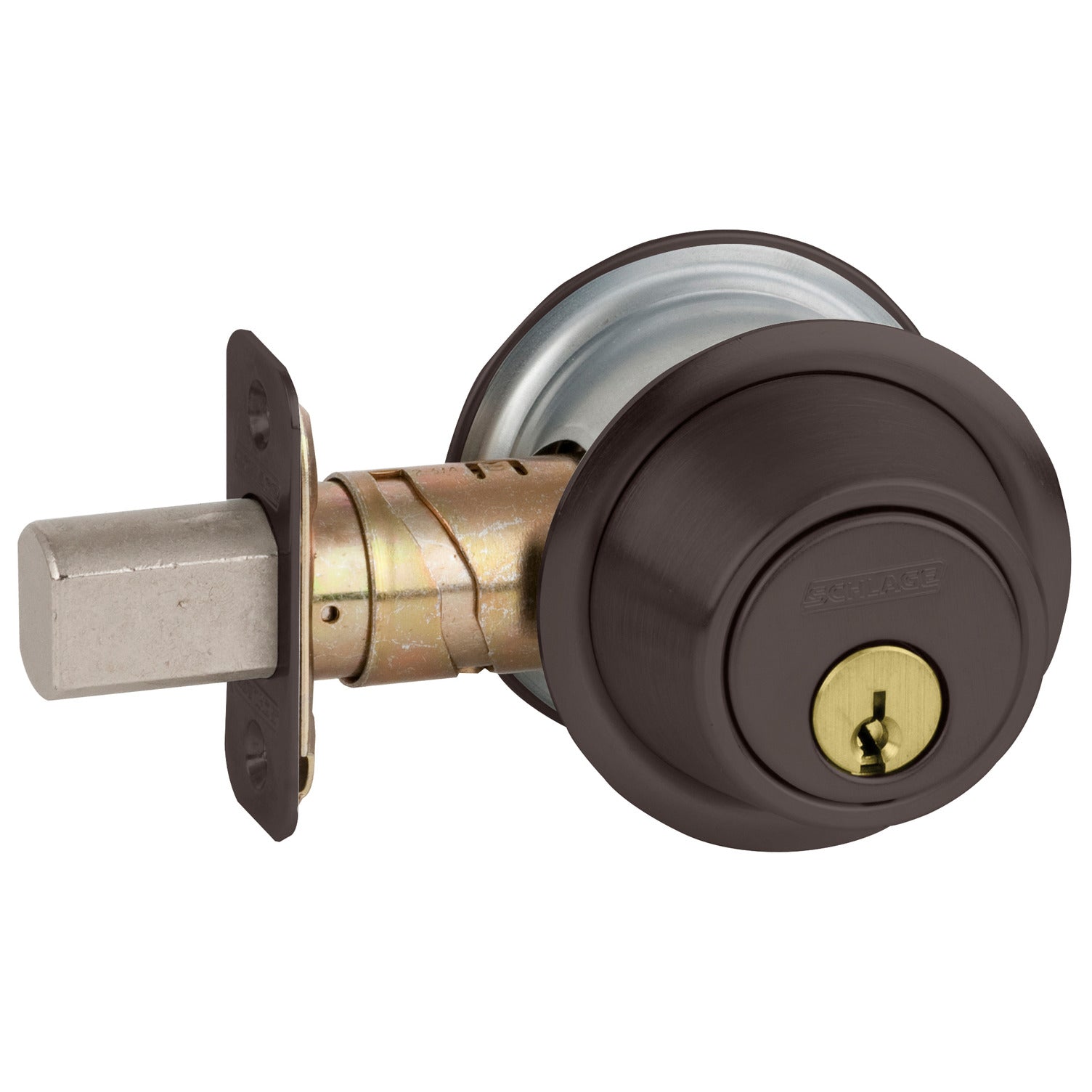

Schlage B563P Grade 2 Classroom Deadbolt, Conventional Cylinder, Adjustable 2-3/8 and 2-3/4 Backset, Oil-Rubbed Bronze B563P 613
  • Schlage B563P Grade 2 Classroom Deadbolt, Conventional Cylinder, Adjustable 2-3/8 and 2-3/4 Backset, Oil-Rubbed Bronze B563P 613
Schlage B563P Grade 2 Classroom Deadbolt, Conventional Cylinder, Adjustable 2-3/8 and 2-3/4 Backset, Oil-Rubbed Bronze B563P 613
SchlageSKU B563P 613

Schlage B563P Grade 2 Classroom Deadbolt, Conventional Cylinder, Adjustable 2-3/8 and 2-3/4 Backset, Oil-Rubbed Bronze B563P 613

$98.67  $165.00

Free shipping on orders over $295.

  • Veteran-owned
  • Since 1989
  • Member of NARPM

Overview

This is a Schlage B500 Series deadbolt for swinging doors. It has an adjustable backset that fits both 2-3/8 and 2-3/4 inch door preps. It suits classroom and similar room doors in schools and commercial buildings. Schlage is an Allegion brand. Part B563P 613 is the Conventional Cylinder, Adjustable 2-3/8 and 2-3/4 Backset version in Oil-Rubbed Bronze.

  • Conventional Cylinder
  • Adjustable 2-3/8 and 2-3/4 Backset
  • Finish 613 Oil-Rubbed Bronze
  • Grade 2
  • Part number B563P 613
PRODUCT SPECS
Manufacturer Schlage
Commercial/Residential Light Duty Commercial
Country of Origin Mexico
Grade Grade 2
Product Warranty 3 Year Warranty
PRODUCT FINISH
Finish 613
Finish Description Oil Rubbed Bronze
TECHNICAL SPECS
SKU B563P 613
Series B500 Series
Main Category Locksets
Sub-Category 1 Deadbolts
Base Material Bronze
Bore Hole Diameter (#) 2.125
Can Be Keyed Yes
Cylinder Type Conventional
Deadbolt Throw (#) 1
Door Handing Non-handed
Door Range (Thickness) 1-3/8" - 1-7/8"
Electronic No
Function Single Cylinder Classroom
Keyway C Keyway
Latch Throw (#) 1
Latch Description Square Corner
Latch Dimensions 1" x 2-1/4"
Latch Number 12-288
Maximum Door Thickness (#) 1.875
Minimum Door Thickness (#) 1.375
Number of Keys 2
Number of Pins 6
Strike Description Rectangle Strike
Strike Dimensions 1-1/8" x 2-3/4"
PRODUCT DIMENSIONS
Projection (#) 1.25
PACKAGE DIMENSIONS
Box Depth (#) 6
Box Height (#) 3
Box Weight (#) 1.5
Box Width (#) 4.3
