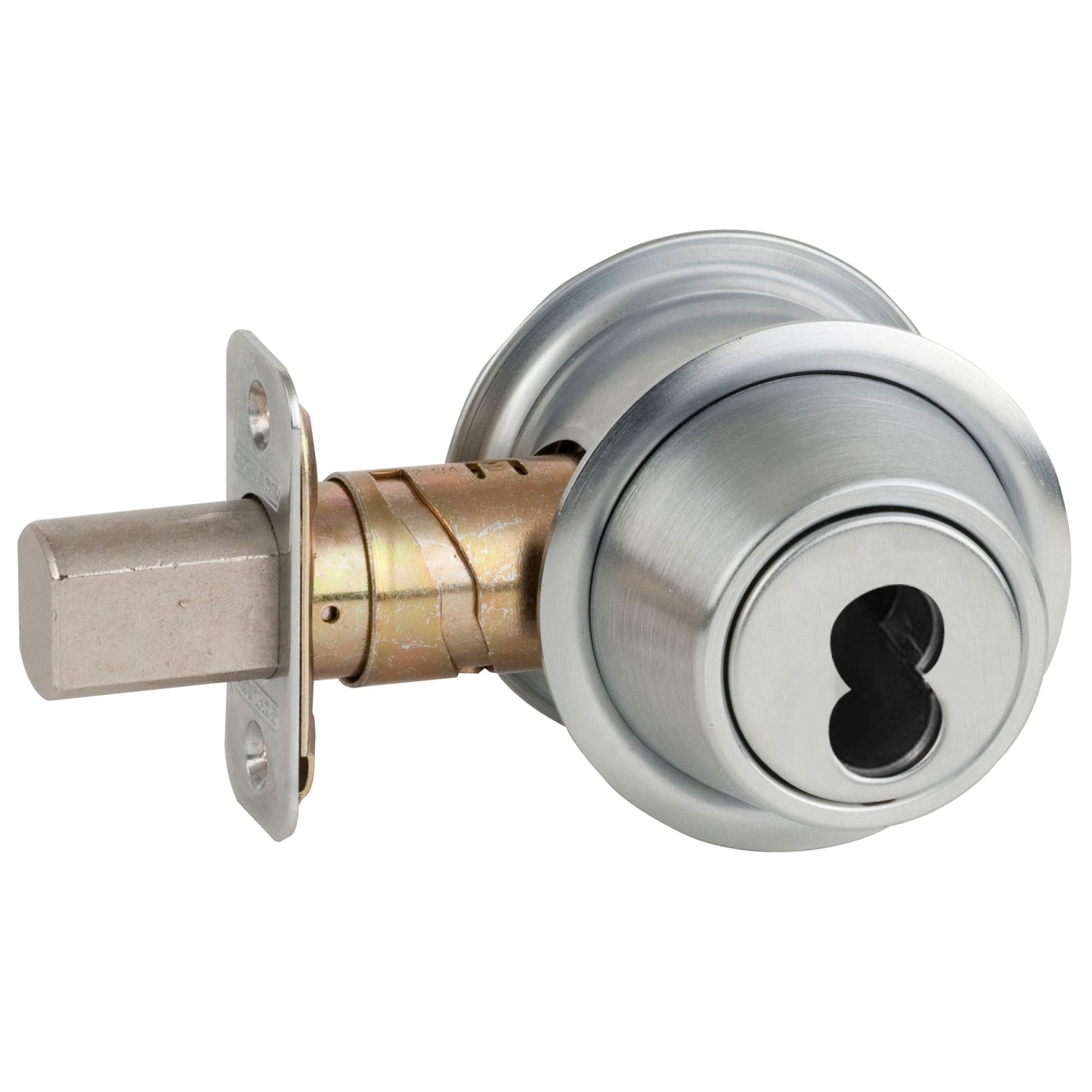

Schlage B563J Grade 2 Classroom Deadbolt, Schlage FSIC Less Core, Adjustable 2-3/8 and 2-3/4 Backset, Satin Chrome B563J 626
Sale price
$123.79
Regular price $207.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a deadbolt for classroom doors. It has a key cylinder on the outside and a thumbturn on the inside, and the backset adjusts to fit common door preps. Schlage is an Allegion brand. Part B563J 626 is the Schlage FSIC Less Core, Adjustable 2-3/8 and 2-3/4 Backset version in Satin Chrome.
- Schlage FSIC Less Core
- Adjustable 2-3/8 and 2-3/4 Backset
- Finish 626 Satin Chrome
- Grade 2
- Part number B563J 626
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Schlage |
| Commercial/Residential | Light Duty Commercial |
| Country of Origin | Mexico |
| Grade | Grade 2 |
| Product Warranty | 3 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 626 |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| SKU | B563J 626 |
| Series | B500 Series |
| Main Category | Locksets |
| Sub-Category 1 | Deadbolts |
| Base Material | Brass Bronze |
| Bore Hole Diameter (#) | 2.125 |
| Can Be Keyed | Yes |
| Cylinder Type | FSIC Housing |
| Deadbolt Throw (#) | 1 |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-5/8" - 2" |
| Electronic | No |
| Function | Single Cylinder Classroom |
| Keyway | Less Core |
| Latch Throw (#) | 1 |
| Latch Description | Square Corner |
| Latch Dimensions | 1" x 2-1/4" |
| Latch Number | 12-288 |
| Maximum Door Thickness (#) | 2 |
| Minimum Door Thickness (#) | 1.625 |
| Number of Keys | 2 |
| Strike Description | Rectangle Strike |
| Strike Dimensions | 1-1/8" x 2-3/4" |
| PRODUCT DIMENSIONS | |
|---|---|
| Projection (#) | 1.25 |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 6 |
| Box Height (#) | 3 |
| Box Weight (#) | 1.5 |
| Box Width (#) | 4.3 |
