Schlage B562P Grade 2 Double Cylinder Deadbolt, Conventional Cylinder, Satin Brass Blackened Satin Relieved B562P 609
Sale price
$117.21
Regular price $196.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview

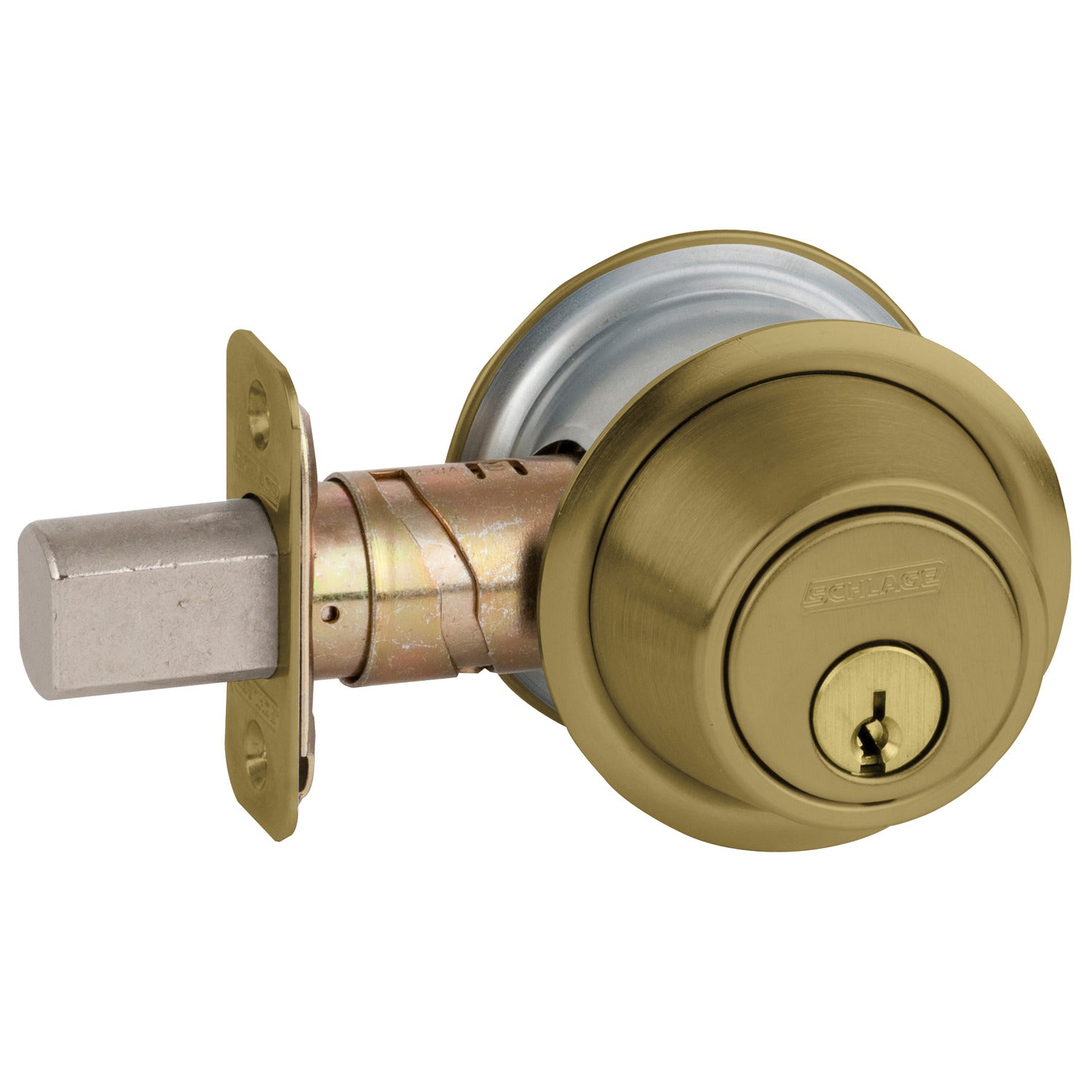

The Schlage B562P is a double cylinder deadbolt for swinging doors. It has an adjustable backset that fits both 2-3/8 and 2-3/4 inch door preps. It adds a keyed deadbolt to an entry or other door that needs added security. Schlage is an Allegion brand. Part B562P 609 is the Conventional Cylinder, Adjustable 2-3/8 and 2-3/4 Backset version in Satin Brass Blackened Satin Relieved.
- Conventional Cylinder
- Adjustable 2-3/8 and 2-3/4 Backset
- Finish Satin Brass Blackened Satin Relieved
- Grade 2
- Part number B562P 609
| PRODUCT SPECS | |
|---|---|
| Manufacturer | Schlage |
| Commercial/Residential | Light Duty Commercial |
| Country of Origin | Mexico |
| Grade | Grade 2 |
| Product Warranty | 3 Year Warranty |
| PRODUCT FINISH | |
|---|---|
| Finish | 609 |
| Finish Description | Antique Brass |
| TECHNICAL SPECS | |
|---|---|
| SKU | B562P 609 |
| Series | B500 Series |
| Main Category | Locksets |
| Sub-Category 1 | Deadbolts |
| Base Material | Brass |
| Bore Hole Diameter (#) | 2.125 |
| Can Be Keyed | Yes |
| Cylinder Type | Conventional |
| Deadbolt Throw (#) | 1 |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 1-7/8" |
| Electronic | No |
| Function | Double Cylinder |
| Keyway | C Keyway |
| Latch Throw (#) | 1 |
| Latch Description | Square Corner |
| Latch Dimensions | 1" x 2-1/4" |
| Latch Number | 12-288 |
| Maximum Door Thickness (#) | 1.875 |
| Minimum Door Thickness (#) | 1.375 |
| Number of Keys | 2 |
| Number of Pins | 6 |
| Strike Description | Rectangle Strike |
| Strike Dimensions | 1-1/8" x 2-3/4" |
| PRODUCT DIMENSIONS | |
|---|---|
| Projection (#) | 1.25 |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 6 |
| Box Height (#) | 3 |
| Box Weight (#) | 1.5 |
| Box Width (#) | 4.3 |
