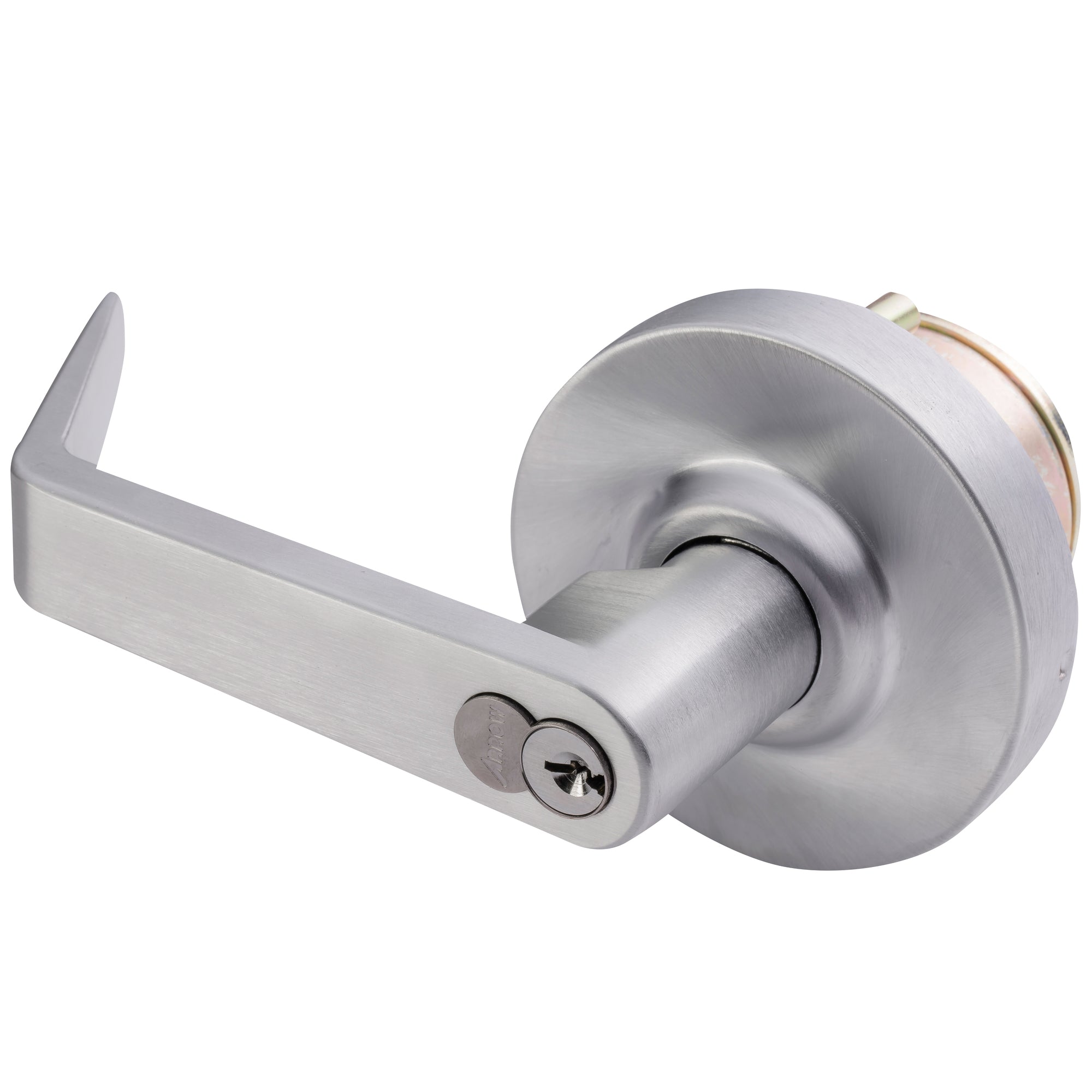

Arrow SRX87 Exit Device Trim, Classroom Function, Sierra Lever with Rose, Satin Chrome SRX87 26D
Sale price
$99.87
Regular price $167.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is exit device trim from Arrow for use with exit devices on the outside of the door. It is a lever trim with a rose, built to Grade 1 under ANSI A156.3. It is listed in the Arrow S1150, S1250 and ED910 series. Part SRX87 26D is the Classroom Function, Sierra Lever with Rose version in Satin Chrome.
- Classroom Function
- Sierra Lever with Rose
- Finish 26D Satin Chrome
- Grade 1
- ANSI A156.3, Grade 1, ANSI A117.1, UL Listed
- Part number SRX87 26D
| PRODUCT SPECS | |
|---|---|
| SKU | SRX87 26D |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Arrow |
| Series | S1150/S1250/ED910 Series |
| Application | For use with Arrow S1150/S1250 & ED910 Exit Devices |
| Certification | ANSI A156.3, Grade 1, ANSI A117.1, UL Listed |
| Commercial/Residential | Commercial |
| Country of Origin | South Korea |
| Grade | Grade 1 |
| Product Warranty | 5 Year Warranty |
| UOM | 1 |
| PRODUCT FINISH | |
|---|---|
| Finish | US26D |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Base Material | Brass Bronze |
| Cylinder Type | Conventional |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Electronic | No |
| Function | Classroom |
| Includes Cylinder(s)? | Yes |
| Keyway | C Keyway |
| Lever/Knob/Pull | Lever |
| Lever/Knob/Pull Design | SR |
| Maximum Door Thickness (in) | 1-3/4" |
| Minimum Door Thickness (in) | 1-3/4" |
| Projection (in) | 2-9/16" |
| Rose/Escutcheon | Rose |
| Rose/Escutcheon Dimensions (in) | 3-11/32" |
| Selling Quantity | 1 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 5.5 |
| Box Height (#) | 4 |
| Box Weight (#) | 2.5 |
| Box Width (#) | 7 |
