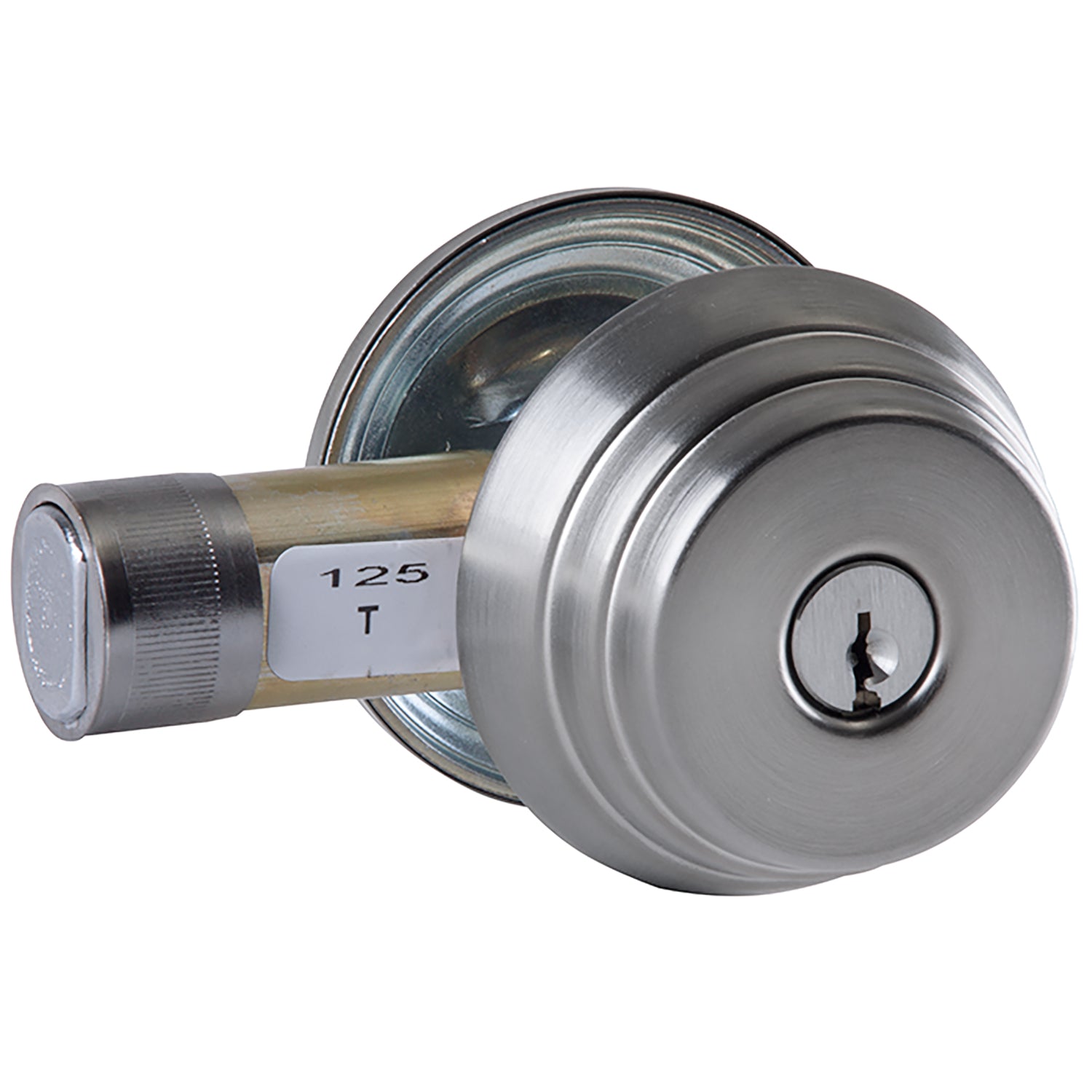

Arrow E61 Grade 2 Single Cylinder Deadlock, Conventional Cylinder, Field Reversible, Satin Chrome E61 26D
Sale price
$54.34
Regular price $95.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
The Arrow E61 is a Grade 2 single cylinder deadbolt for swinging doors. It is field reversible, so one lock suits doors of either hand. It is built for entry doors that need a keyed deadbolt. Part E61 26D is the Conventional Cylinder, Field Reversible version in Satin Chrome.
- Conventional Cylinder
- Field Reversible
- Finish 26D Satin Chrome
- Grade 2
- ANSI A156.5, Grade 2, UL Listed
- Part number E61 26D
| PRODUCT SPECS | |
|---|---|
| SKU | E61 26D |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Arrow |
| Series | E Series |
| Certification | ANSI A156.5, Grade 2, UL Listed |
| Commercial/Residential | Commercial |
| Country of Origin | Mexico |
| Grade | Grade 2 |
| Product Warranty | 1 Year Warranty |
| UOM | 1 |
| UPC | 840067637463 |
| PRODUCT FINISH | |
|---|---|
| Finish | US26D |
| Finish Description | Satin Chrome |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 2-3/8" |
| Base Material | Brass Bronze |
| Bore Hole Diameter (in) | 2-1/8" |
| Can Be Keyed | Yes |
| Cylinder Type | Conventional |
| Deadbolt Throw (in) | 1" |
| Door Handing | Non-handed |
| Door Range (Thickness) | 1-3/8" - 1-3/4" |
| Electronic | No |
| Function | Single Cylinder |
| Includes Cylinder(s)? | Yes |
| Interior/Exterior | Interior/Exterior |
| Keyway | A Keyway |
| Latch Bore Diameter (in) | 1" |
| Latch Description | Square Corner |
| Latch Dimensions | 1-1/8" x 2-1/4" |
| Latch Number | 141 |
| Maximum Door Thickness (in) | 1-3/4" |
| Minimum Door Thickness (in) | 1-3/8" |
| Number of Keys | 2 |
| Number of Pins | 6 |
| Selling Quantity | 1 |
| Strike Description | Rectangle Strike |
| Strike Dimensions | 1-1/8" x 2-3/4" |
| Strike Number | 346 |
| PRODUCT DIMENSIONS |
|---|
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 4.5 |
| Box Height (#) | 3 |
| Box Weight (#) | 1.5 |
| Box Width (#) | 4 |
