$107.54

SKU D61 26D IC

Skip to product information
Arrow D61 26D IC
  • Arrow D61 26D IC

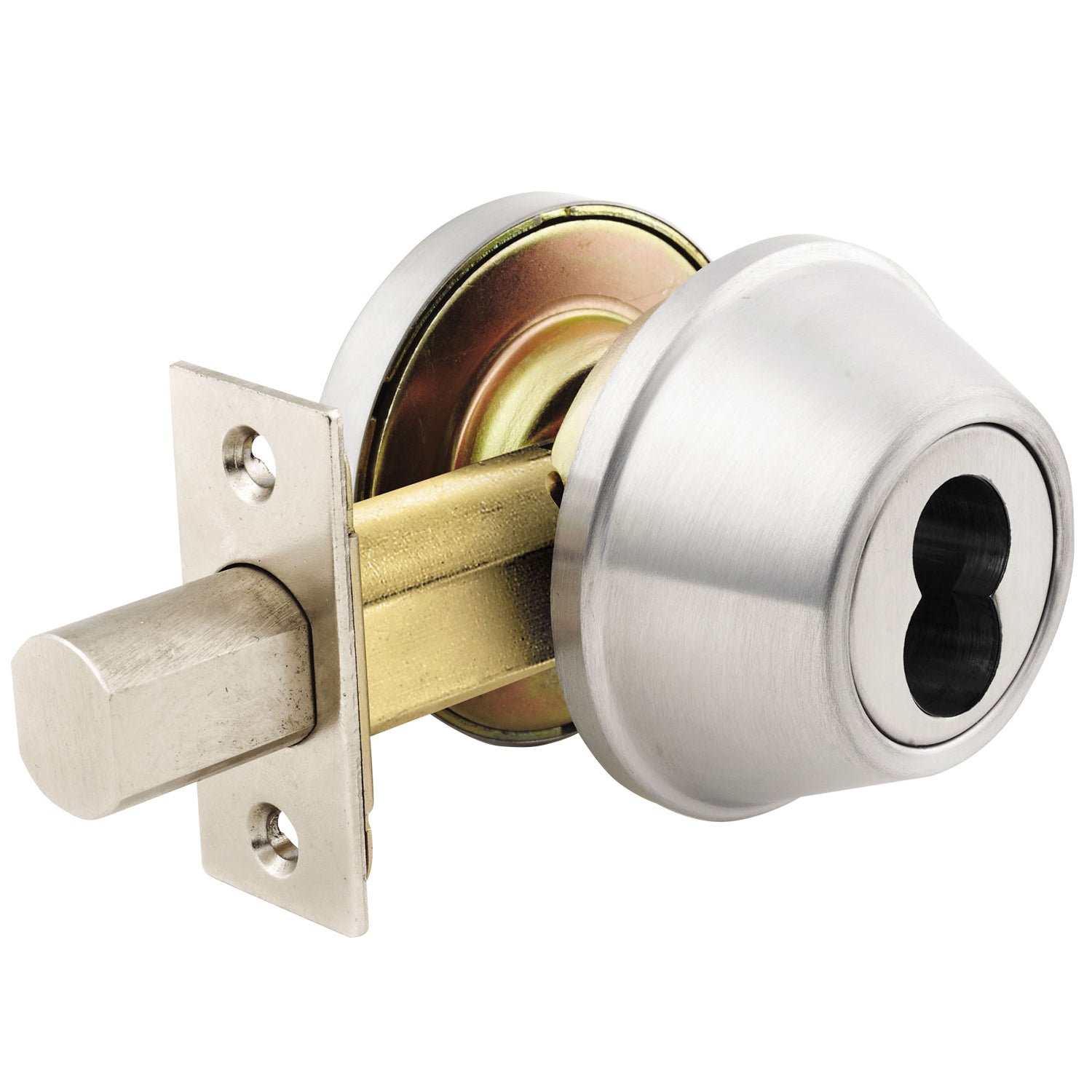

Arrow D61 Deadbolt, Single Cylinder, SFIC Prep, Less Core, Satin Chrome D61 26D IC
ArrowSKU D61 26D IC

Arrow D61 Deadbolt, Single Cylinder, SFIC Prep, Less Core, Satin Chrome D61 26D IC

$107.54  $188.00

Free shipping on orders over $295.

  • Veteran-owned
  • Since 1989
  • Member of NARPM

Overview

The Arrow D61 is a single cylinder deadbolt for swinging doors. It adds a keyed throw bolt to an entry door in a standard deadbolt installation. We list it for property maintenance teams replacing worn deadbolts. Part D61 26D IC is the Single Cylinder, SFIC Prep, Less Core version in Satin Chrome.

  • Single Cylinder
  • SFIC Prep
  • Less Core
  • Finish 26D Satin Chrome
  • Grade 1
  • ANSI A156.5, Grade 1, UL Listed
  • Part number D61 26D IC
PRODUCT SPECS
SKU D61 26D IC
Parent Manufacturer Assa Abloy
Manufacturer Arrow
Series D Series
Certification ANSI A156.5, Grade 1, UL Listed
Commercial/Residential Commercial
Country of Origin Mexico
Grade Grade 1
Product Warranty 1 Year Warranty
UOM 1
UPC 840067636886
PRODUCT FINISH
Finish US26D
Finish Description Satin Chrome
TECHNICAL SPECS
Backset (in) 2-3/4"
Base Material Brass Bronze
Bore Hole Diameter (in) 2-1/8"
Can Be Keyed Yes
Cylinder Type SFIC Housing
Deadbolt Throw (in) 1"
Door Handing Non-handed
Door Range (Thickness) 1-3/8" - 1-3/4"
Electronic No
Function Single Cylinder
Includes Cylinder(s)? No
Interior/Exterior Interior/Exterior
Keyway Less Core
Latch Bore Diameter (in) 1"
Latch Description Square Corner
Latch Dimensions 1-1/8" x 2-1/4"
Latch Number 144
Maximum Door Thickness (in) 1-3/4"
Minimum Door Thickness (in) 1-3/8"
Number of Keys 2
Selling Quantity 1
Strike Description Rectangle Strike
Strike Dimensions 1-1/8" x 2-3/4"
Strike Number 346
PRODUCT DIMENSIONS
PACKAGE DIMENSIONS
Box Depth (#) 4
Box Height (#) 2.75
Box Weight (#) 2
Box Width (#) 3.75
