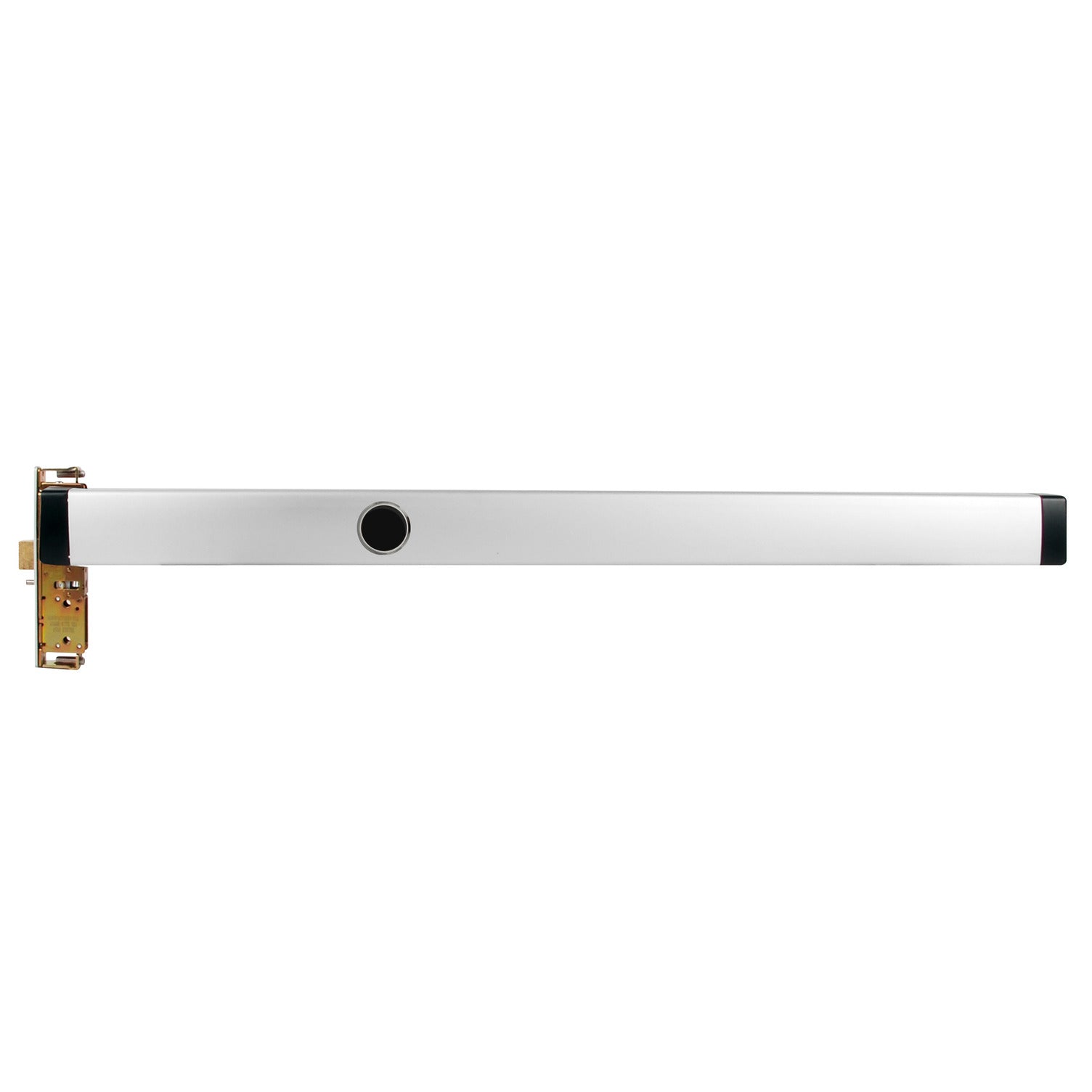

Adams Rite 8410C-38136 Life Safety Narrow Stile Mortise Exit Device, Cylinder Dogging, For Aluminum Applications, Satin Aluminum 8410C-38136
Sale price
$612.95
Regular price $1,025.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is a narrow stile mortise exit device from the Adams Rite 8400 Series. It is made for aluminum doors and is listed as UL305 panic hardware. It is a Grade 1 life safety device for egress on narrow stile openings. Part 8410C-38136 is the Cylinder Dogging, For Aluminum Applications, 36 In., LHR version in Satin Aluminum.
- Cylinder Dogging
- For Aluminum Applications
- 36 In.
- LHR
- Finish 628 Satin Aluminum
- Grade 1
- UL305 Panic Hardware
- Part number 8410C-38136
| PRODUCT SPECS | |
|---|---|
| SKU | 8410C-38136 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Adams Rite |
| Series | 8400 Series |
| Certification | UL305 Panic Hardware |
| Commercial/Residential | Commercial |
| Country of Origin | China |
| Fire Rated | No |
| Grade | Grade 1 |
| Product Warranty | 5 Year Warranty |
| Type | Mortise Exit Device |
| UOM | 1 |
| PRODUCT FINISH | |
|---|---|
| Finish | 628 |
| Finish Description | Aluminum |
| TECHNICAL SPECS | |
|---|---|
| Backset (in) | 1-1/8" |
| Base Material | Aluminum |
| Center Case Dimensions | Not Applicable |
| Cylinder Type | Mortise Cylinder with MS CAM |
| Dogging Option | Yes |
| Dogging Type | Cylinder Dogging |
| Door Handing | Left Hand Reverse |
| Door Height (in) | Not Applicable |
| Door Material | Aluminum |
| Door Range (Thickness) | 1-3/4" - 1-3/4" |
| Door Width Maximum (#) | 36 |
| Door Width Minimum (#) | 30 |
| Electronic | No |
| End Cap Material | Aluminum |
| Function | Exit Only |
| Includes Cylinder(s)? | No |
| Keyway | Not Applicable |
| Latch Description | Dead Latch |
| Latch Throw (in) | 3/4" |
| Maximum Door Thickness (in) | 1-3/4" |
| Minimum Door Thickness (in) | 1-3/4" |
| Minimum Stile (in) | 2" |
| Option 1 | (C) Cylinder Dogging |
| Projection (in) | 2-5/8" |
| Screw Pack | Machine Screws |
| Selling Quantity | 1 |
| Strike Description | ASA Strike |
| Strike Number | 8455 |
| PRODUCT DIMENSIONS | |
|---|---|
| Product Width (in) | 36" |
| PACKAGE DIMENSIONS |
|---|
