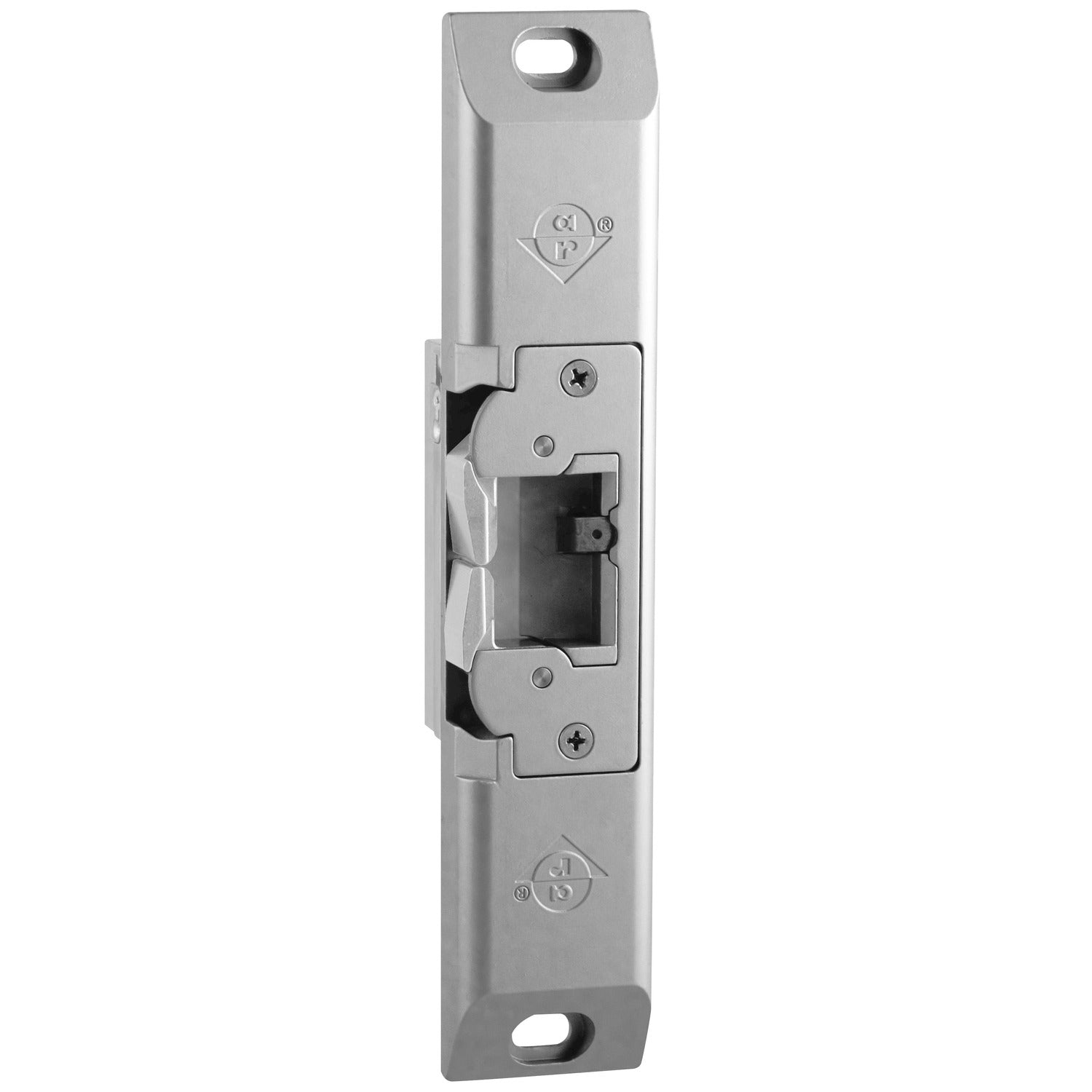

Adams Rite 74R1-130 Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Rim Exit Devices, Satin Aluminum Ritecoat Paint 74R1-130
Sale price
$268.81
Regular price $490.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This electric strike is built for rim exit devices and mounts in aluminum, hollow metal or wood door frames. It can be set in the field for fail safe or fail secure operation. It is listed to ANSI/BHMA A156.31, Grade 1. Part 74R1-130 is the Field Selectable (Fail Safe/Fail Secure), For Rim Exit Devices, For Aluminum, Hollow Metal or Wood Applications, 9 In. X 1-3/4 In. Faceplate, 12, 16, 24 VAC/DC version in Satin Aluminum Ritecoat Paint.
- Field Selectable (Fail Safe/Fail Secure)
- For Rim Exit Devices
- For Aluminum
- Hollow Metal or Wood Applications
- 9 In. X 1-3/4 In. Faceplate
- 12
- 16
- 24 VAC/DC
- Finish 130 Satin Aluminum Ritecoat Paint
- Grade 1
- ANSI/BHMA A156.31, Grade 1
- Part number 74R1-130
| PRODUCT SPECS | |
|---|---|
| SKU | 74R1-130 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Adams Rite |
| Series | 74R1 Series |
| Application | For RIM Exit Devices with 3/4" Pullman Type Latchbolts |
| Certification | ANSI/BHMA A156.31, Grade 1 |
| Fire Rated | No |
| Grade | Grade 1 |
| Product Warranty | Limited Warranty |
| UPC | 0888512104054 |
| PRODUCT FINISH | |
|---|---|
| Finish | 130 |
| TECHNICAL SPECS | |
|---|---|
| Current | 163mA @ 12AC, 440mA @ 12 DC, 228mA @ 16 AC, 458mA @ 16 DC*, 84mA @ 24 AC, 230mA @ 24 VDC Current |
| Door Handing | Non-handed |
| Door Range (Thickness) | - |
| Frame Material | Metal/Wood |
| FS/FSE Mode | Fail Safe/Fail Secure |
| Latch Throw (in) | 3/4" |
| Static Holding Strength (lbs) | 1500 |
| Voltage | 12, 16, 24 VAC/VDC Voltage |
| PRODUCT DIMENSIONS | |
|---|---|
| Dimensions | 1-3/4" x 9" |
| PACKAGE DIMENSIONS |
|---|
