Adams Rite 7440M628 Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Satin Aluminum 7440M628
Sale price
$268.81
Regular price $490.00
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview

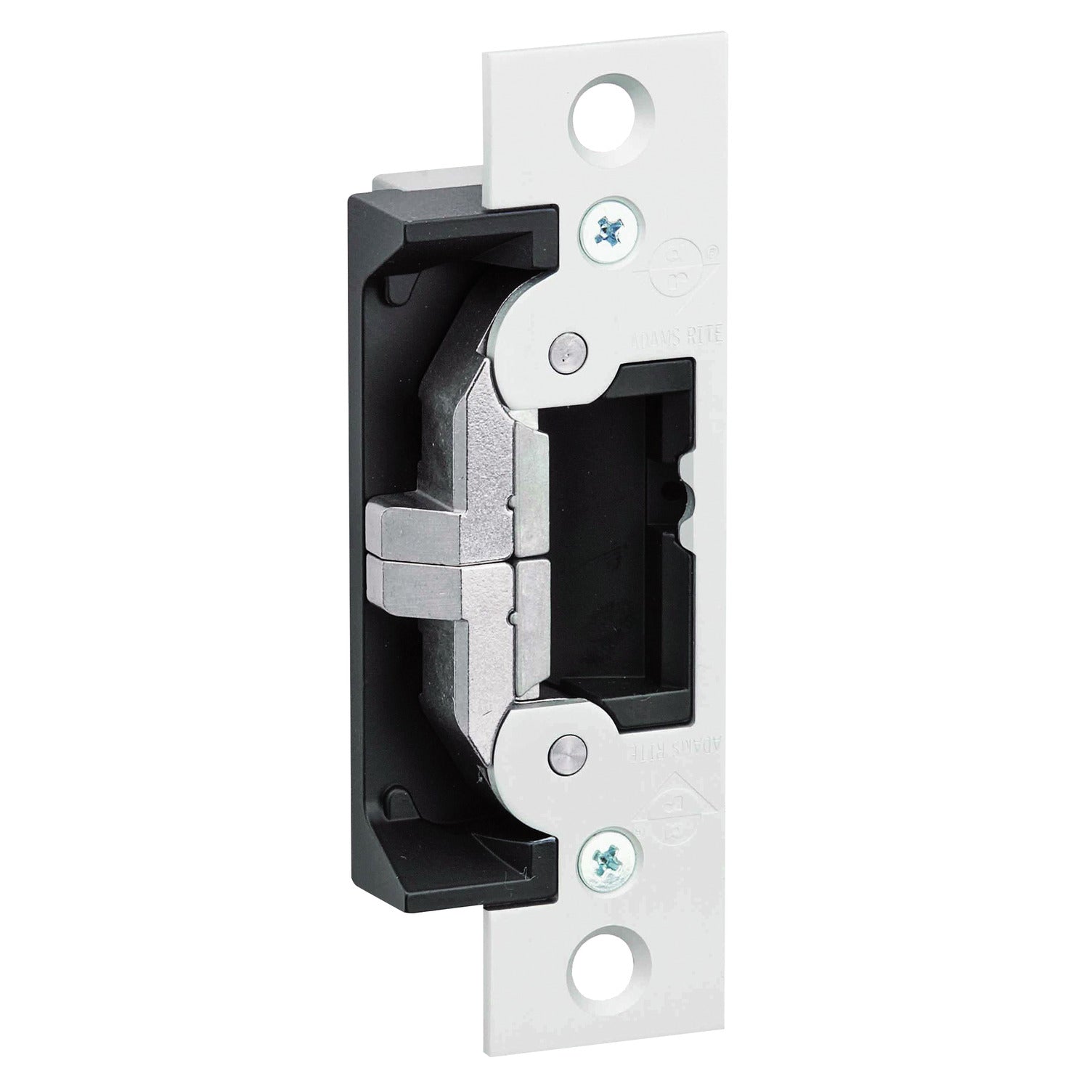

This is an Adams Rite electric strike for aluminum, hollow metal or wood door frames. It has a flat faceplate with square corners and can be set in the field for fail safe or fail secure operation. It is certified to ANSI/BHMA A156.31, Grade 1. Part 7440M628 is the Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 4-7/8 In. X 1-1/4 In. Flat Faceplate with Square Corners, 12, 16, 24 VAC/DC, Monitored version in Satin Aluminum.
- Field Selectable (Fail Safe/Fail Secure)
- For Aluminum
- Hollow Metal or Wood Applications
- 4-7/8 In. X 1-1/4 In. Flat Faceplate with Square Corners
- 12
- 16
- 24 VAC/DC
- Monitored
- Finish 628 Satin Aluminum
- Grade 1
- ANSI/BHMA A156.31, Grade 1
- Part number 7440M628
| PRODUCT SPECS | |
|---|---|
| SKU | 7440M628 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Adams Rite |
| Series | 7400 Series |
| Application | For DeadLatches or Cylindrical Locksets with 1/2" to 5/8" Throw |
| Certification | ANSI/BHMA A156.31, Grade 1 |
| Country of Origin | United States |
| Fire Rated | No |
| Grade | Grade 1 |
| Product Warranty | Limited Warranty |
| UPC | 0888512104016 |
| PRODUCT FINISH | |
|---|---|
| Finish | 628 |
| Finish Description | Aluminum |
| TECHNICAL SPECS | |
|---|---|
| Base Material | Aluminum |
| Current | 163mA @ 12AC, 440mA @ 12 DC, 228mA @ 16 AC, 458mA @ 16 DC*, 84mA @ 24 AC, 230mA @ 24 VDC Current |
| Door Handing | Non-handed |
| Door Range (Thickness) | - |
| Frame Material | Metal |
| FS/FSE Mode | Fail Safe/Fail Secure |
| Latch Throw (in) | 5/8" |
| Static Holding Strength (lbs) | 1500 |
| Voltage | 12, 16, 24 VAC/VDC Voltage |
| PRODUCT DIMENSIONS | |
|---|---|
| Dimensions | 1-1/4 x 4-7/8" |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 3 |
| Box Height (#) | 6 |
| Box Weight (#) | 2 |
| Box Width (#) | 3 |
