$196.40
SKU 7431-130

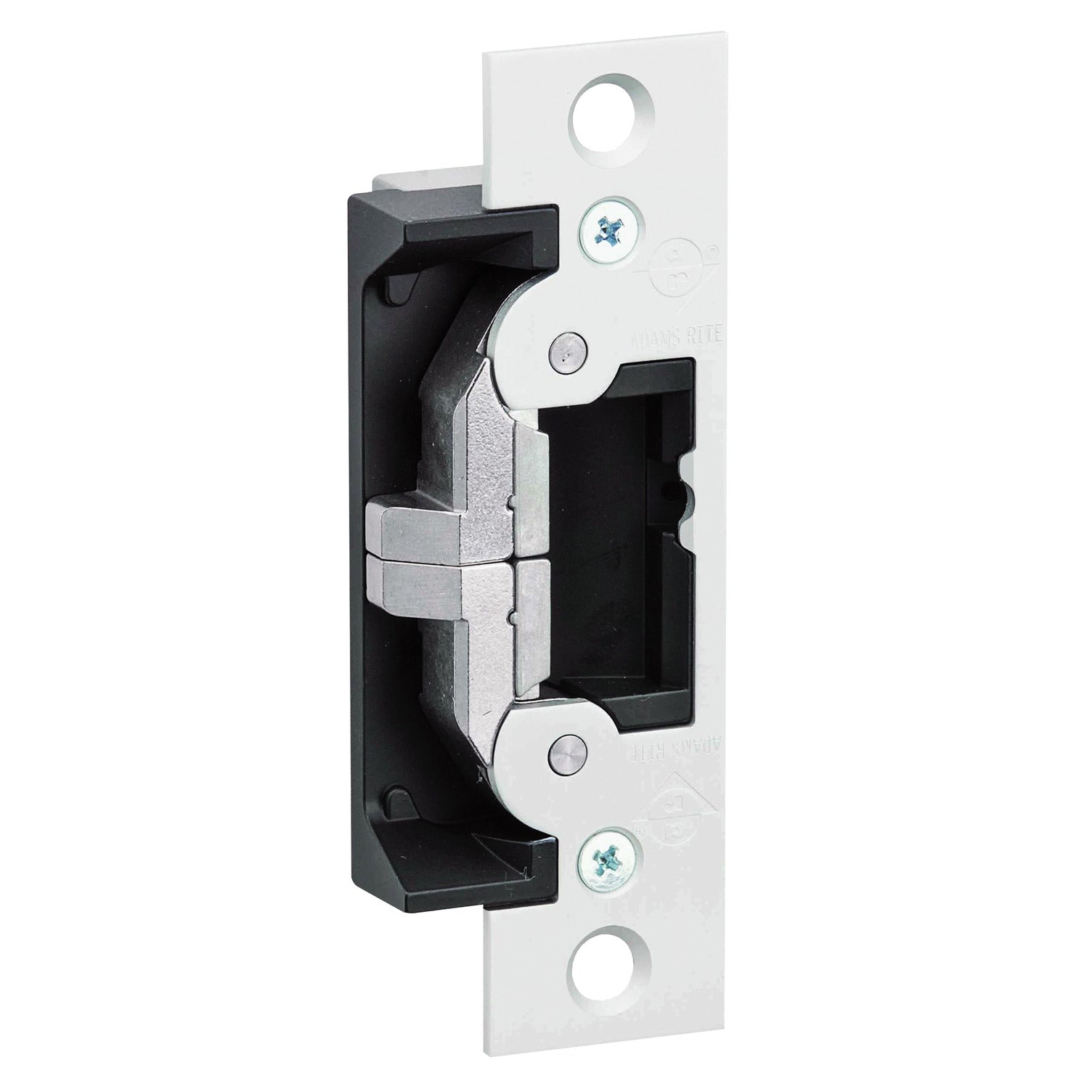

Adams Rite 7431-130 Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Satin Aluminum Ritecoat Paint 7431-130
Free shipping on orders over $295.
- Veteran-owned
- Since 1989
- Member of NARPM
Ordering for a whole property? Get a project quote.
Details
Overview
This is an electric strike for aluminum, hollow metal or wood door applications. It mounts in the door frame and releases the latch on an electric signal, so access can be controlled remotely. The radiused faceplate measures 6-7/8 in. by 1-1/4 in. and the strike is listed to ANSI/BHMA A156.31, Grade 1. Part 7431-130 is the Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Applications, 6-7/8 In. X 1-1/4 In. Radiused Faceplate, 12, 16, 24 VAC/DC version in Satin Aluminum Ritecoat Paint.
- Field Selectable (Fail Safe/Fail Secure)
- For Aluminum
- Hollow Metal or Wood Applications
- 6-7/8 In. X 1-1/4 In. Radiused Faceplate
- 12
- 16
- 24 VAC/DC
- Finish 130 Satin Aluminum Ritecoat Paint
- Grade 1
- ANSI/BHMA A156.31, Grade 1
- Part number 7431-130
| PRODUCT SPECS | |
|---|---|
| SKU | 7431-130 |
| Parent Manufacturer | Assa Abloy |
| Manufacturer | Adams Rite |
| Series | 7400 Series |
| Application | For DeadLatches or Cylindrical Locksets with 1/2" to 5/8" Throw |
| Certification | ANSI/BHMA A156.31, Grade 1 |
| Country of Origin | United States |
| Fire Rated | No |
| Grade | Grade 1 |
| Product Warranty | Limited Warranty |
| UPC | 0888512103972 |
| PRODUCT FINISH | |
|---|---|
| Finish | 130 |
| TECHNICAL SPECS | |
|---|---|
| Current | 163mA @ 12AC, 440mA @ 12 DC, 228mA @ 16 AC, 458mA @ 16 DC*, 84mA @ 24 AC, 230mA @ 24 VDC Current |
| Door Handing | Non-handed |
| Door Range (Thickness) | - |
| Frame Material | Metal |
| FS/FSE Mode | Fail Safe/Fail Secure |
| Latch Throw (in) | 5/8" |
| Static Holding Strength (lbs) | 1500 |
| Voltage | 12, 16, 24 VAC/VDC Voltage |
| PRODUCT DIMENSIONS | |
|---|---|
| Dimensions | 1-1/4 x 6-7/8" |
| PACKAGE DIMENSIONS | |
|---|---|
| Box Depth (#) | 3 |
| Box Height (#) | 6 |
| Box Weight (#) | 2 |
| Box Width (#) | 3 |
